Products
Steel and fire doors, roller shutters, high speed doors and industrial sectional doors.
The CUBIXY range covers 4 series and 8 products. Compare the key figures below, then open a series or product for its specifications, options and technical data.
Compare all products
Figures from each product's specification table; the steel fire door's rating is from its test report. A dash means the catalogue does not list the value.
| Product | Rating / performance | Max. width × height | Opening speed |
|---|---|---|---|
| Steel & Fire Door · 1 product | |||
| Steel & Fire Door |
| Hinged door · Sizes not listed in the catalogue | |
| Roller Shutter Door · 4 products | |||
| Wind-Resistant Roller Shutter Door |
| 8,000 × 7,000 mm | 0.1–0.15 m/s |
| EN Steel Insulated Fire Roller Shutter |
| Not specified | 0.1 m/s |
| UL Steel Fire Shutter Door |
| Not specified | 0.1 m/s |
| Steel Explosion-Proof Roller Shutter Door |
| Not specified | 0.1 m/s |
| High Speed Door · 2 products | |||
| PVC High Speed Door |
| 6,000 × 6,000 mm | 0.8–2.0 m/s |
| High Speed Spiral Door |
| 8,000 × 10,000 mm | 0.8–2.0 m/s |
| Industrial Sectional Door · 1 product | |||
| Industrial Sectional Door |
| 8,000 × 10,000 mm | 0.2 m/s |
Steel & Fire Door
Hinged steel and fire doors: galvanized steel, rockwool core, intumescent seals, fire-rated hardware. Single-leaf sample fire-tested to SNI 1741-2008.
- Fire, tested sample (SNI 1741-2008)
- 120 min

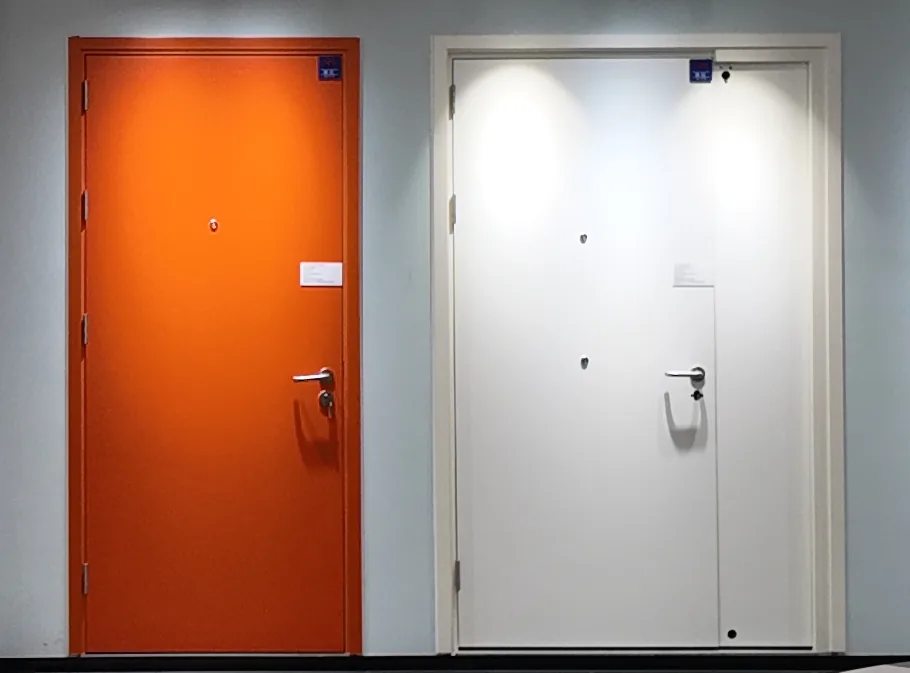

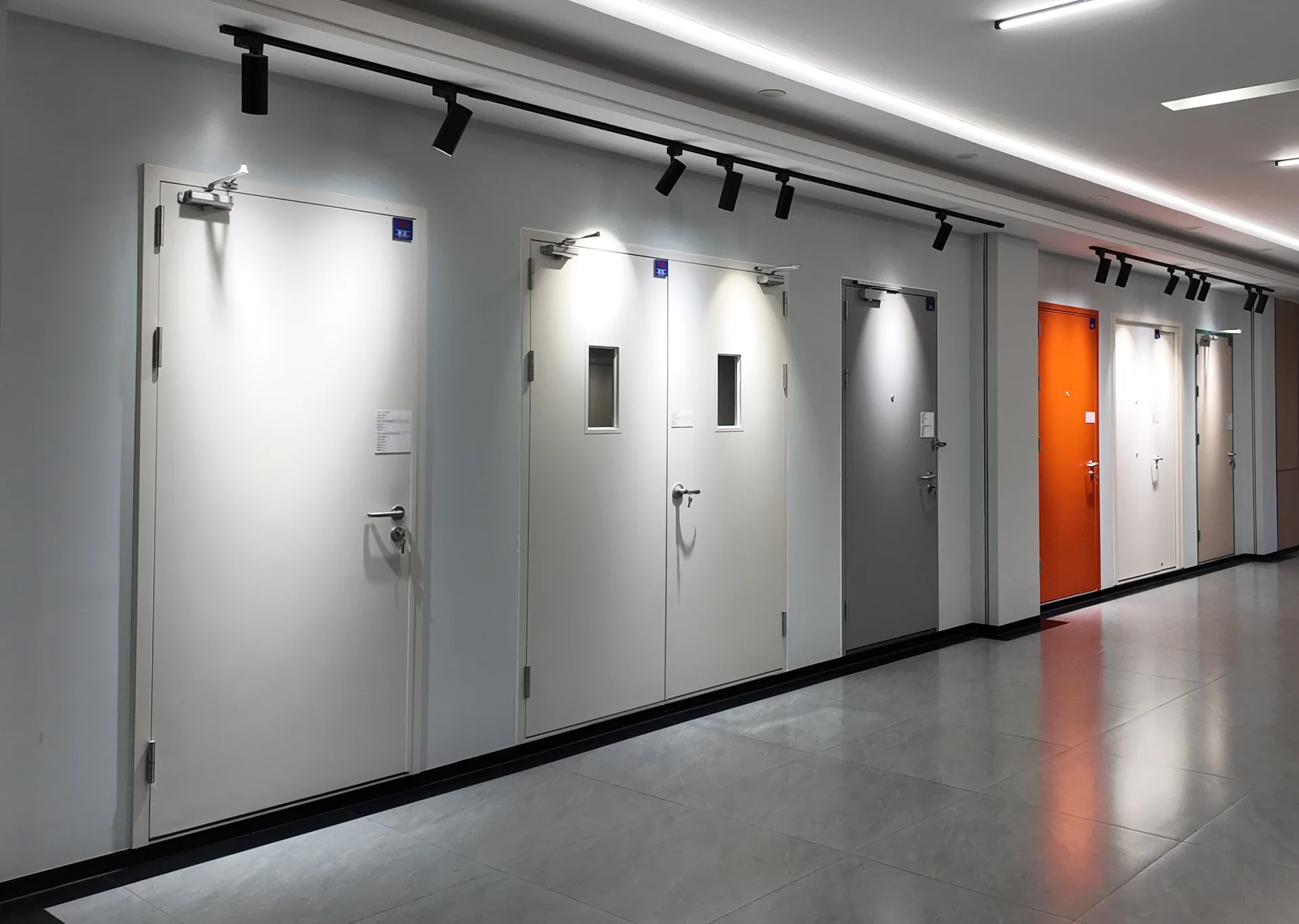

Steel & Fire Door
Steel doors and fire doors with galvanized steel frames and panels, rockwool cores, intumescent seals, fire-rated hardware and four glass options. Single-leaf sample tested to SNI 1741-2008: integrity and insulation 120 min.
- Fire, tested sample (SNI 1741-2008): 120 min

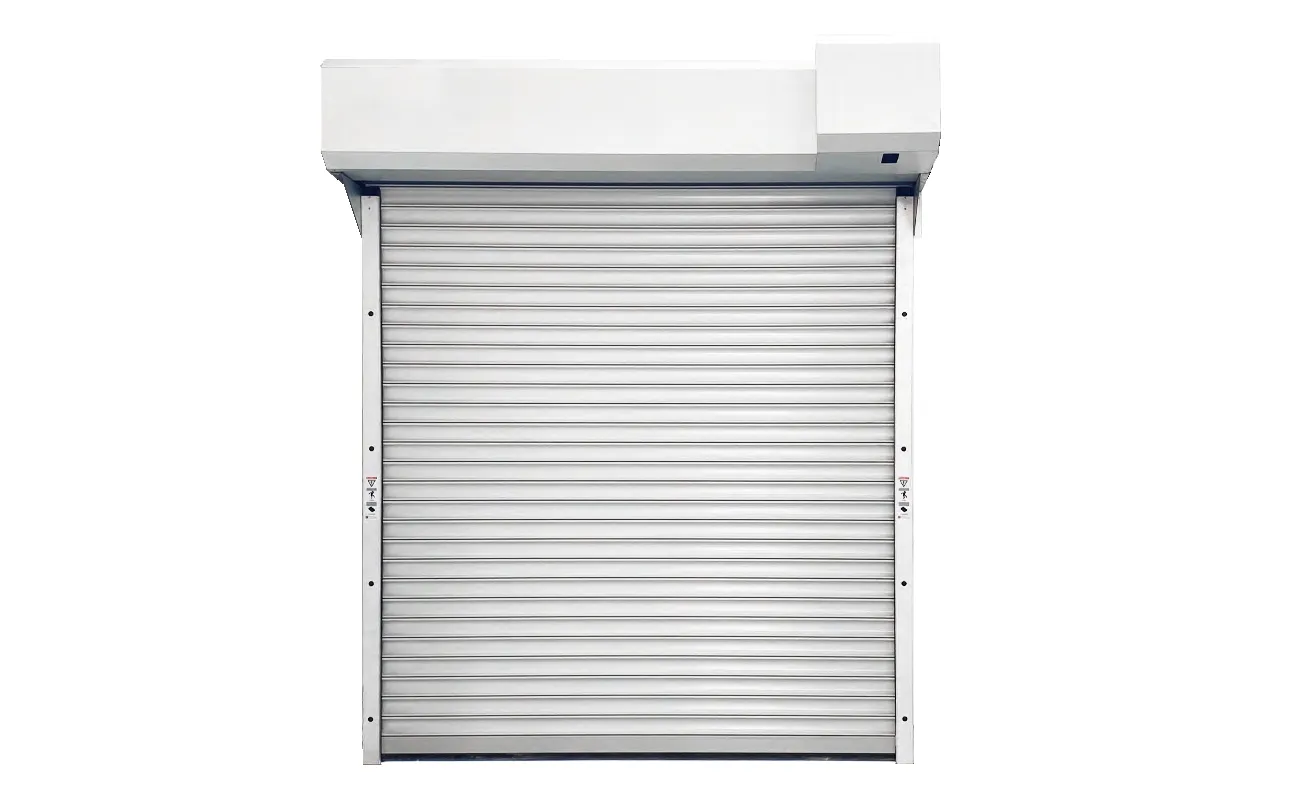

Roller Shutter Door
Space-saving roller shutters for security, weather and fire or explosion protection: wind-resistant, EN and UL fire-rated, and Ex IIC T4 explosion-proof models.
- Max. size
- 8,000 × 7,000 mm
- Fire resistance
- 120 / 180 / 240 min
- Explosion-proof grade
- Ex IIC T4

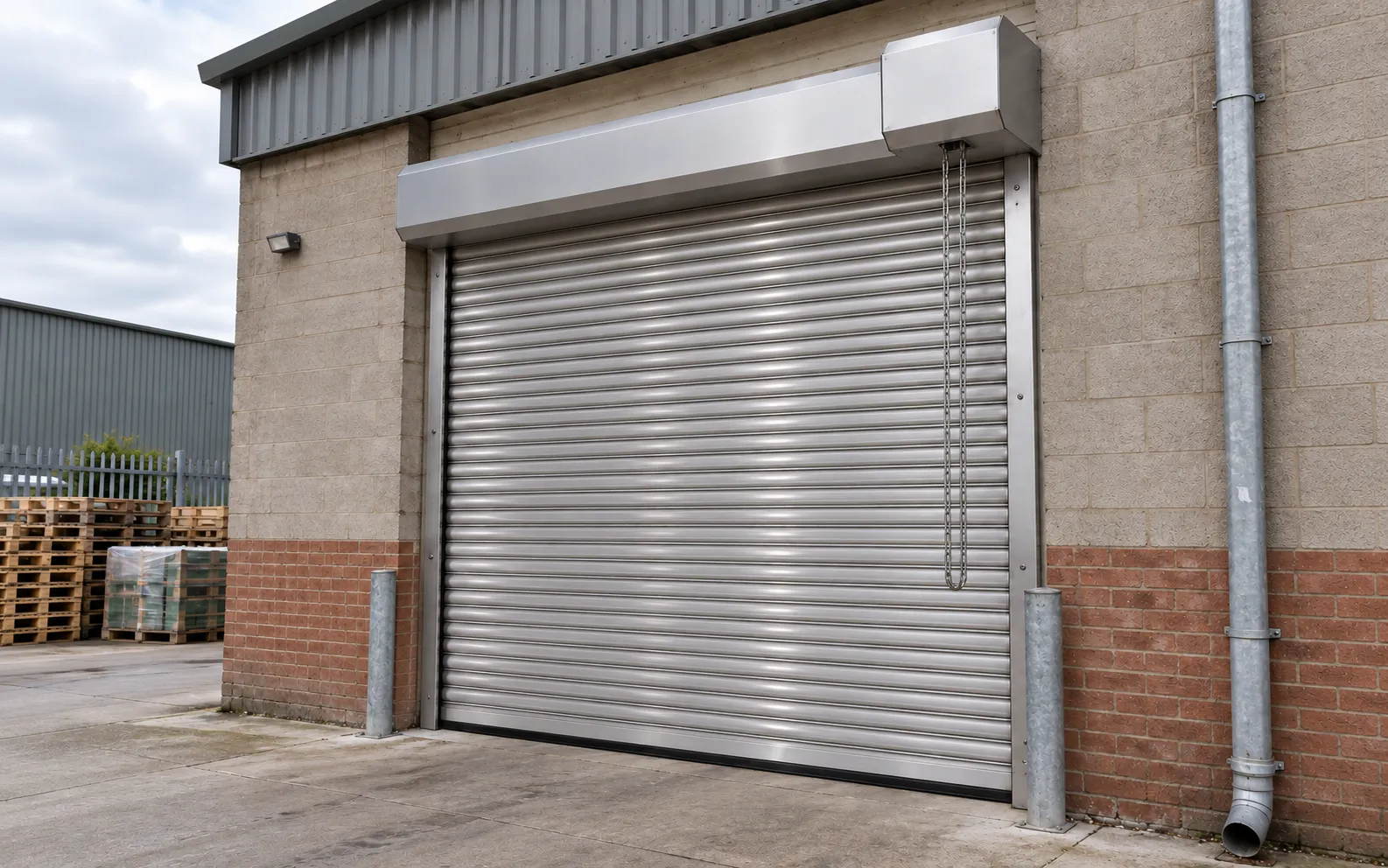

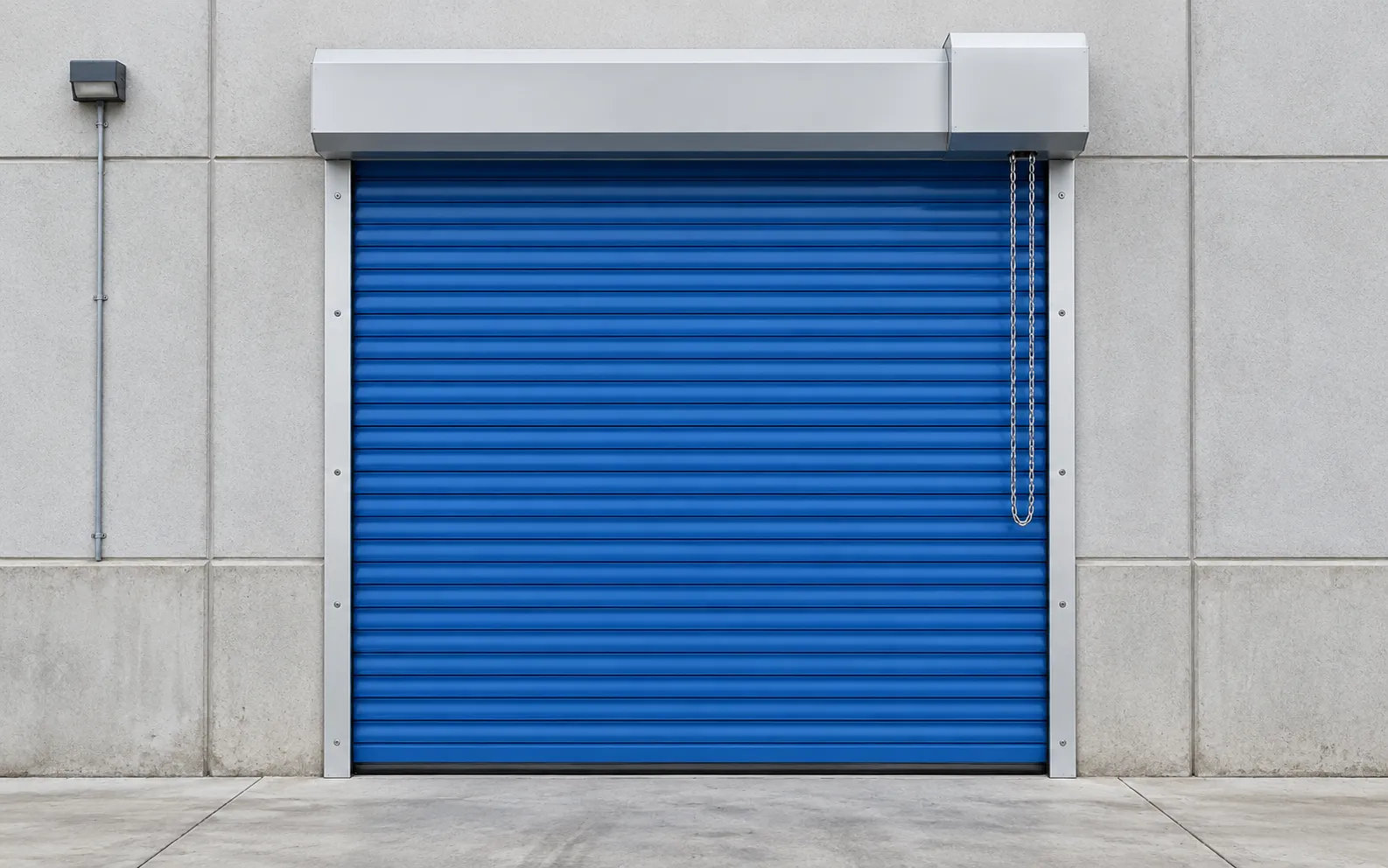

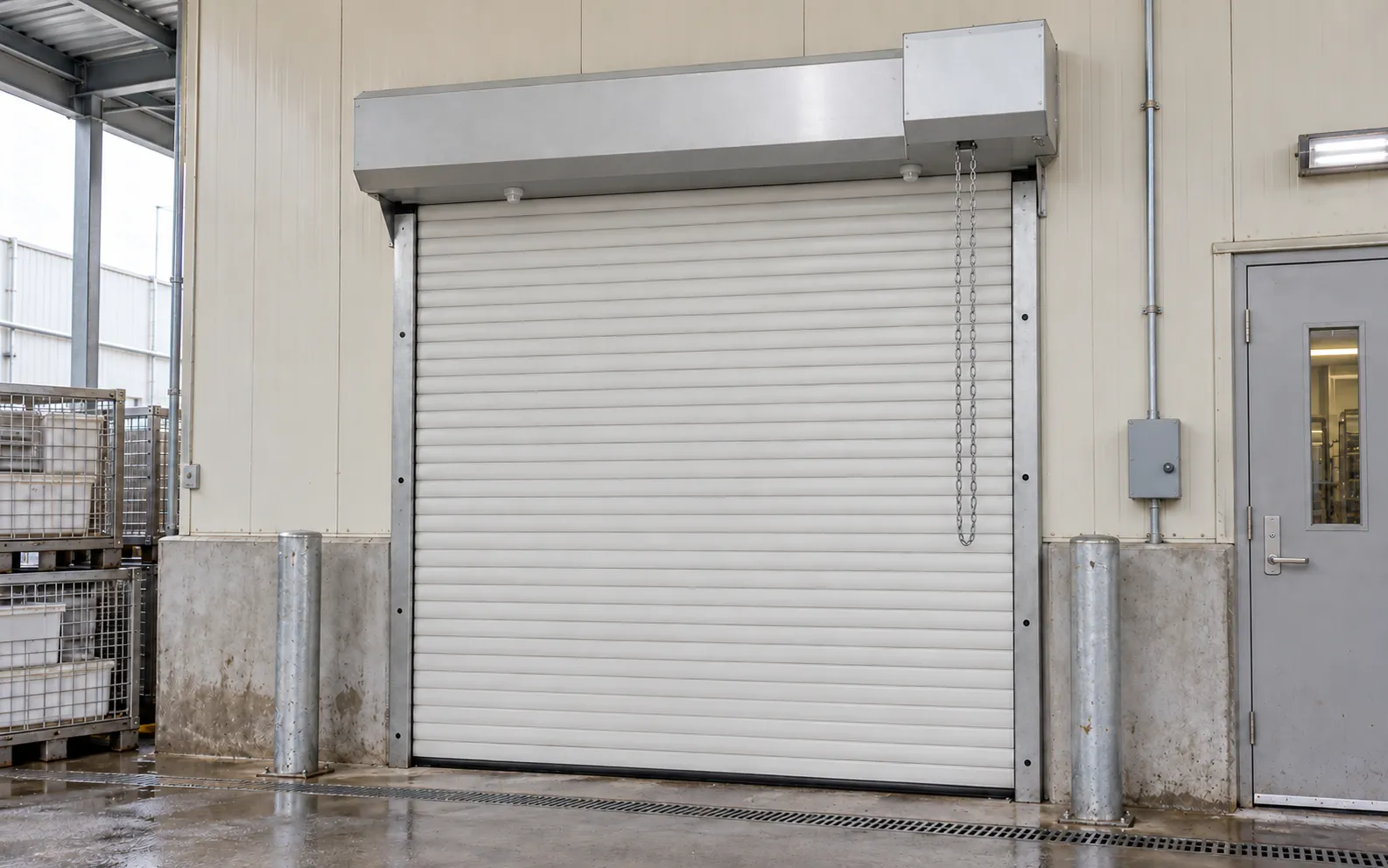

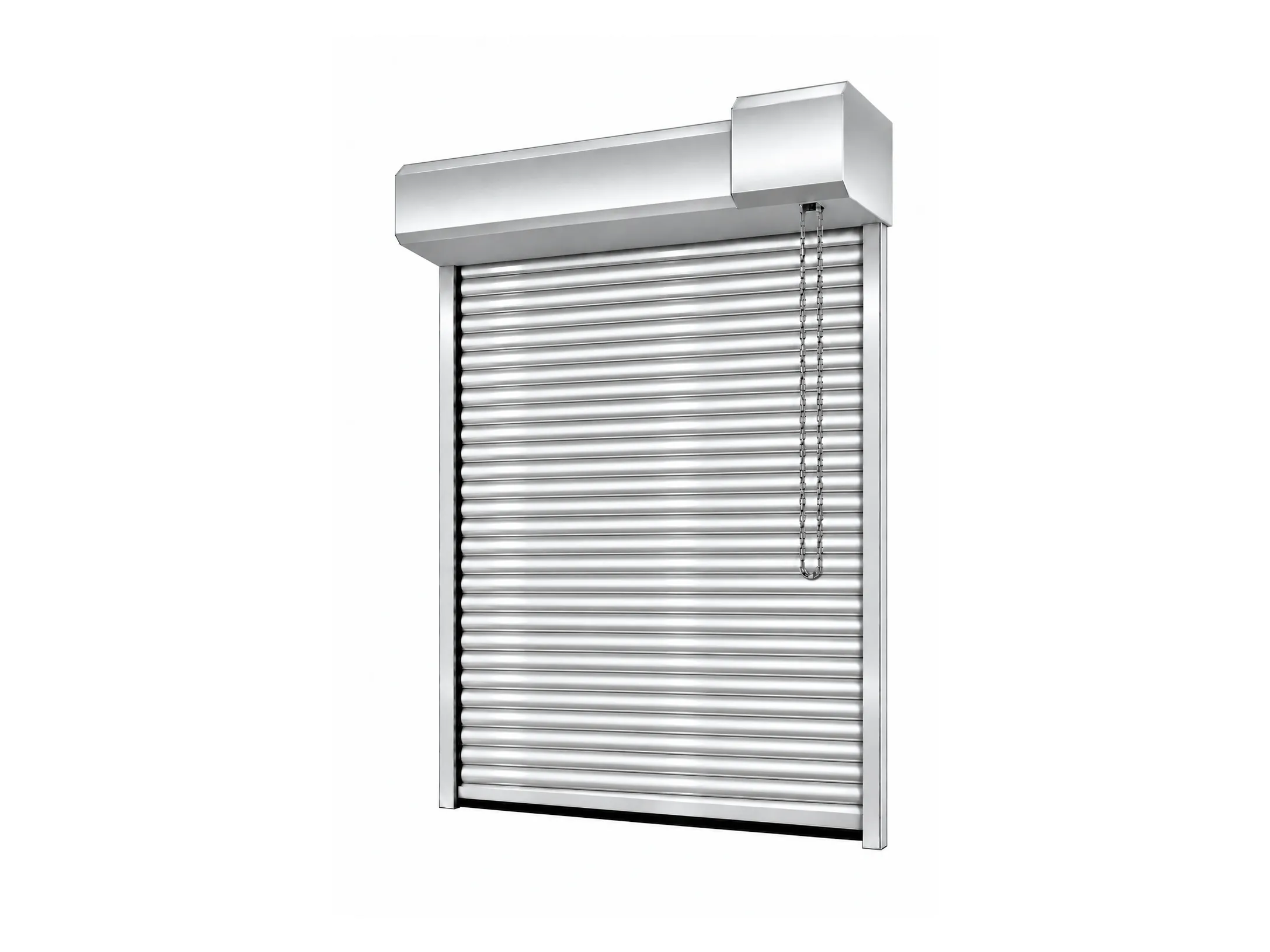

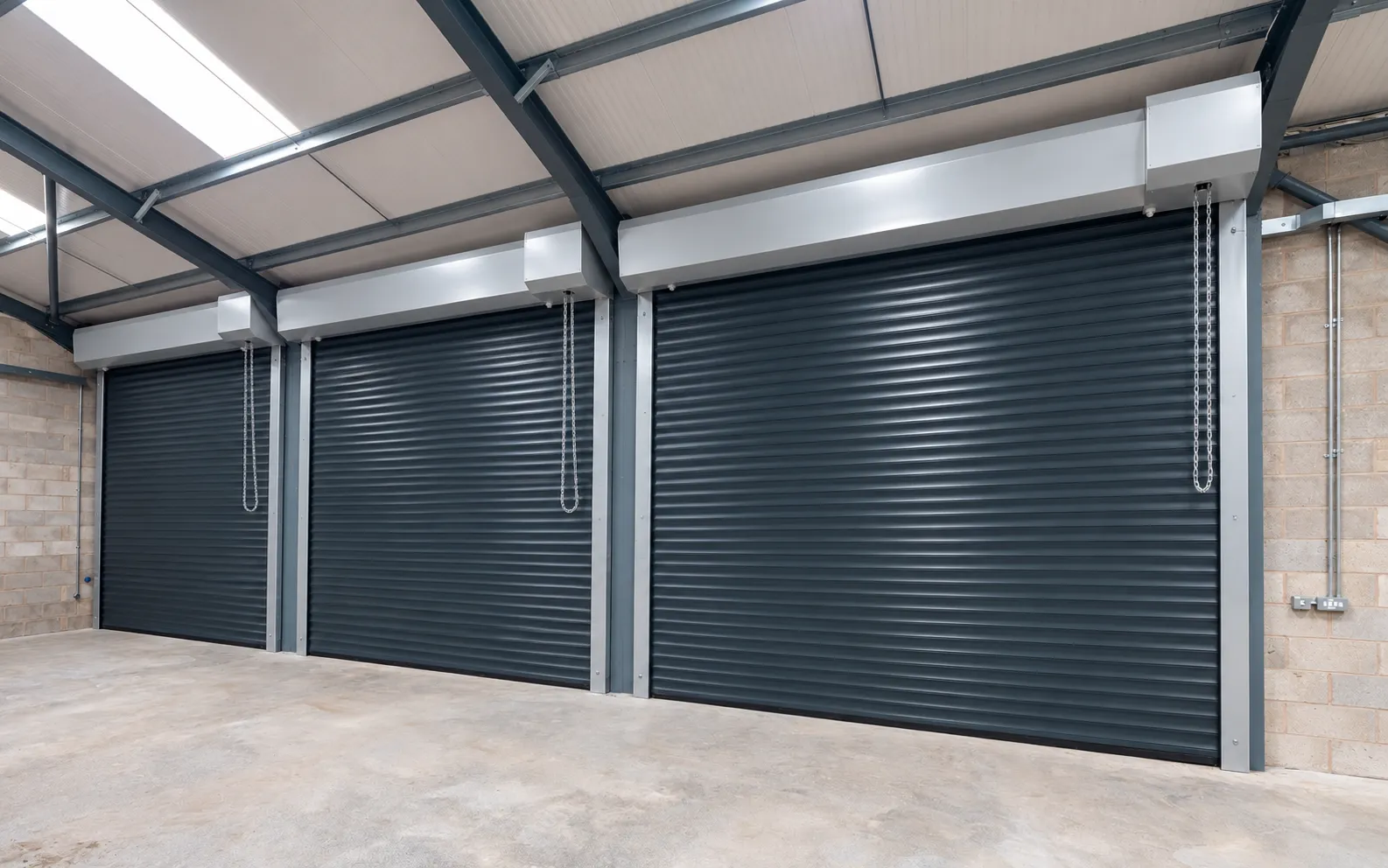

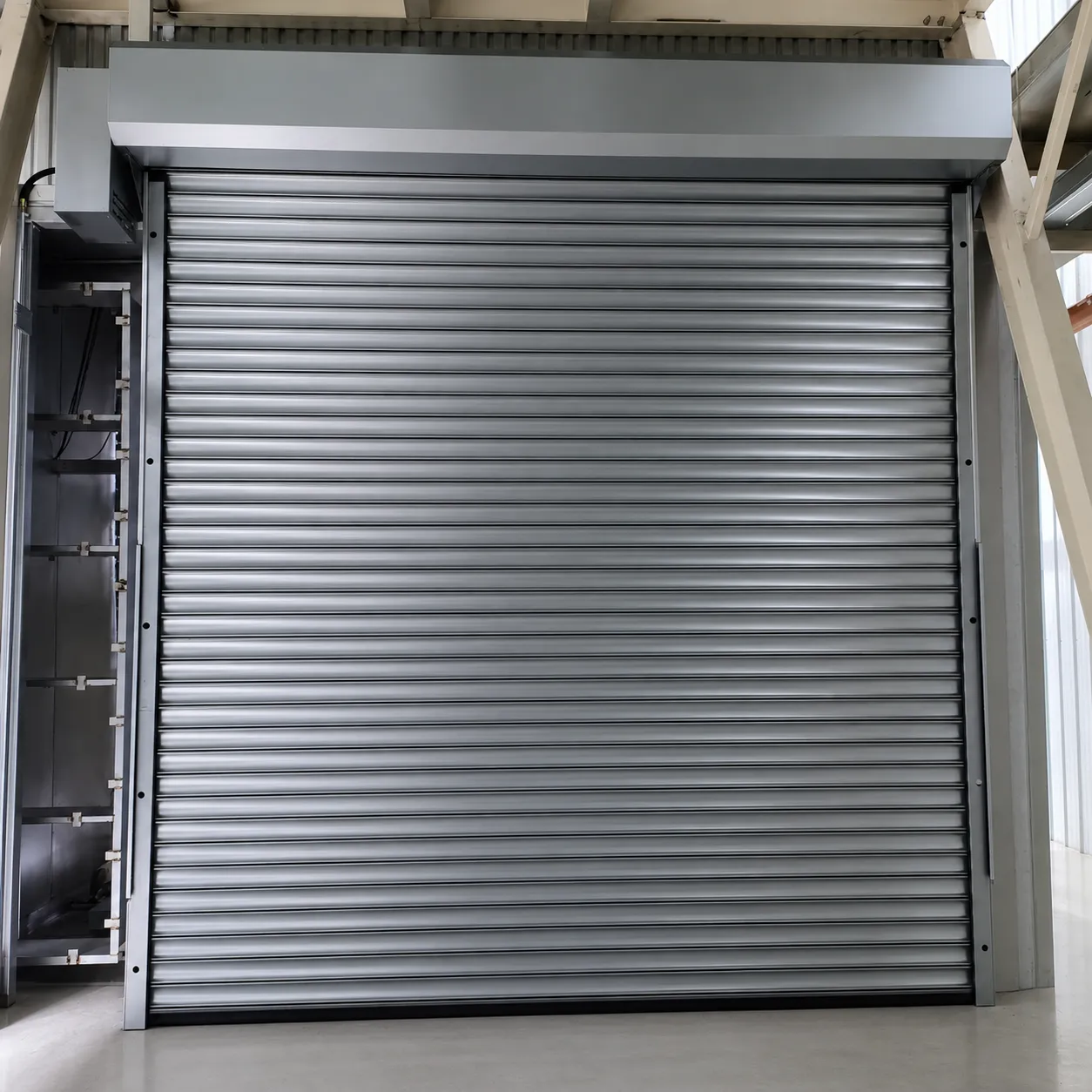

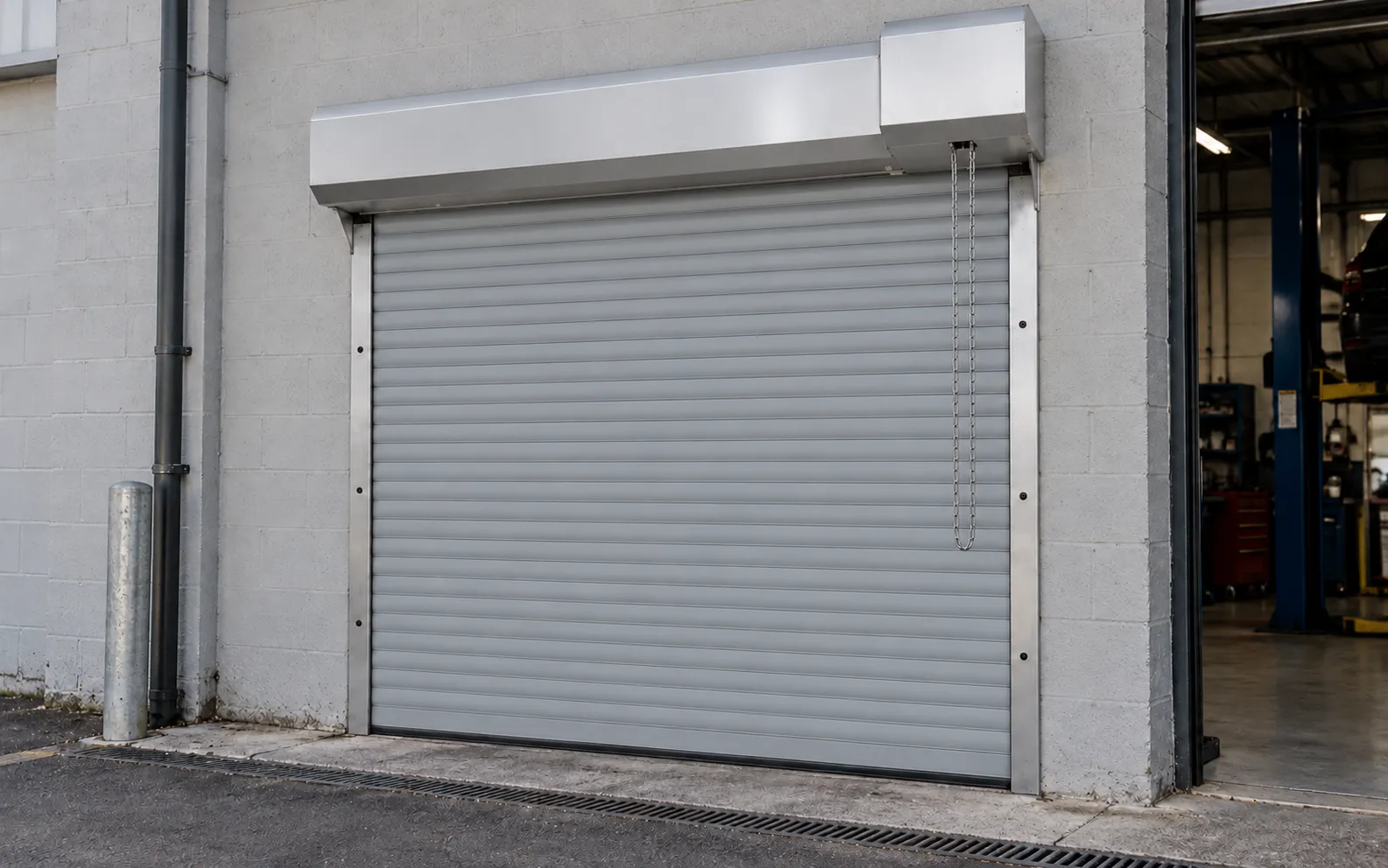

Wind-Resistant Roller Shutter Door
Wind-resistant roller shutter door up to 8,000 × 7,000 mm, with a design wind load of 0.7–1.6 kPa and steel, aluminum or stainless slats, for industrial buildings.
- Max. size: 8,000 × 7,000 mm
- Opening Speed: 0.1–0.15 m/s
- Design Wind Load: 0.7–1.6 kPa

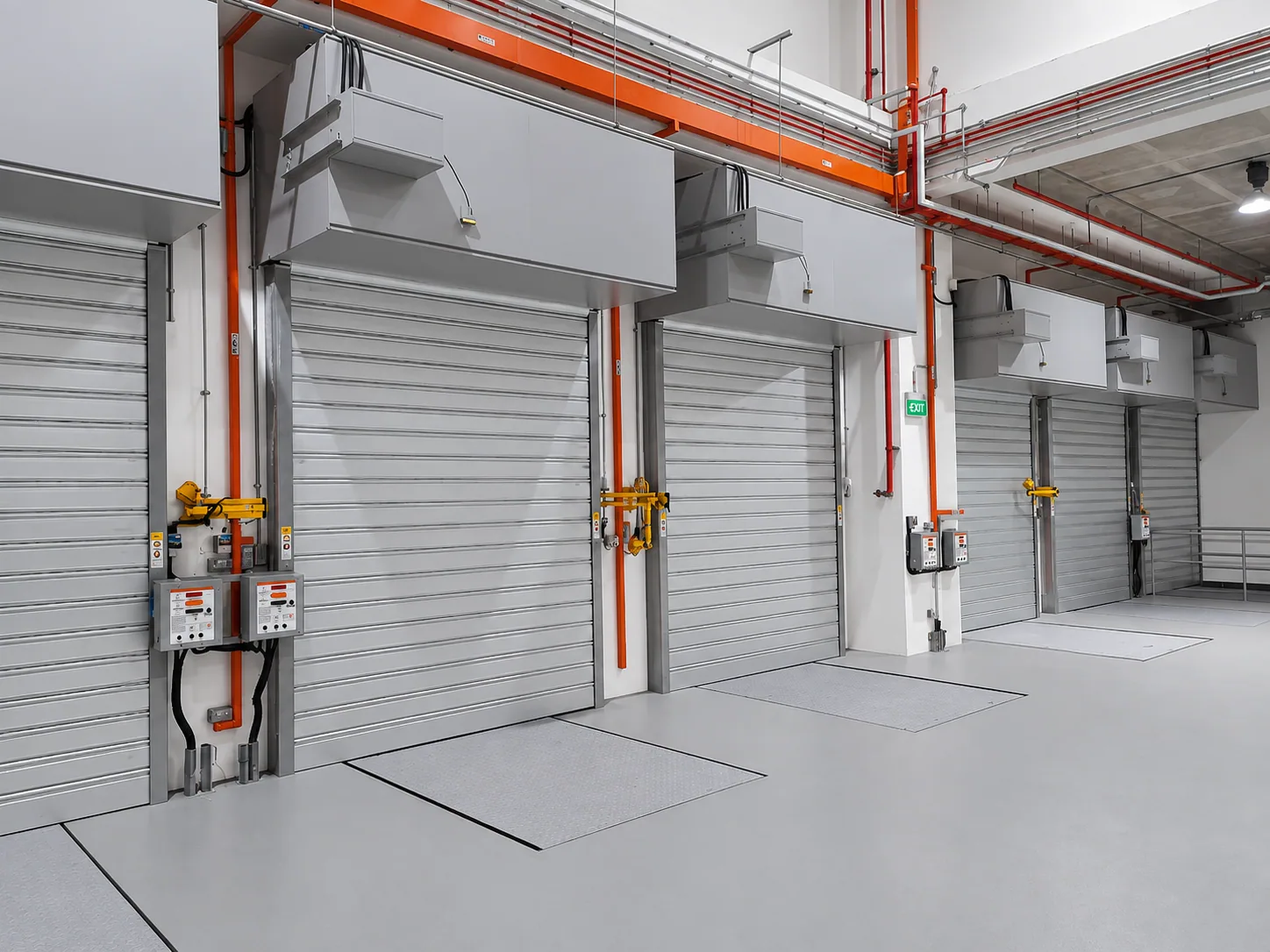

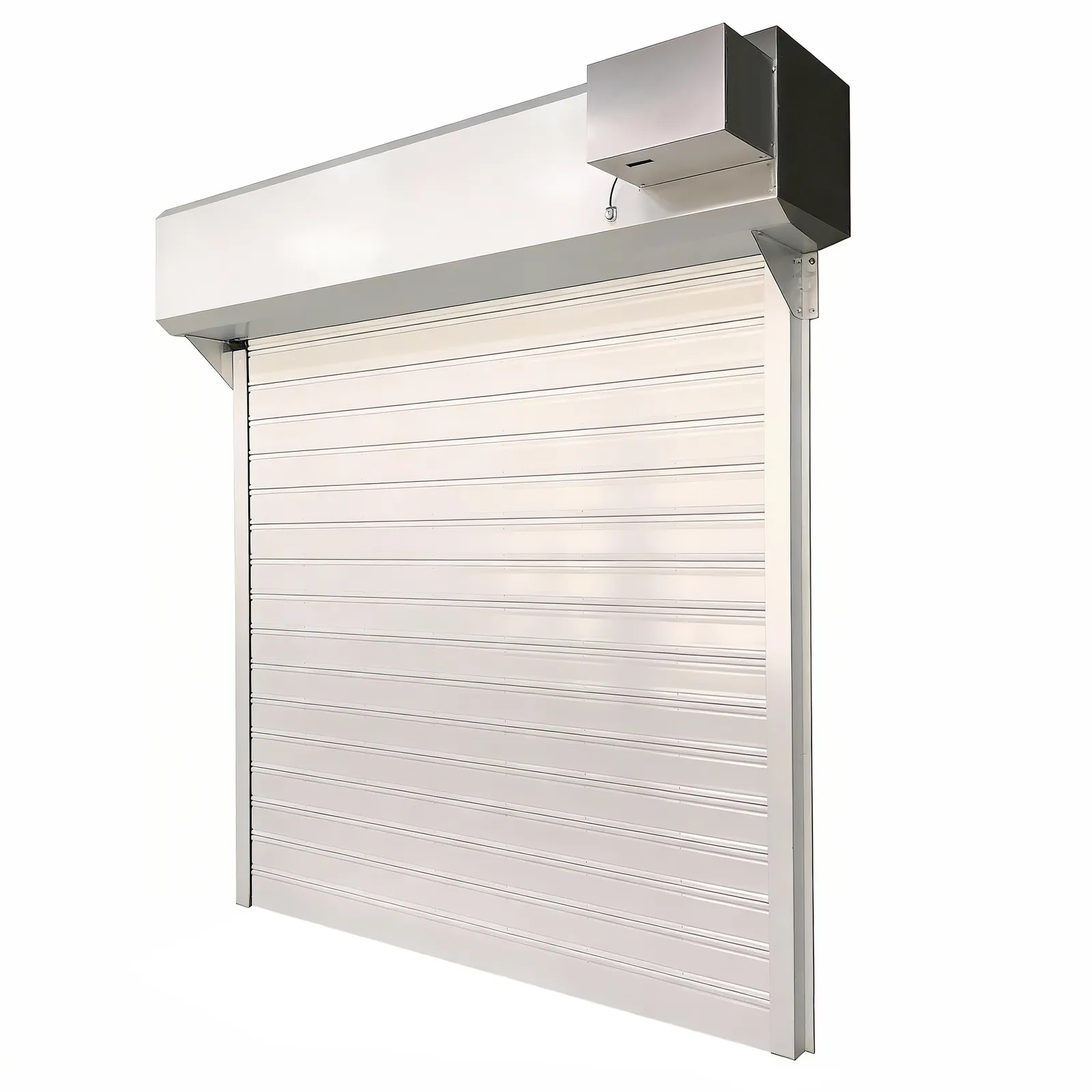

EN Steel Insulated Fire Roller Shutter
Steel insulated fire roller shutter rated to EN 1634-1 (EI 120 or EI 240) for fire compartmentation in industrial, commercial and public buildings.
- Fire Resistance Rating: ≥120 / 240 min
- Opening Speed: 0.1 m/s

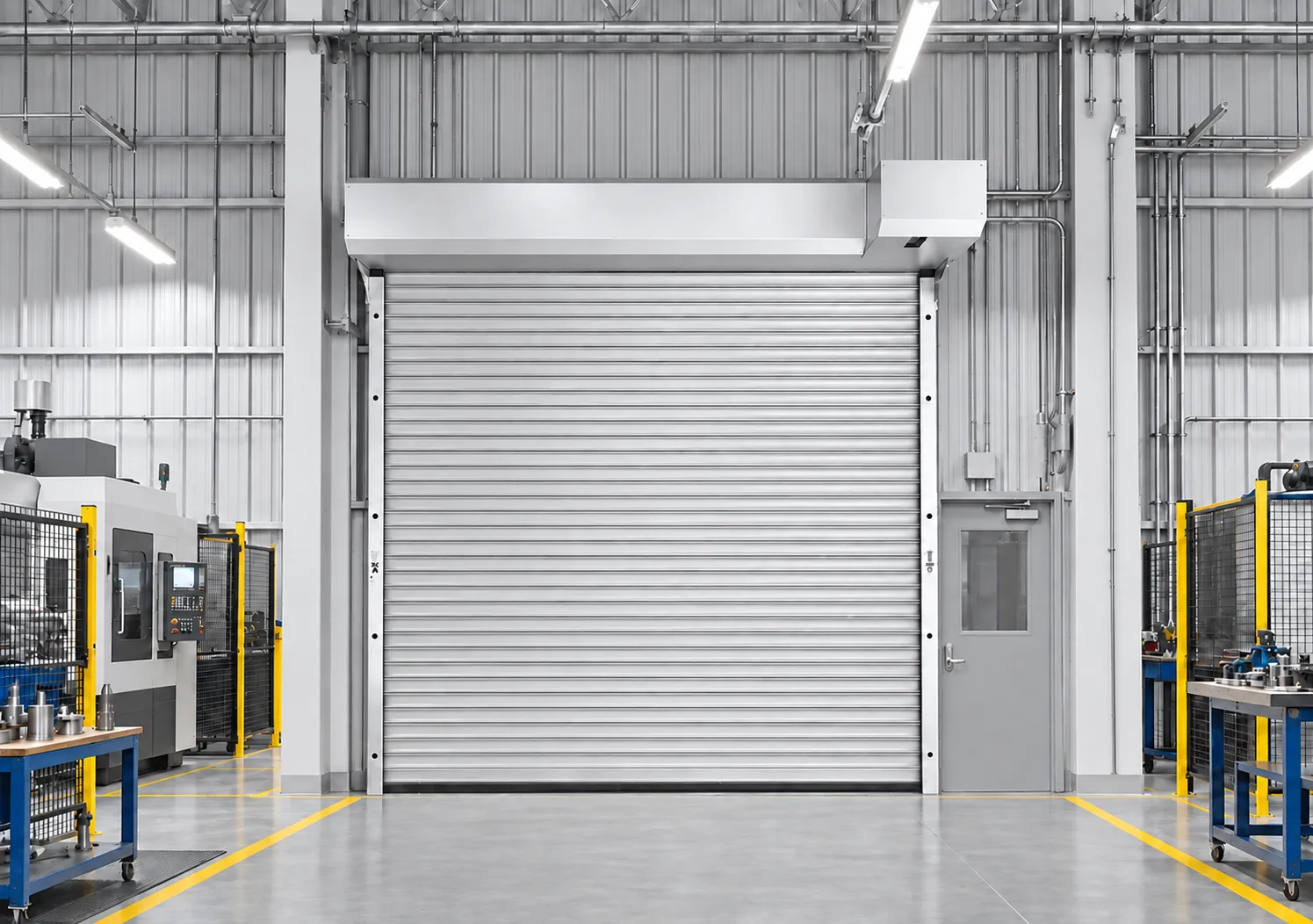

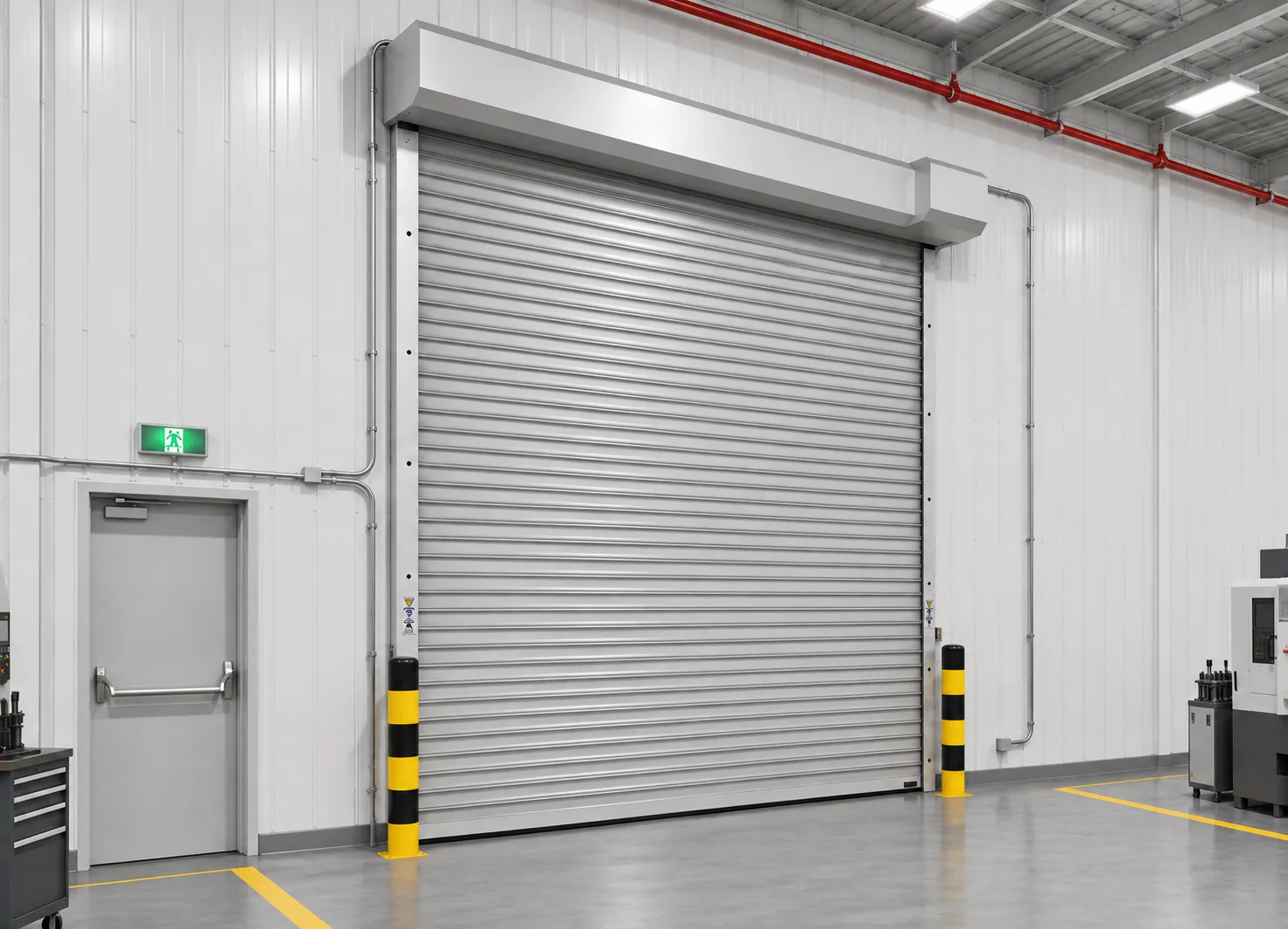

UL Steel Fire Shutter Door
Steel fire shutter door rated to UL 10B with a 180-minute fire-resistance rating, for fire compartmentation in industrial, commercial and public buildings.
- Fire Resistance Rating: 180 min (3 h)
- Opening Speed: 0.1 m/s

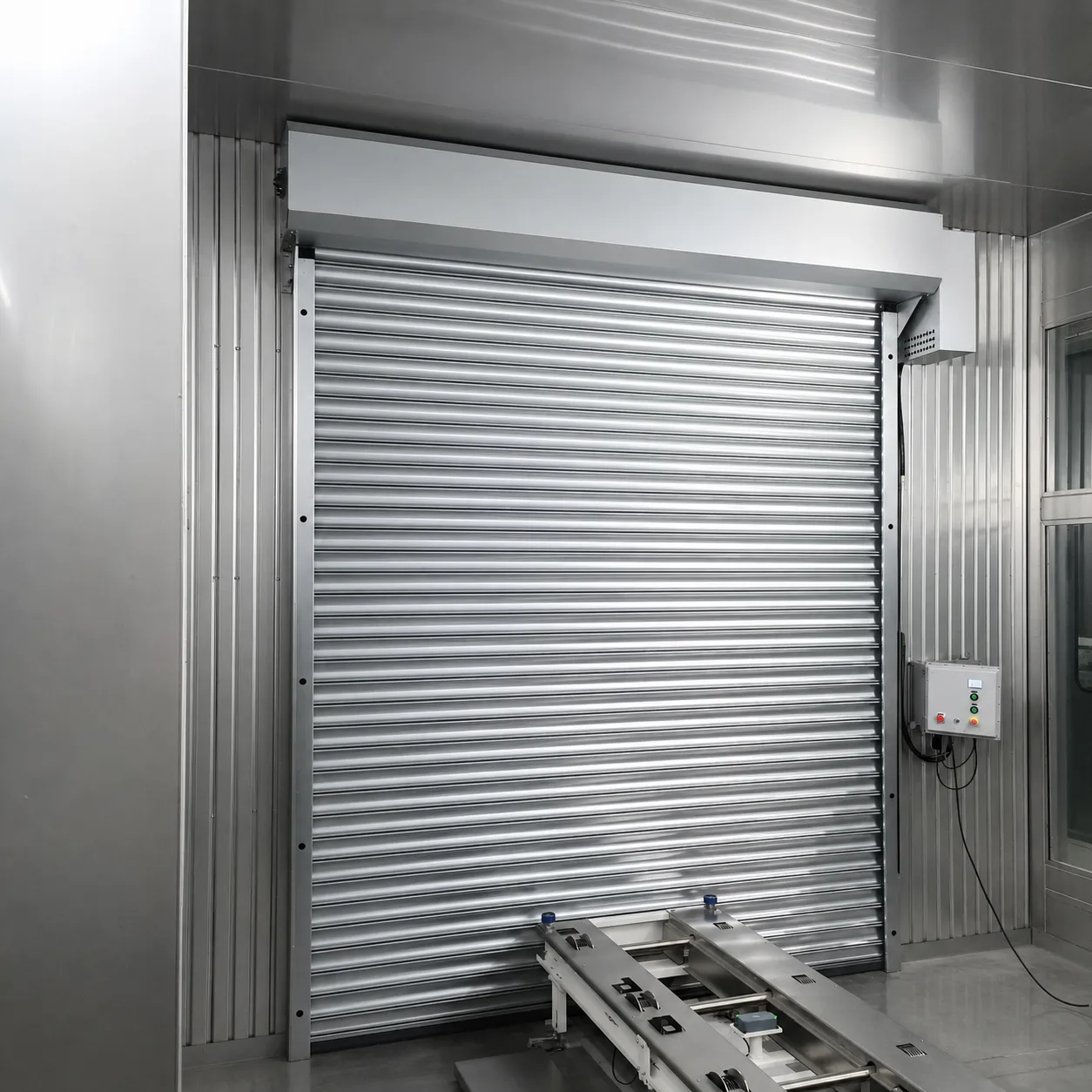

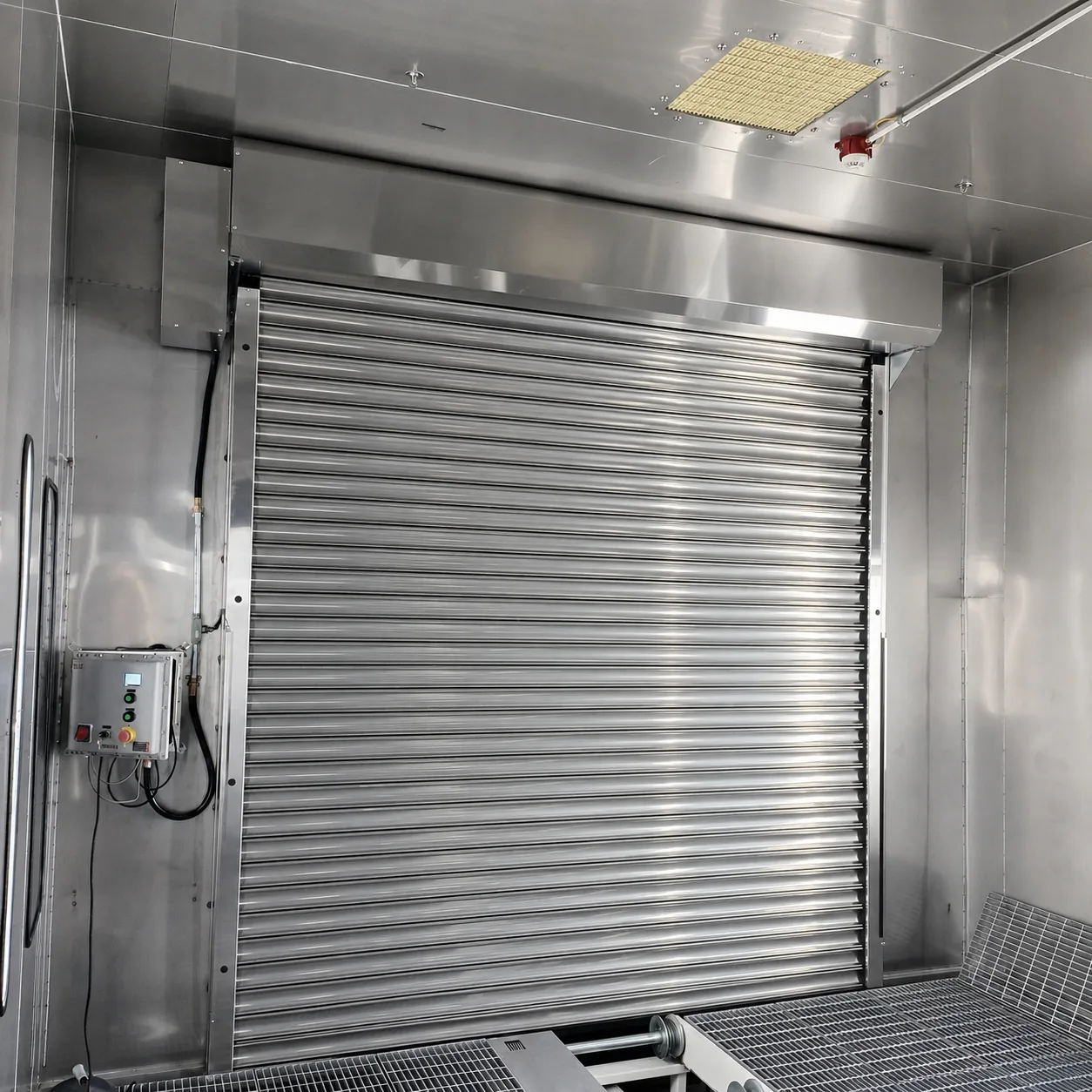

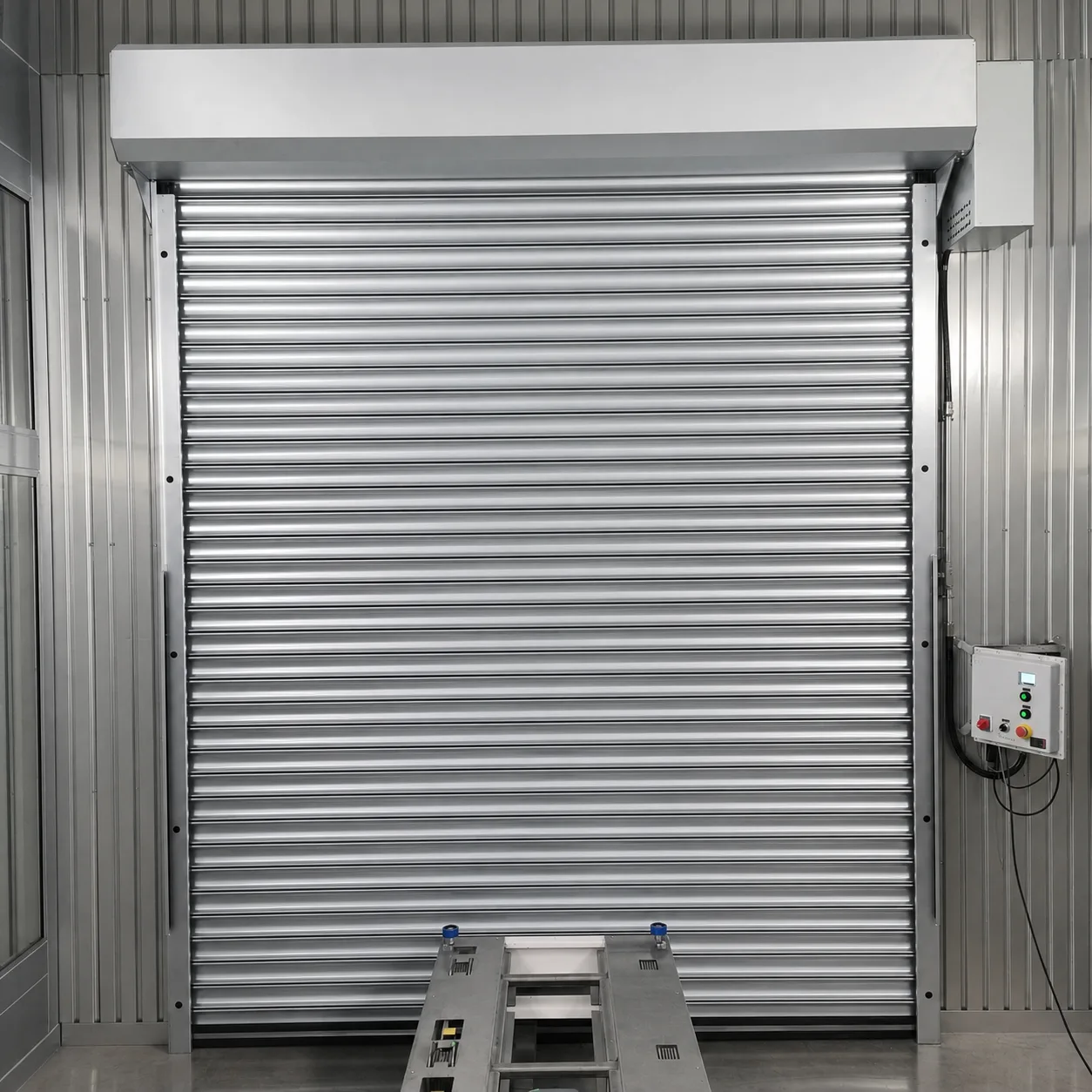

Steel Explosion-Proof Roller Shutter Door
Steel roller shutter door rated Ex IIC T4 as a complete assembly for IIB and IIC explosive gas areas, excluding coal mines and underground mines.
- Explosion Proof Grade: Ex IIC T4
- Opening Speed: 0.1 m/s
High Speed Door
Servo-driven high speed doors for busy openings: PVC fabric doors for clean, controlled areas and aluminum spiral doors for wind resistance and insulation.
- Max. size
- 8,000 × 10,000 mm
- Opening speed
- 0.8–2.0 m/s
- Design wind load
- 0.2–0.3 / 1.0–3.5 kPa

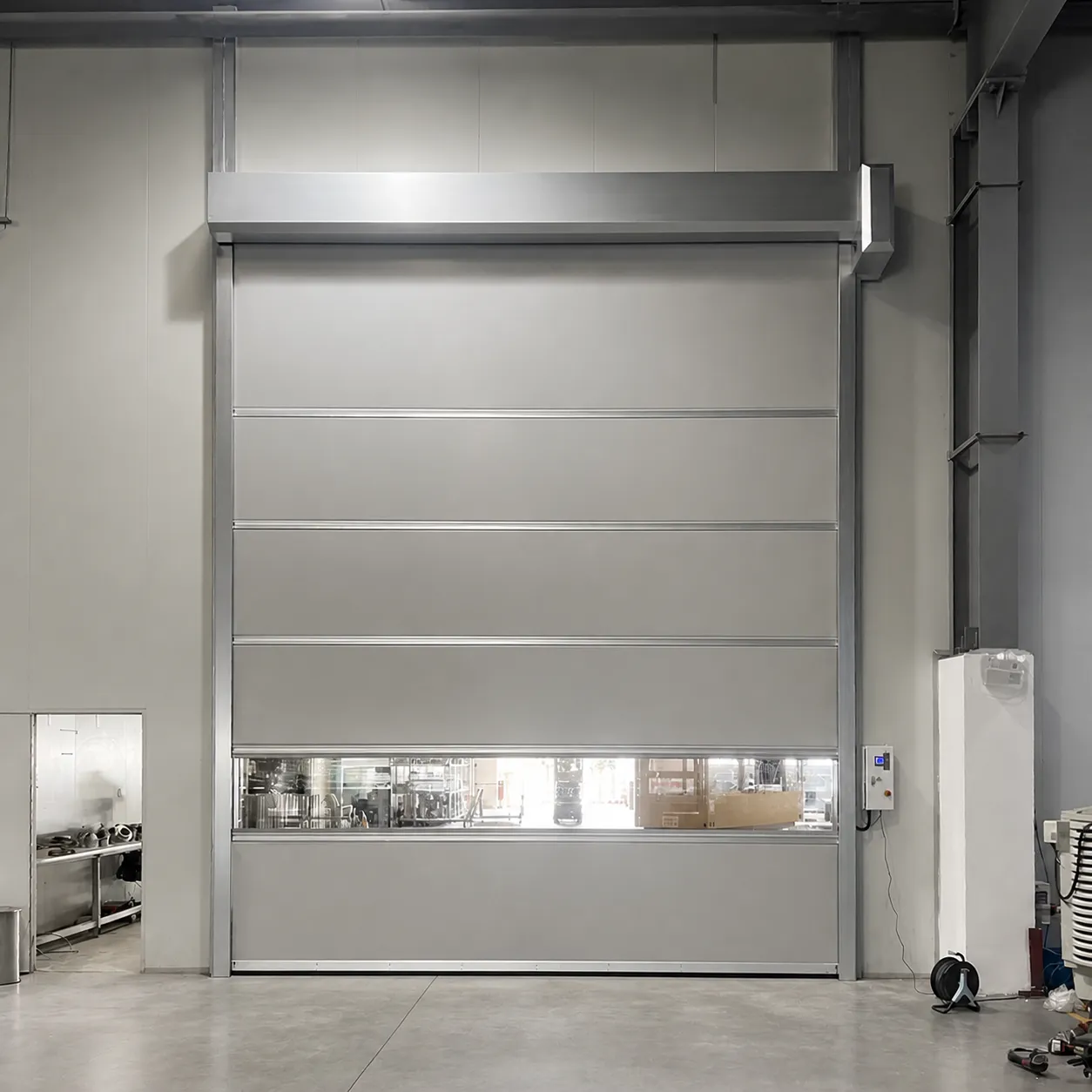

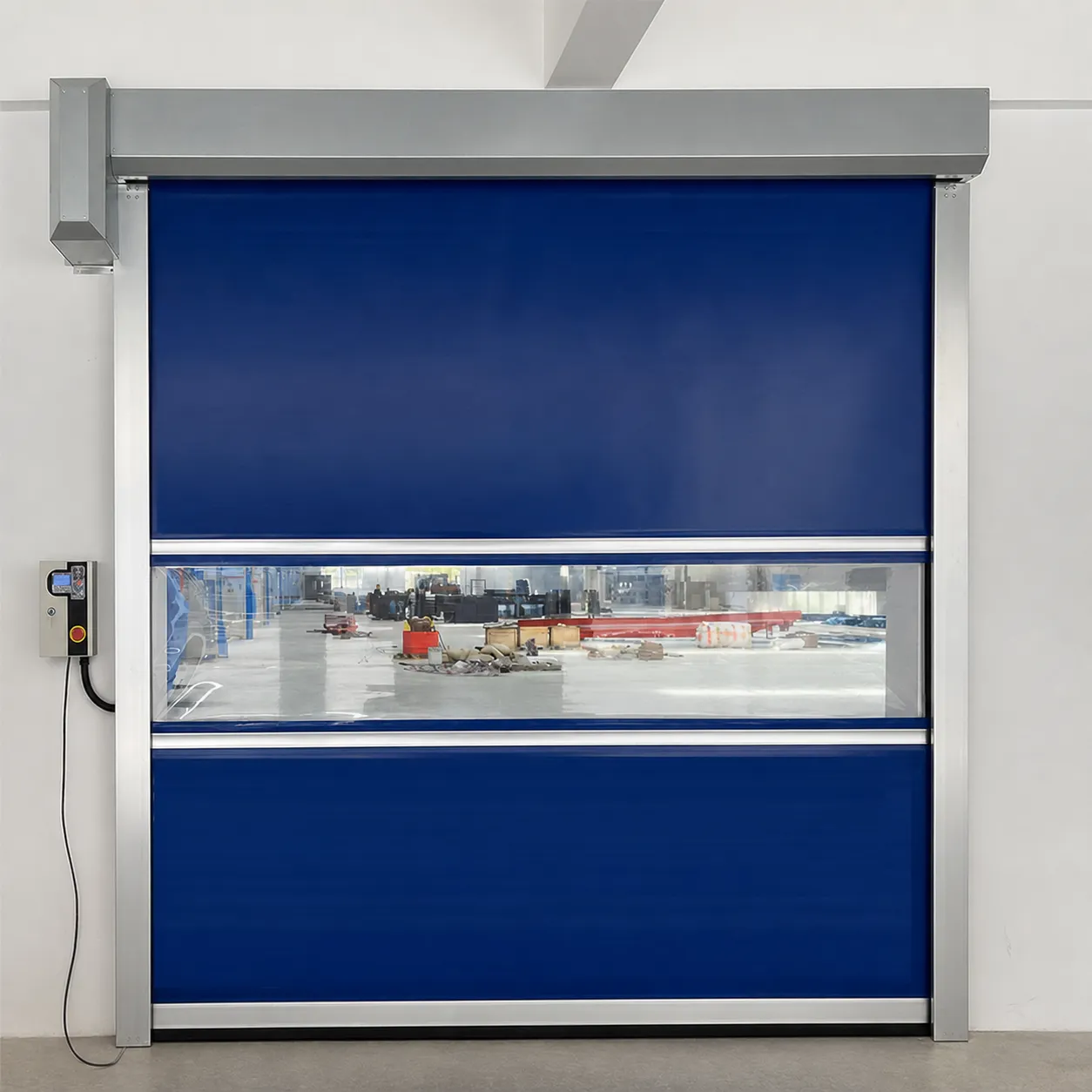

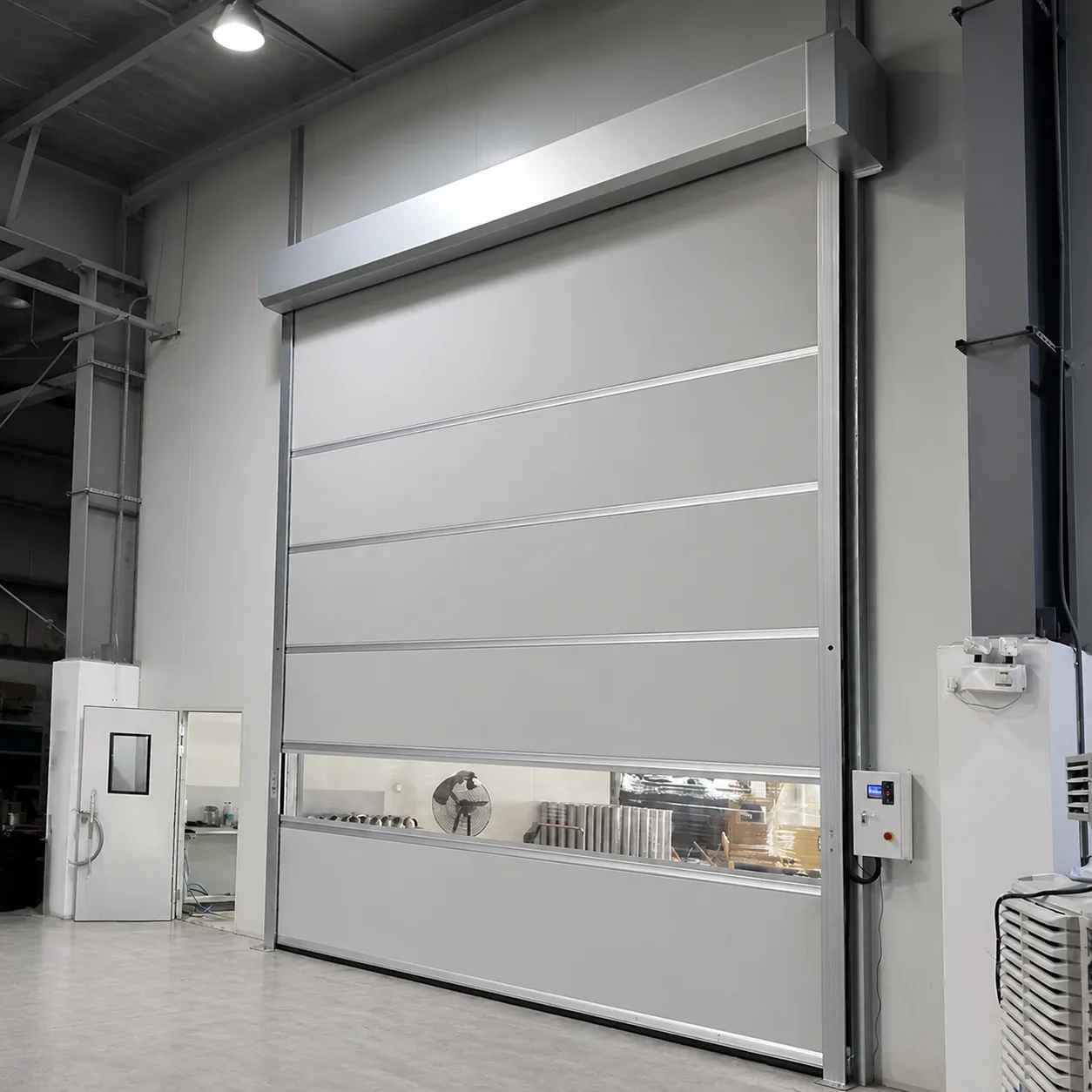

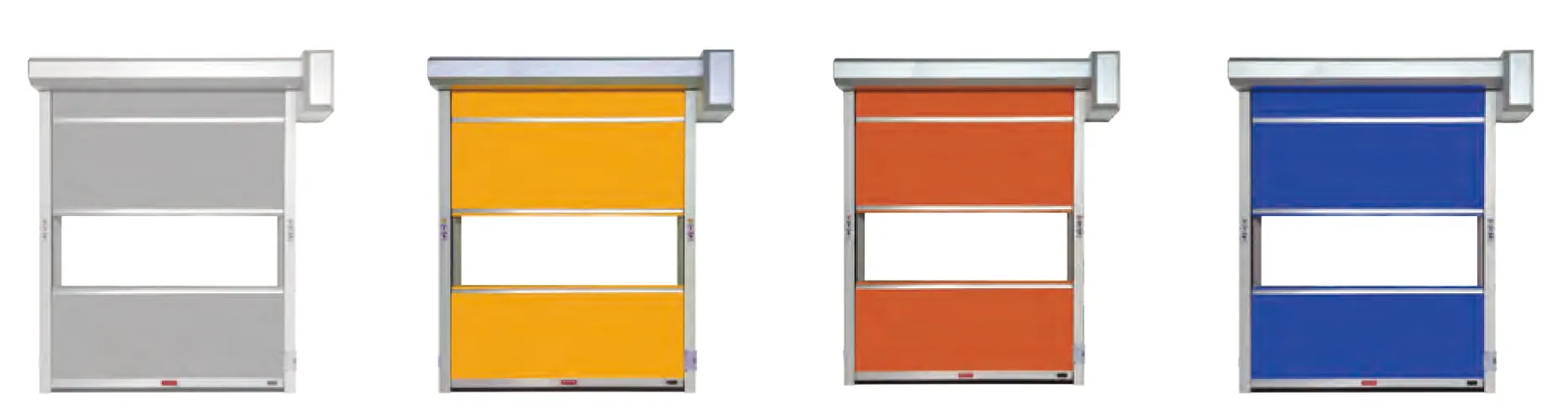

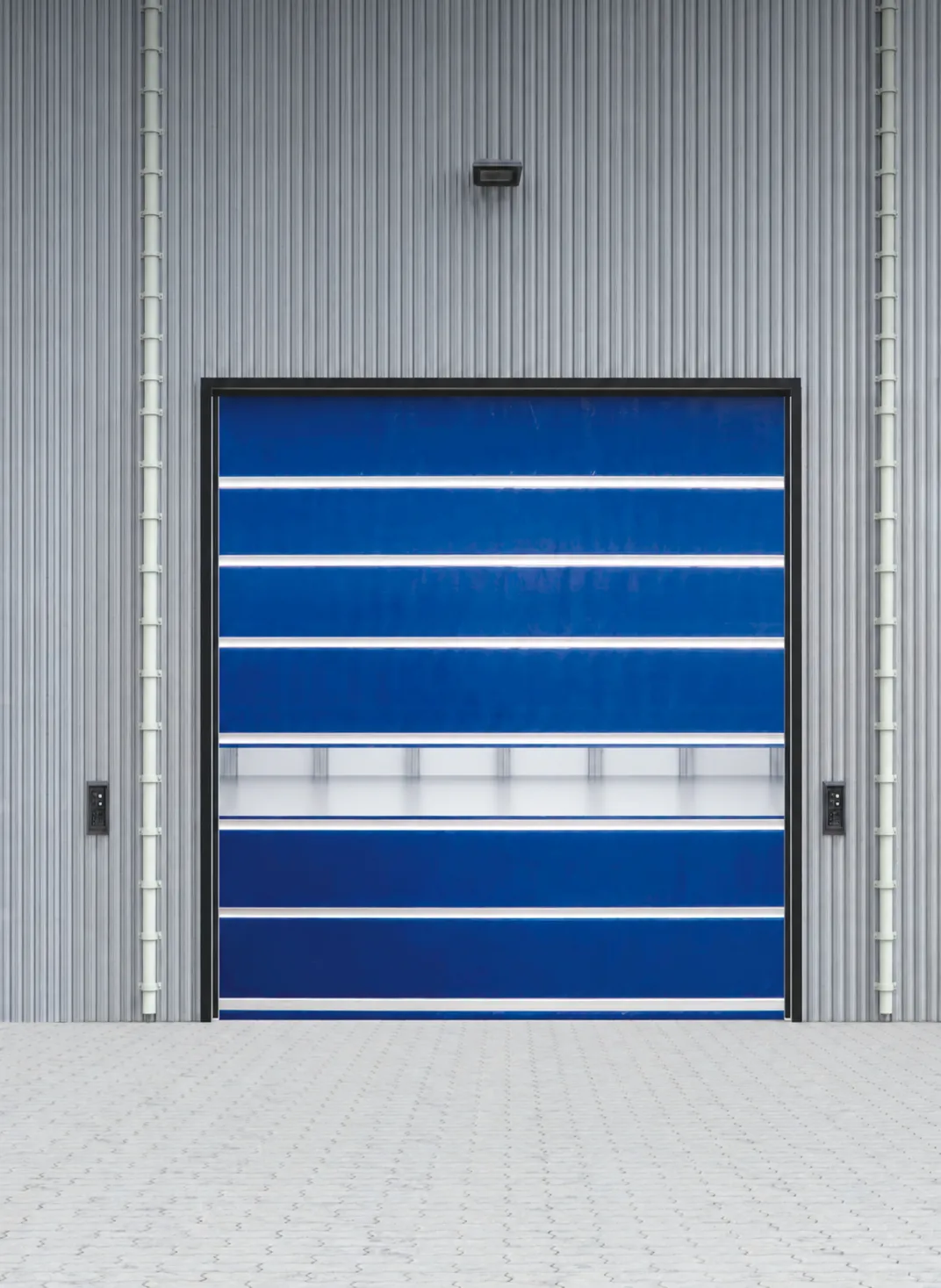

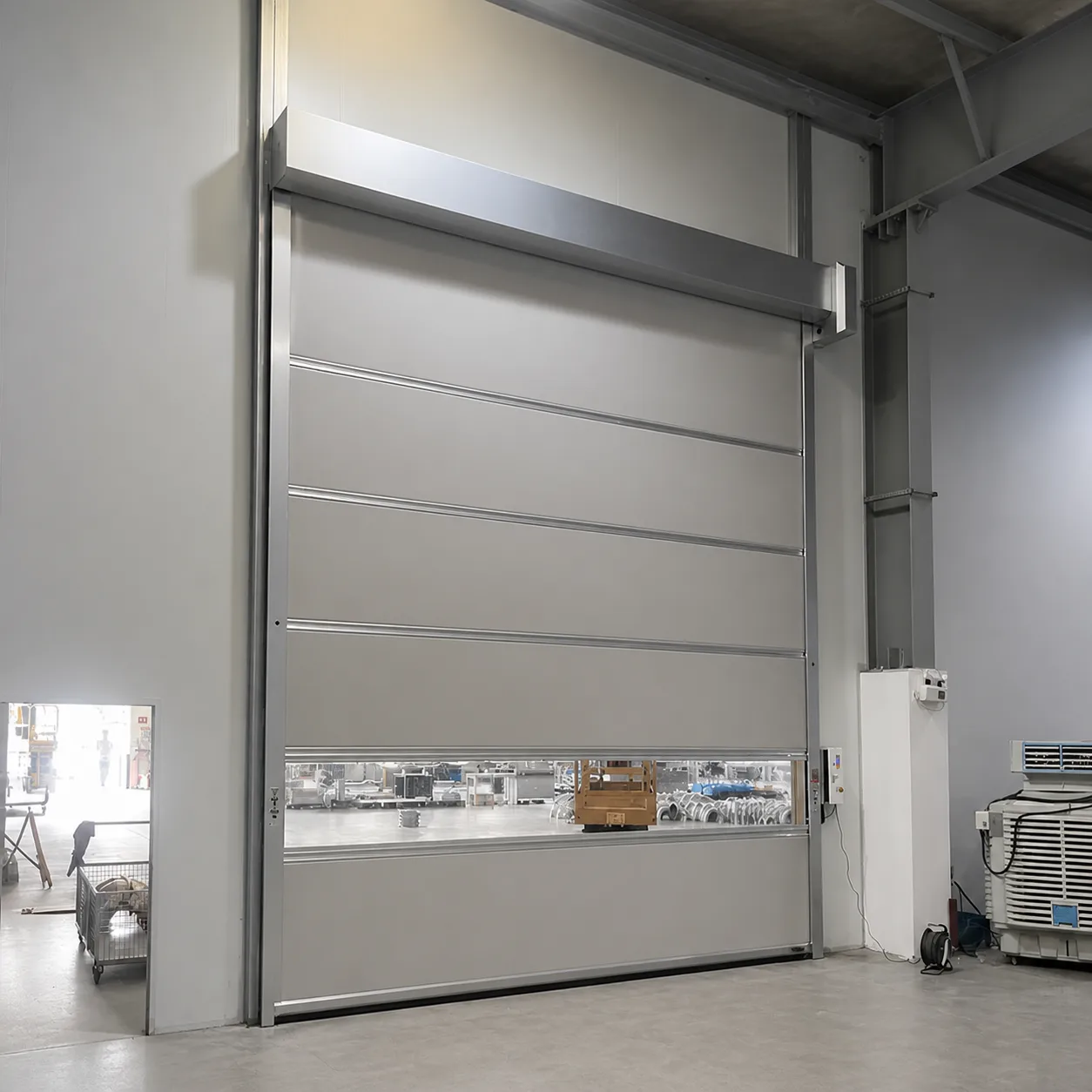

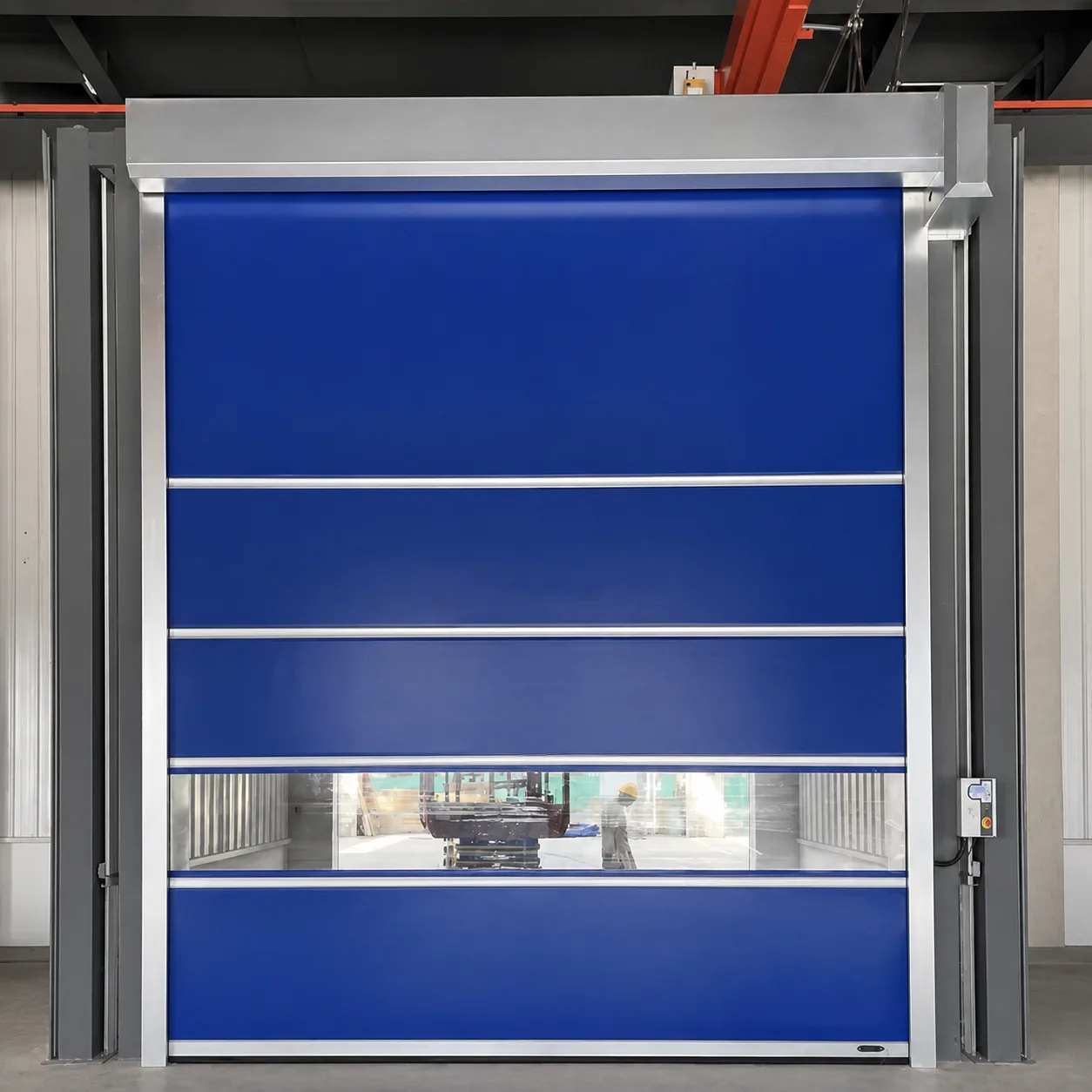

PVC High Speed Door
Servo-driven PVC fabric high speed door up to 6,000 × 6,000 mm, opening at 0.8–2.0 m/s, design service life ≥ 800,000 cycles, for logistics passages, workshops and clean, controlled areas with frequent access.
- Max. size: 6,000 × 6,000 mm
- Opening Speed: 0.8–2.0 m/s
- Design Wind Load: 0.2–0.3 kPa

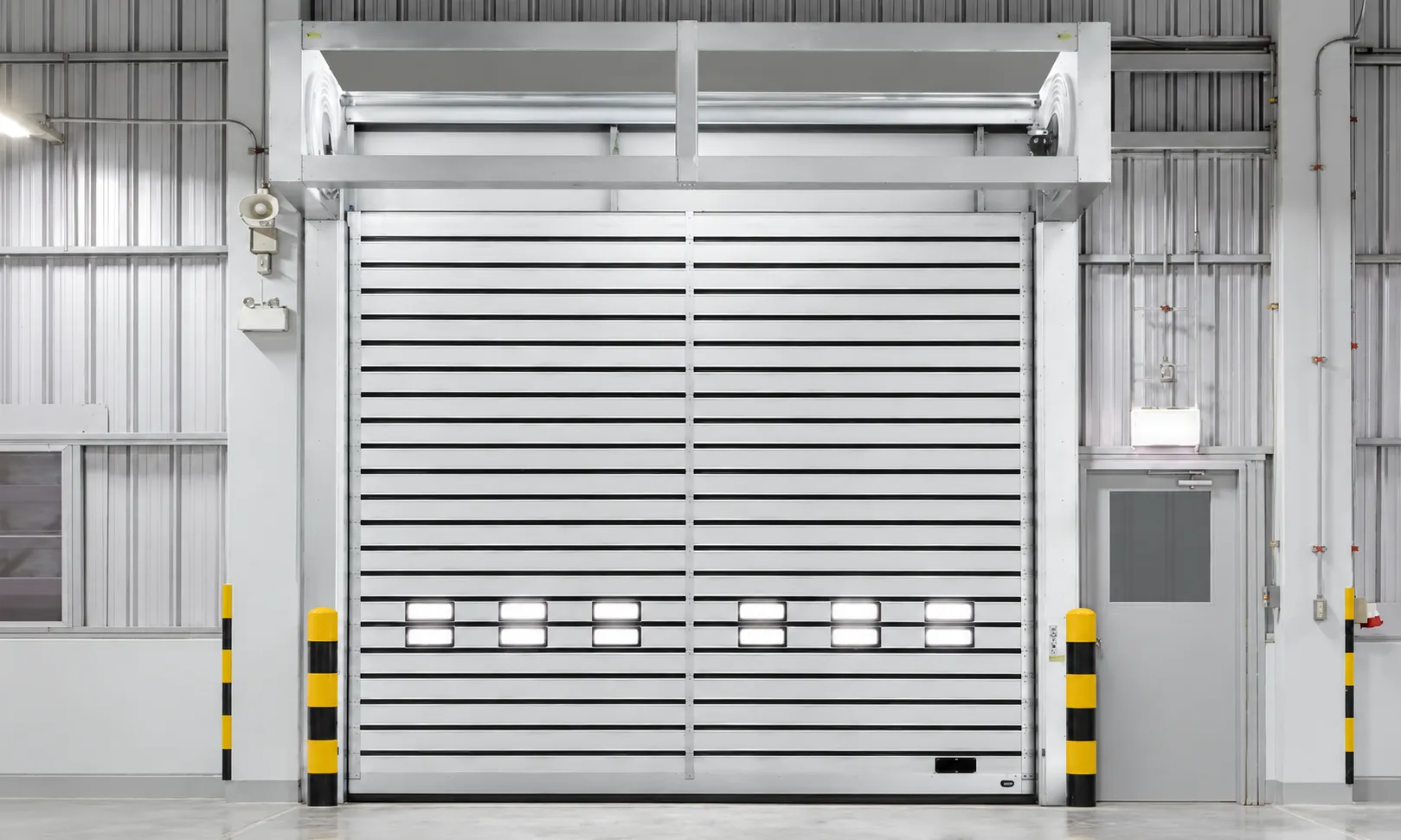

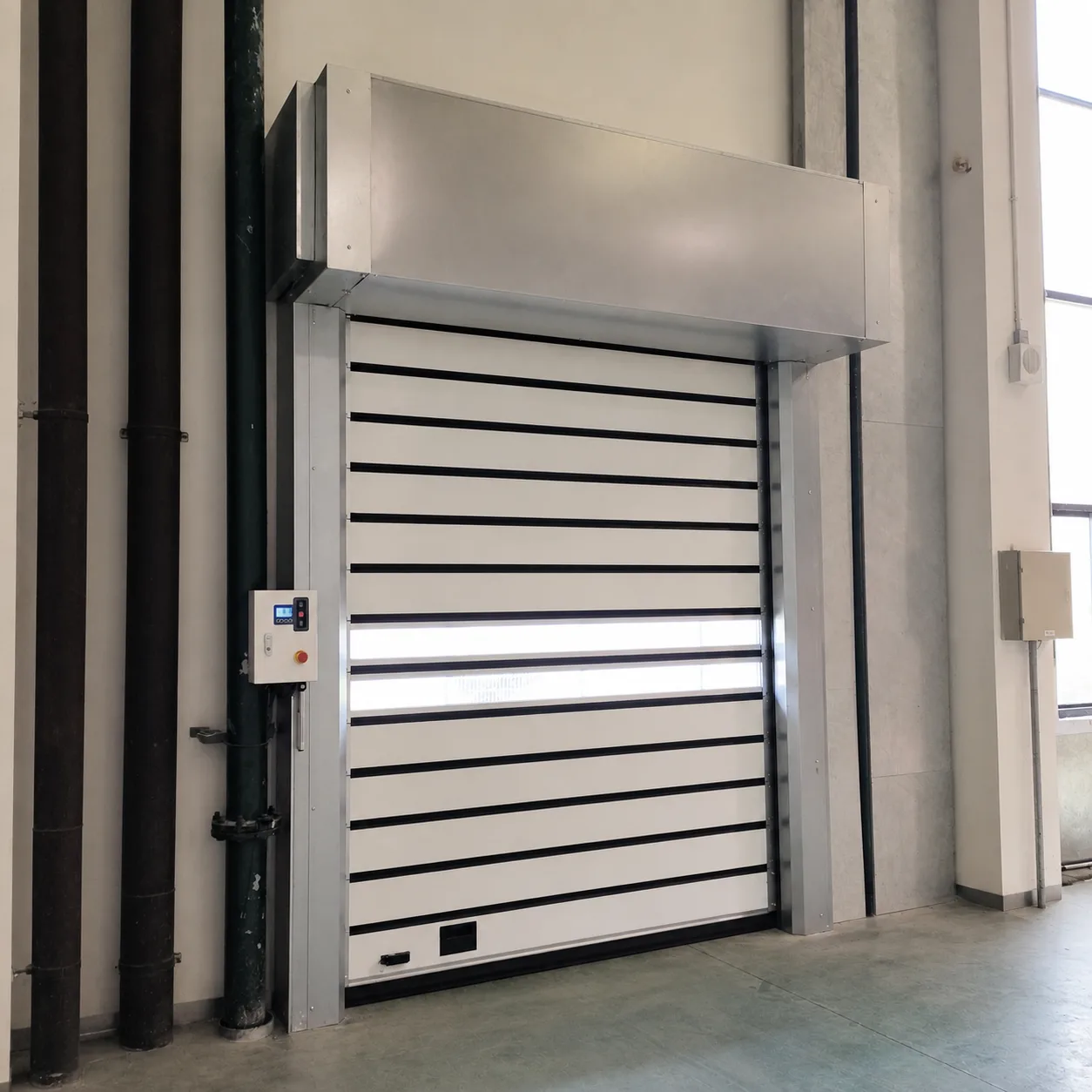

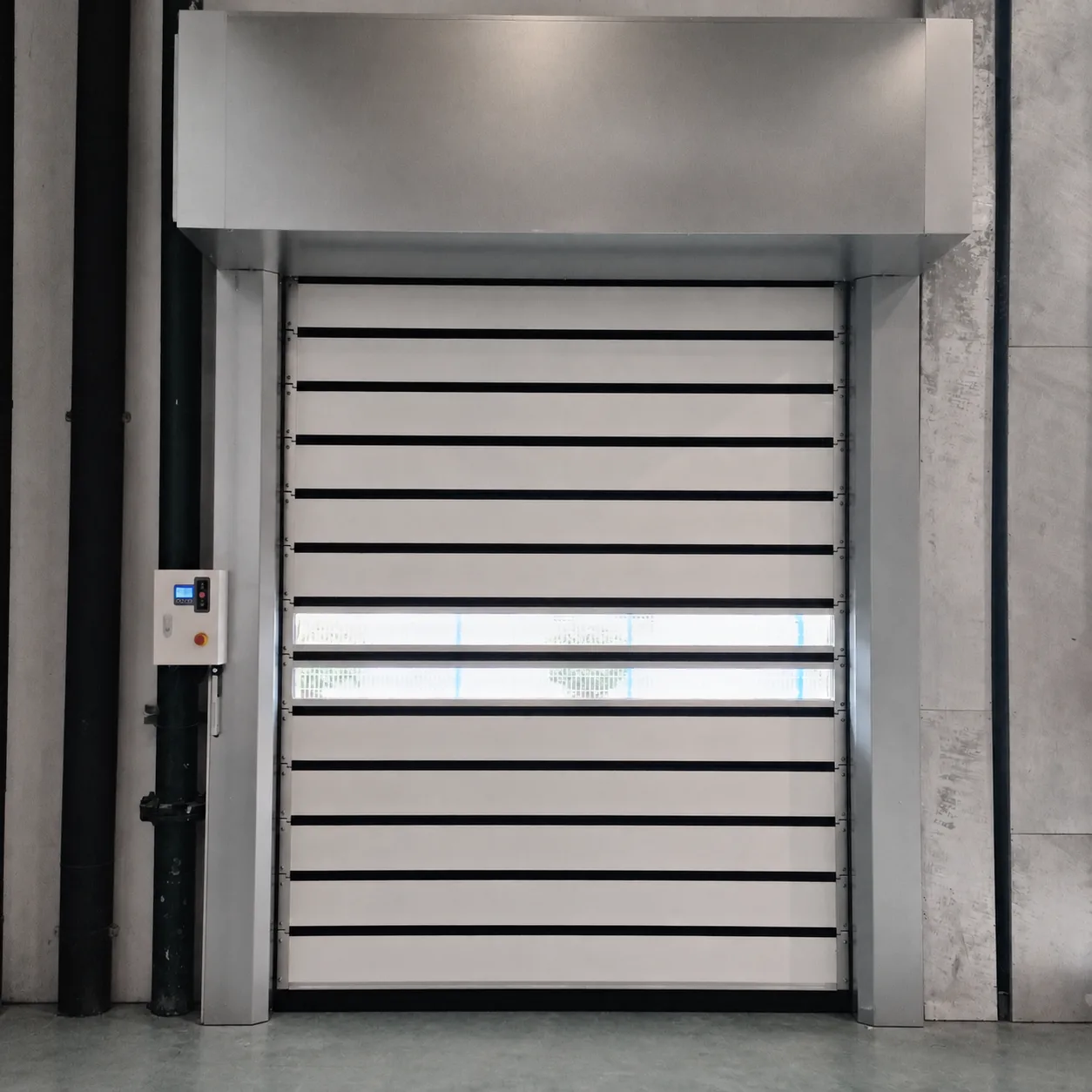

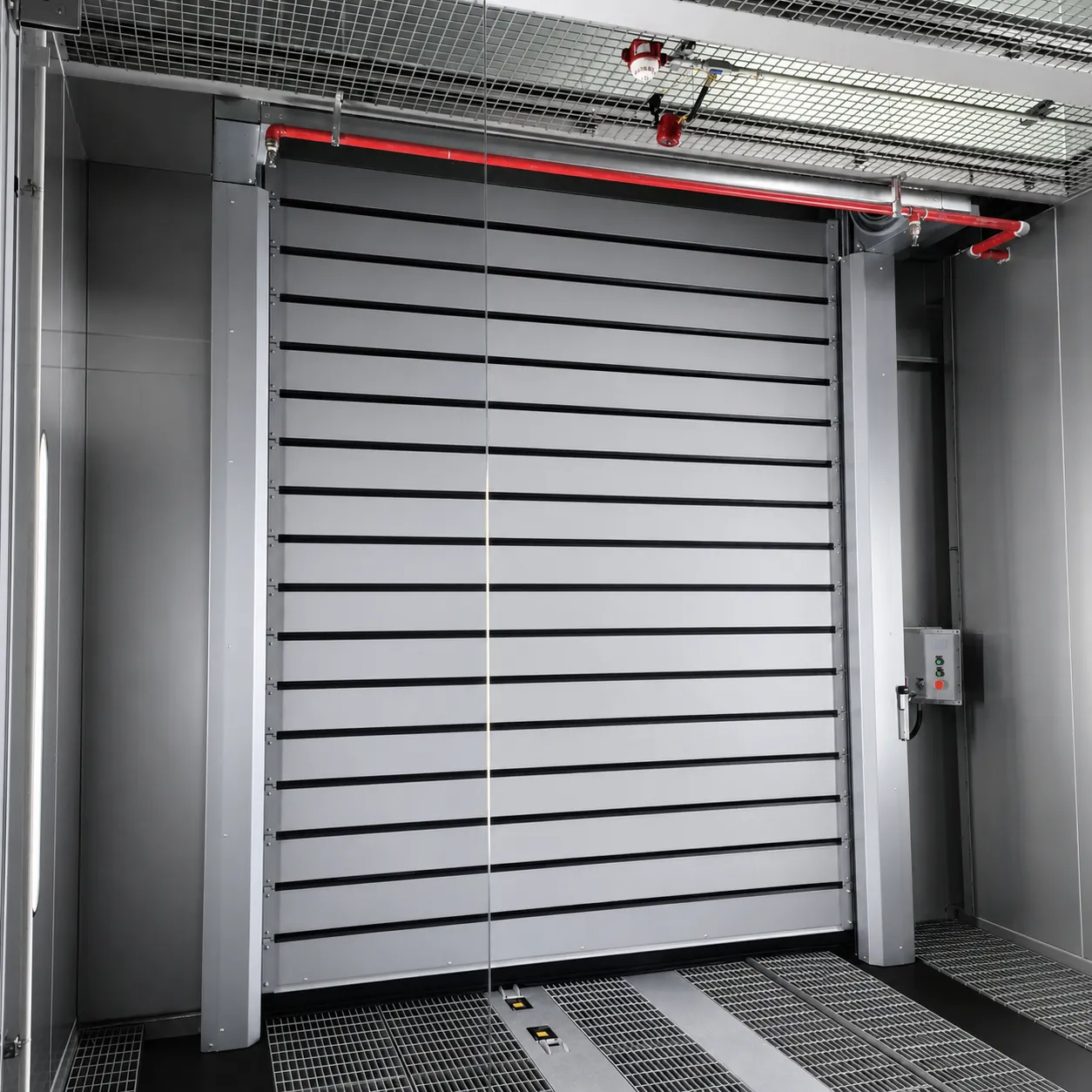

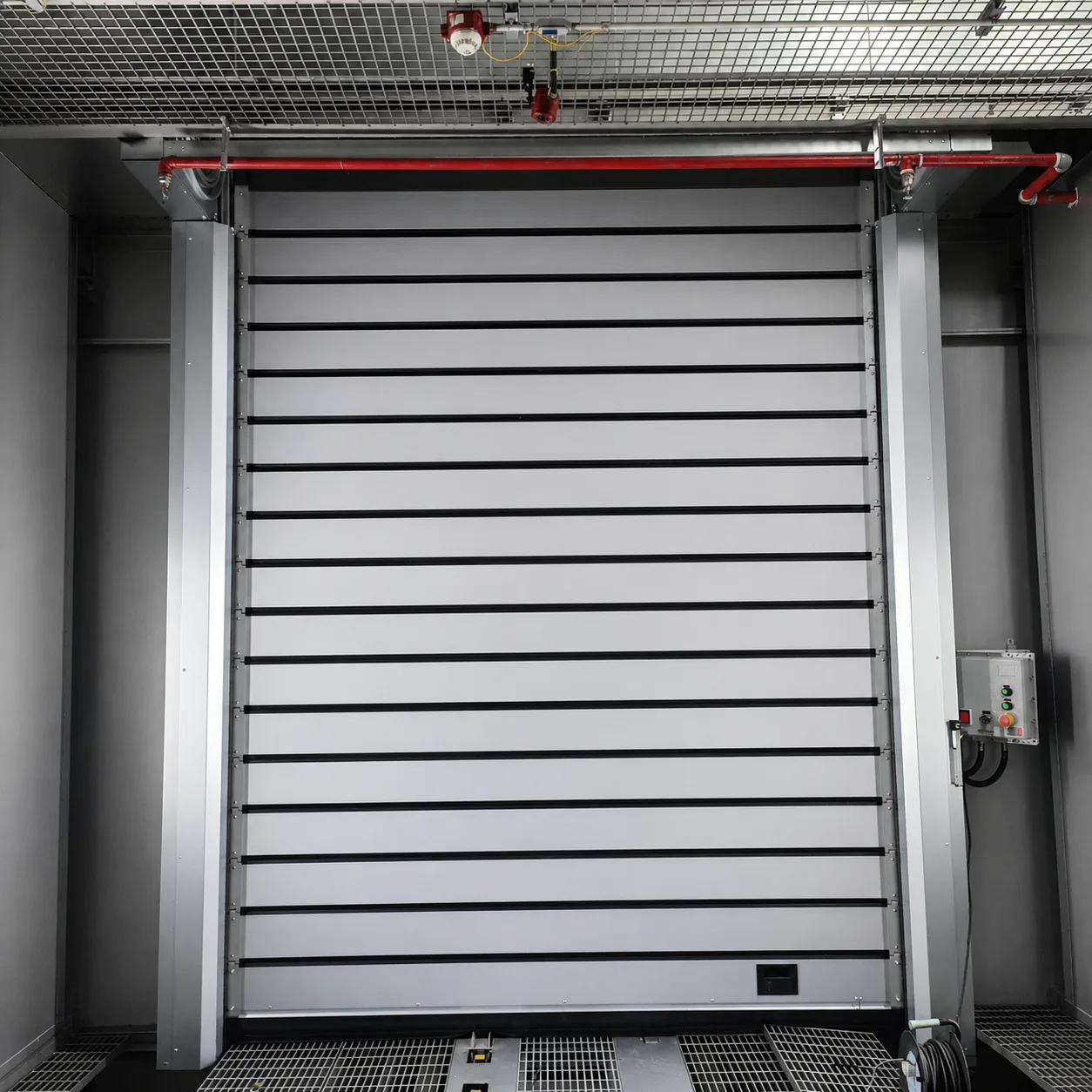

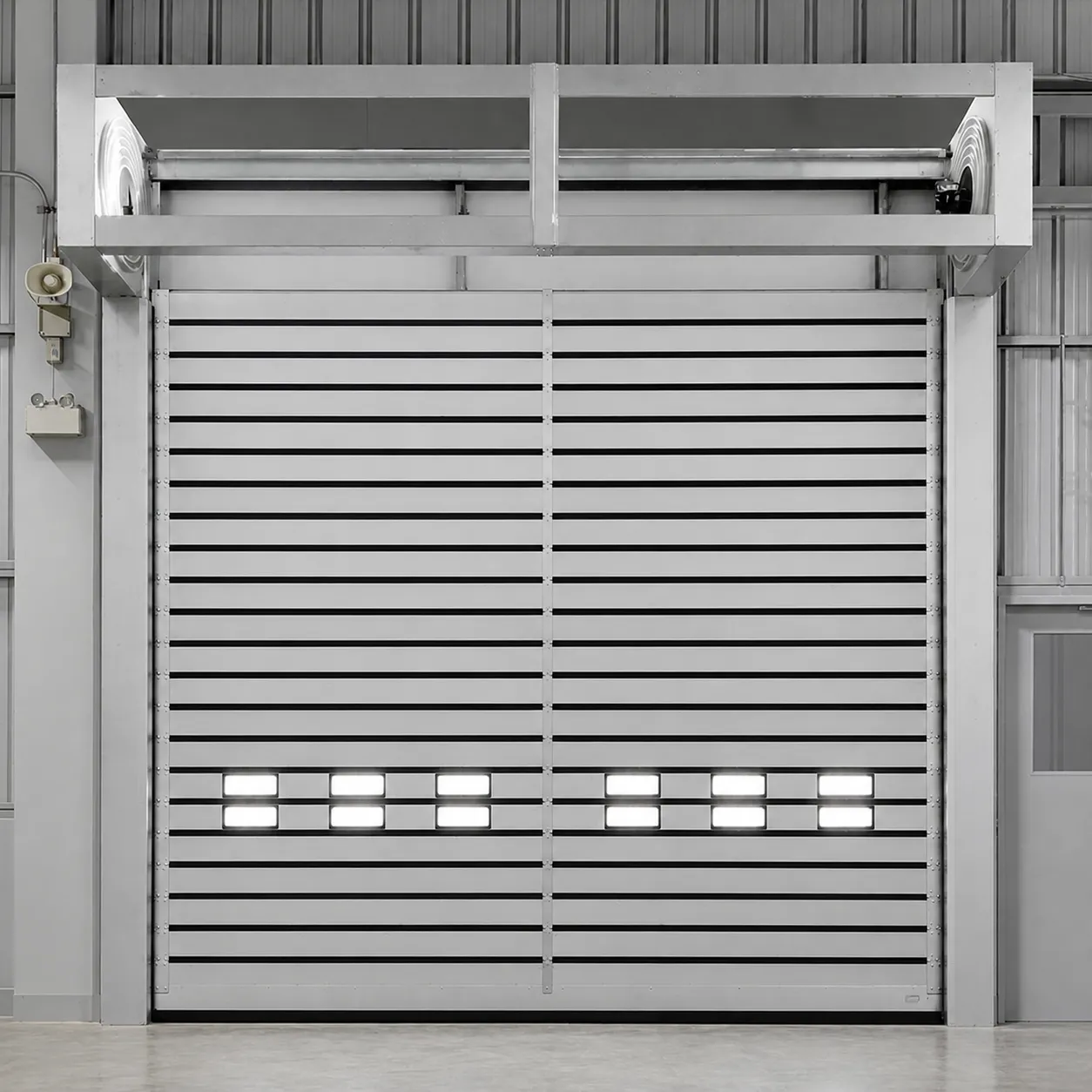

High Speed Spiral Door
Aluminum high speed spiral door up to 8,000 × 10,000 mm with PU-filled aluminum slats, 0.8–2.0 m/s opening speed and 1.0–3.5 kPa design wind load, for warehouses, logistics centers, workshops and underground garages.
- Max. size: 8,000 × 10,000 mm
- Opening Speed: 0.8–2.0 m/s
- Design Wind Load: 1.0–3.5 kPa
Industrial Sectional Door
Insulated industrial sectional doors with standard, high or vertical lift for factories, logistics warehouses and garages needing energy efficiency.
- Max. size
- 8,000 × 10,000 mm
- Opening speed
- 0.2 m/s
- Design wind load
- 0.7–2.2 kPa

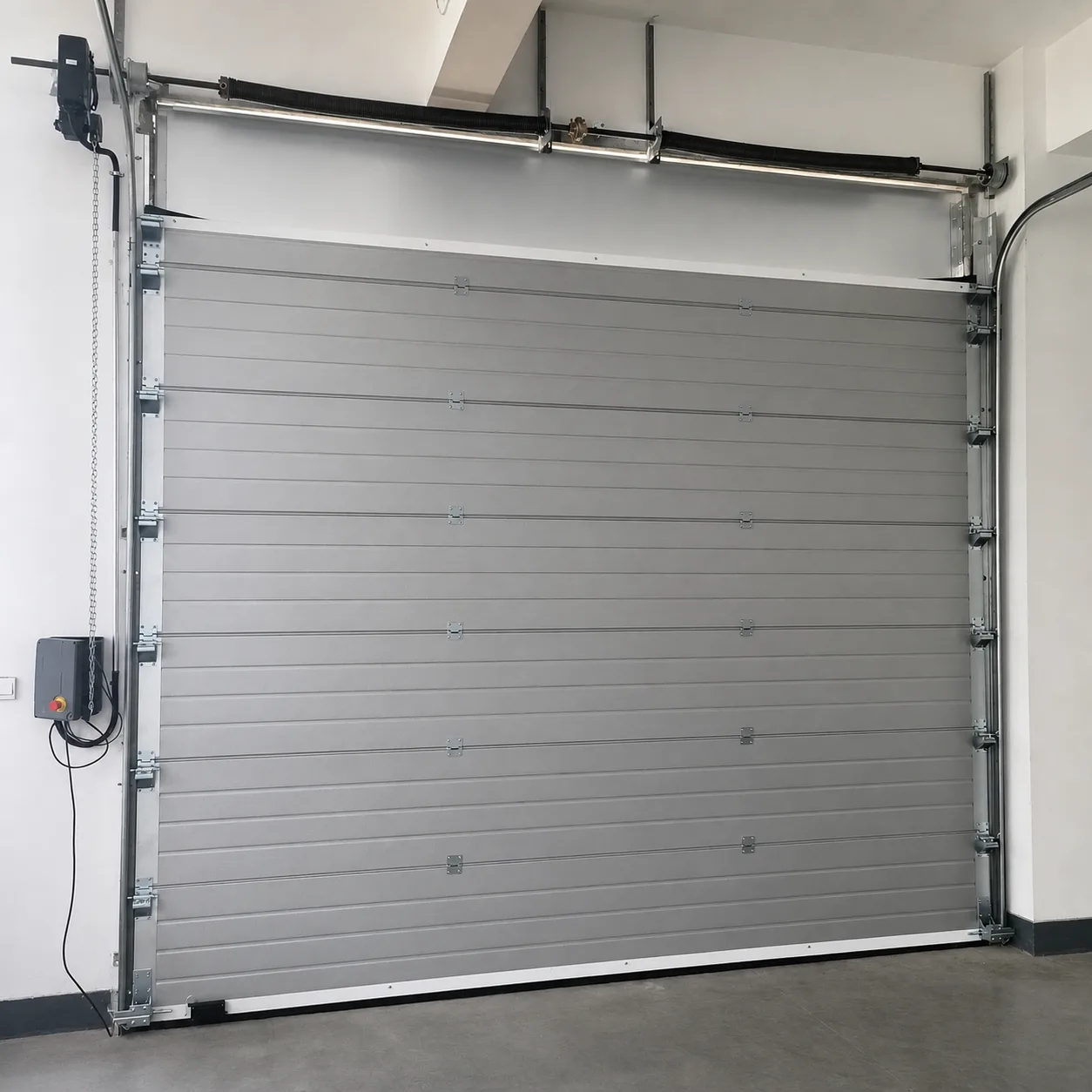

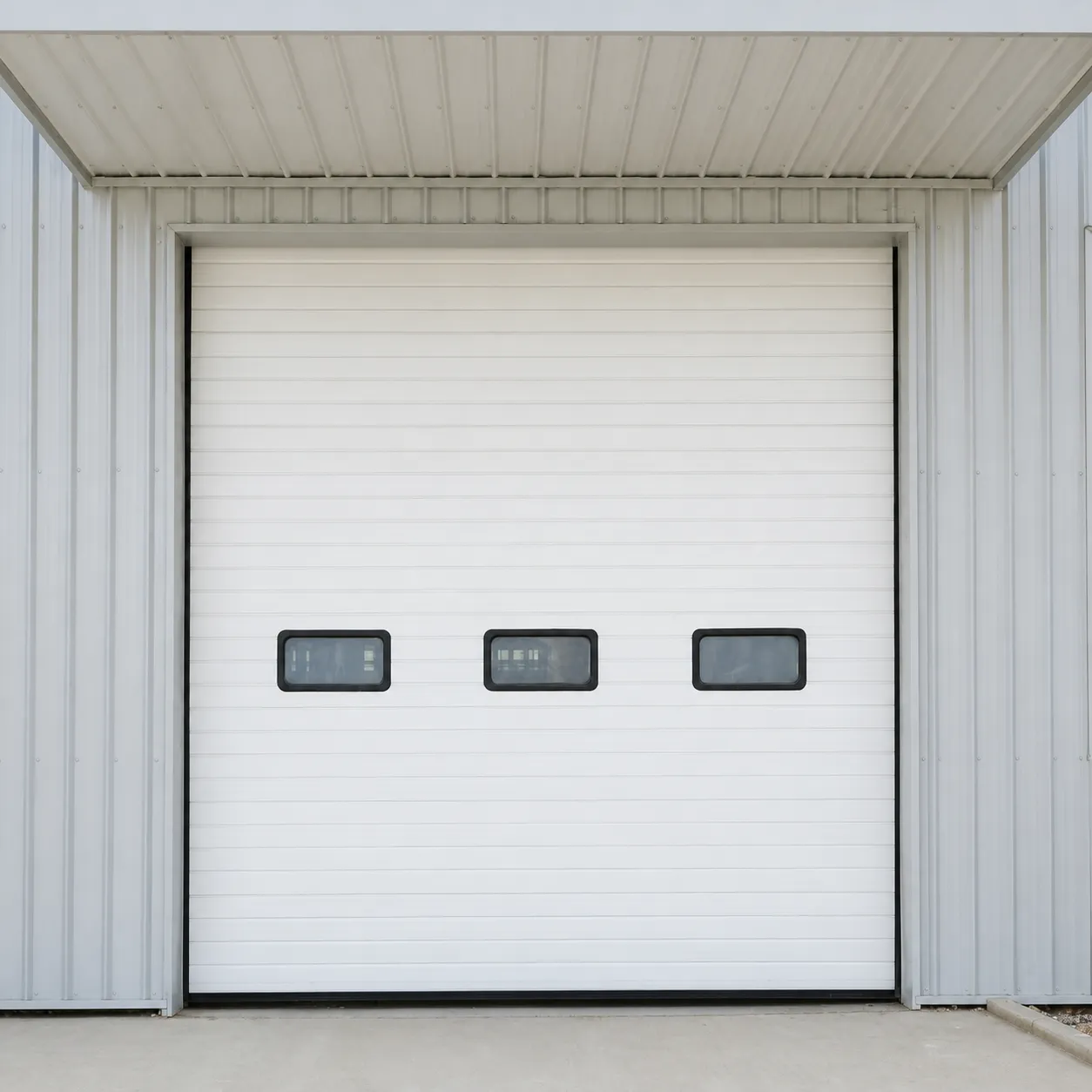

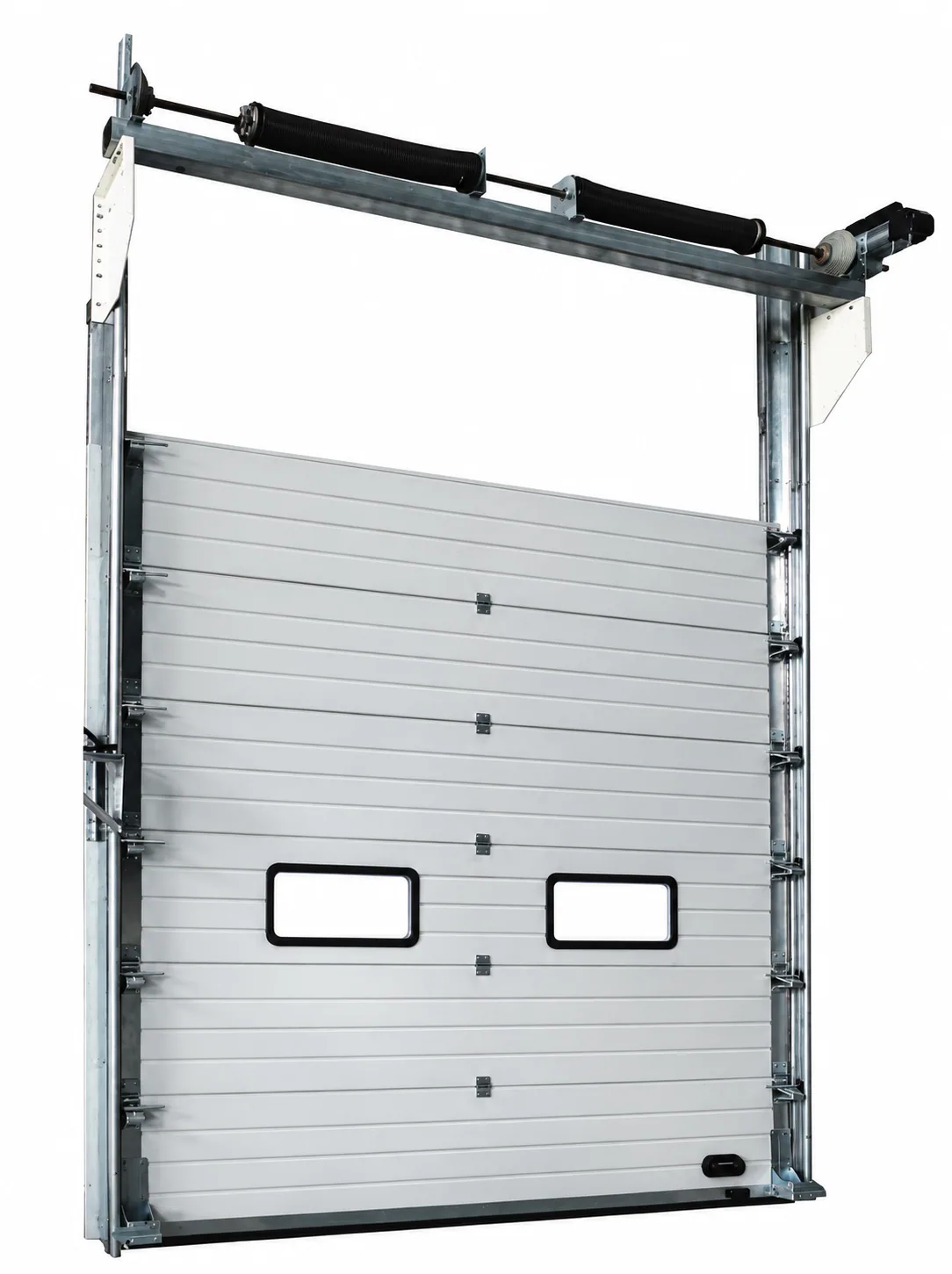

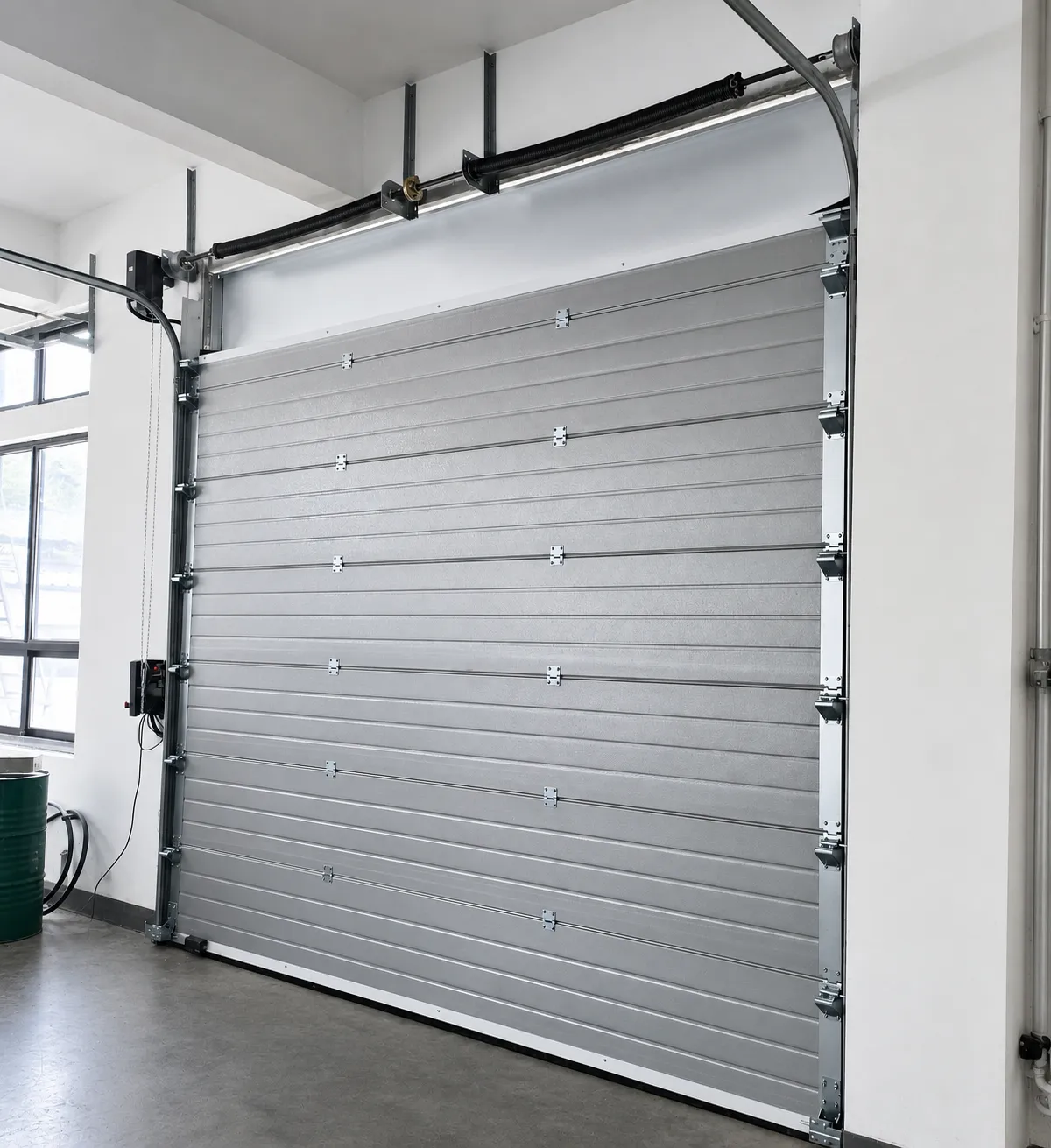

Industrial Sectional Door
Insulated industrial sectional door up to 8,000 × 10,000 mm with standard, high or vertical lift and 0.5–1.2 W/(m²·K) thermal transmittance, for factories, logistics warehouses and specialized garages that need energy efficiency and airtightness.
- Max. size: 8,000 × 10,000 mm
- Opening Speed: 0.2 m/s
- Design Wind Load: 0.7–2.2 kPa
Options by product
The first option groups listed in the CUBIXY catalogue for each product. Open a product for every option group.
- Steel & Fire Door
- Door Styles: Single Leaf
- Single leaf with louverSingle leaf with narrow vision panelSingle leaf with vision panel and door closerSingle leaf with rounded vision panel+8 more
- Door Styles: Unequal Leaf
- Unequal leaf with transom, vision panel and door closerUnequal leaf with vision panel and protective bandUnequal leaf with square vision panelUnequal leaf with large vision panel and push bars+1 more
- Door Styles: Double Leaf
- Double leaf with two narrow vision panelsDouble leaf with vision panel, push bars and door closersDouble leaf with push bars and door closersDouble leaf with vision panels and louvers+1 more
- Wind-Resistant Roller Shutter Door
- Curtain Slat Options: Prepainted Steel
- PPS 75PPS 100PDI 85PDI 98
- Curtain Slat Options: Aluminum Alloy
- AAD 83 / ADI 83AAD 100 / ADI 100AAD 120 / ADI 120AAD 140 / ADI 140
- Curtain Slat Options: Stainless Steel (304/316)
- SSS 75SSS 100SDI 85SDI 98
- EN Steel Insulated Fire Roller Shutter
- Curtain Slat Options: EI 120
- GDI 60SDI 60
- Curtain Slat Options: EI 240
- GDI 100SDI 100
- UL Steel Fire Shutter Door
- Standard configuration
- Curtain Slat: PPS 100 1.5 mmGuide Rail: 2.0 mm Aluminum-Zinc Coated Steel
- Steel Explosion-Proof Roller Shutter Door
- Curtain Slat Options
- PPS 100PDI 100SDI 100
- Control & Drive System
- Explosion-proof ControllerExplosion-proof MotorExplosion-proof & Anti-corrosion Switch BoxExplosion-proof Control Box+1 more
- PVC High Speed Door
- Curtain Options
- 0.8 mm PVC-Coated Fabric1.0 mm PVC-Coated Fabric1.2 mm PVC-Coated Fabric
- Servo Motors
- A0 PE101A0 PE201A0 PE302A0 PE502+10 more
- Servo Control System Options
- A0 PE 101/201/302/502A1 PE 111/210/510A1 PE 715/915A2 PE 200/500+1 more
- High Speed Spiral Door
- Control Options
- Push ButtonRemote ControlRadar ControlInductive Loop
- Lift Options
- Turbo LiftElliptical LiftFlat LiftVertical Lift
- Curtain Slat Options
- ADI 25ADI 40ADI 40ADI 60+1 more
- Industrial Sectional Door
- Control Options
- Push-button ControlRemote ControlPull-switch ControlRadar Control+2 more
- Access & Vision Options
- Door with Wicket DoorDoor with Vision PanelDoor with Wicket Door & Vision Panel
- Lift Options
- Standard LiftHigh LiftVertical Lift
Send your opening sizes for a quotation
Tell us the opening size (W × H), door type, application, performance requirements (fire, wind, insulation), control method, quantity and project location. We reply by email with a specification and quotation.
