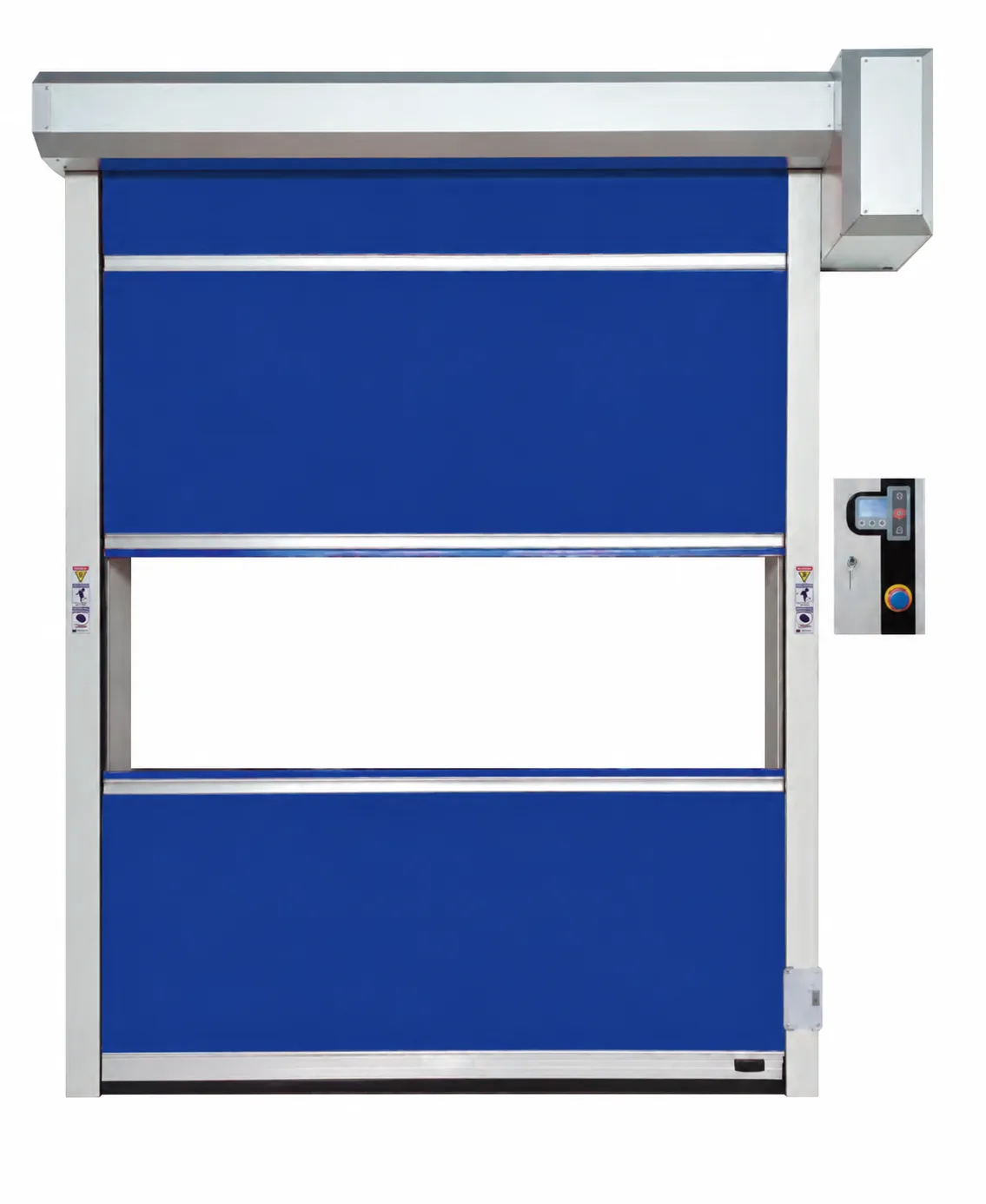

PVC High Speed Door
Servo-driven PVC fabric high speed door up to 6,000 × 6,000 mm, opening at 0.8–2.0 m/s, design service life ≥ 800,000 cycles, for logistics passages, workshops and clean, controlled areas with frequent access.
Key specifications
- Opening Speed: 0.8–2.0 m/s
- Closing Speed: 0.6–0.8 m/s
- Design Wind Load: 0.2–0.3 kPa
- Thermal Transmittance: 5.5–6.0 W/(m²·K)
- Watertightness: Class 1–2
- Max. door size (W × H)
- 6,000 × 6,000mm
- Opening speed
- 0.8–2.0m/s
- Design service life
- ≥ 800,000cycles
- Operating noise
- ≤ 60dB(A)
Product details
PVC high speed doors are designed for logistics passages and high-traffic areas that need frequent access, rapid opening and closing and strict cleanliness control. With high-speed operation, thermal insulation, dust and insect prevention and sound insulation, they reduce energy loss and help keep indoor temperature and humidity stable and the production environment clean and controlled. They are used in manufacturing workshops, warehouses and logistics centers.
Key features
High-strength Door Curtain
Made of PVC-coated fabric with an embedded high-strength fiber mesh, the curtain is reinforced with polyethylene-coated polyester mesh strips and streamlined fiberglass profiles, providing excellent strength and abrasion resistance.
Column
Made of high-strength steel with a dual-chamber design, the column effectively separates the door guide track from the electrical wiring for enhanced operational safety.
Sealing System
High-density brushes are fitted inside both side guides, while an EPDM sealing strip is installed along the bottom edge of the door curtain. This system effectively reduces dust, insects and air leakage, helping maintain a cleaner and better-controlled indoor environment.
Safety Devices
Wireless safety edge and photoelectric safety sensor protect people and vehicles during operation.
Servo Control System
An integrated system delivering fast, smooth, and precise door operation. Soft start and stop reduce mechanical impact and extend service life.
Servo Motor
The servo motor gives precise, smooth control at 0.8–2.0 m/s opening speed.
Specifications
| Installation Option | Side Mount |
|---|---|
| Maximum Door Width | 6,000 mm |
| Maximum Door Height | 6,000 mm |
| Opening Speed | 0.8–2.0 m/s |
| Closing Speed | 0.6–0.8 m/s |
| Design Wind Load | 0.2–0.3 kPa |
| Thermal Transmittance | 5.5–6.0 W/(m²·K) |
| Watertightness | Class 1–2 |
| Air Permeability | Class 1–2 |
| Operating Noise | ≤ 60 dB(A) |
| Design Service Life | ≥ 800,000 cycles |
| Operating Temperature | −20 °C to +50 °C (door, per catalogue). Servo drives: A0 / A1 −10 °C to +50 °C; A2 −10 °C to +40 °C; A4 −10 °C to +40 °C, or −20 °C to +50 °C at half load. Confirm the site temperature range per project. |
| Safety Devices | Wireless Safety Edge / Photoelectric Safety Sensor / Safety Bollard (Optional) |
| Control Methods | Radar Control / Inductive Loop / Remote Control / Push Button / etc. |
Servo motor options
| Series | Model | Motor power | Shielded cable length | Control box |
|---|---|---|---|---|
| A0 | PE101 | 0.55 kW | 3 m | A0 |
| A0 | PE201 | 0.75 kW | 4 m | A0 |
| A0 | PE302 | 1.1 kW | 5 m | A0 |
| A0 | PE502 | 1.5 kW | 5 m | A0 |
| A1 | PE111 | 0.55 kW | 3 m | A1 (PE 111/210/510) |
| A1 | PE210 | 0.75 kW | 4 m | A1 (PE 111/210/510) |
| A1 | PE510 | 1.5 kW | 5 m | A1 (PE 111/210/510) |
| A1 | PE715 | 2.2 kW | 8 m | A1 (PE 715/915) |
| A1 | PE915 | 3.8 kW | 15 m | A1 (PE 715/915) |
| A2 | PE200 | 0.75 kW | 4 m | A2 |
| A2 | PE500 | 0.75 kW | 5 m | A2 |
| A4 | PE200 | 0.75 kW | 4 m | A4 |
| A4 | PE500 | 1.5 kW | 5 m / 8 m / 11 m | A4 |
| A4 | PE700B | 2.2 kW | 8 m | A4 |
All models: AC220V ±10%, LCD display (Chinese/English). Transcribed from the image captions in the CUBIXY catalogue.
Options & configuration
Curtain Options

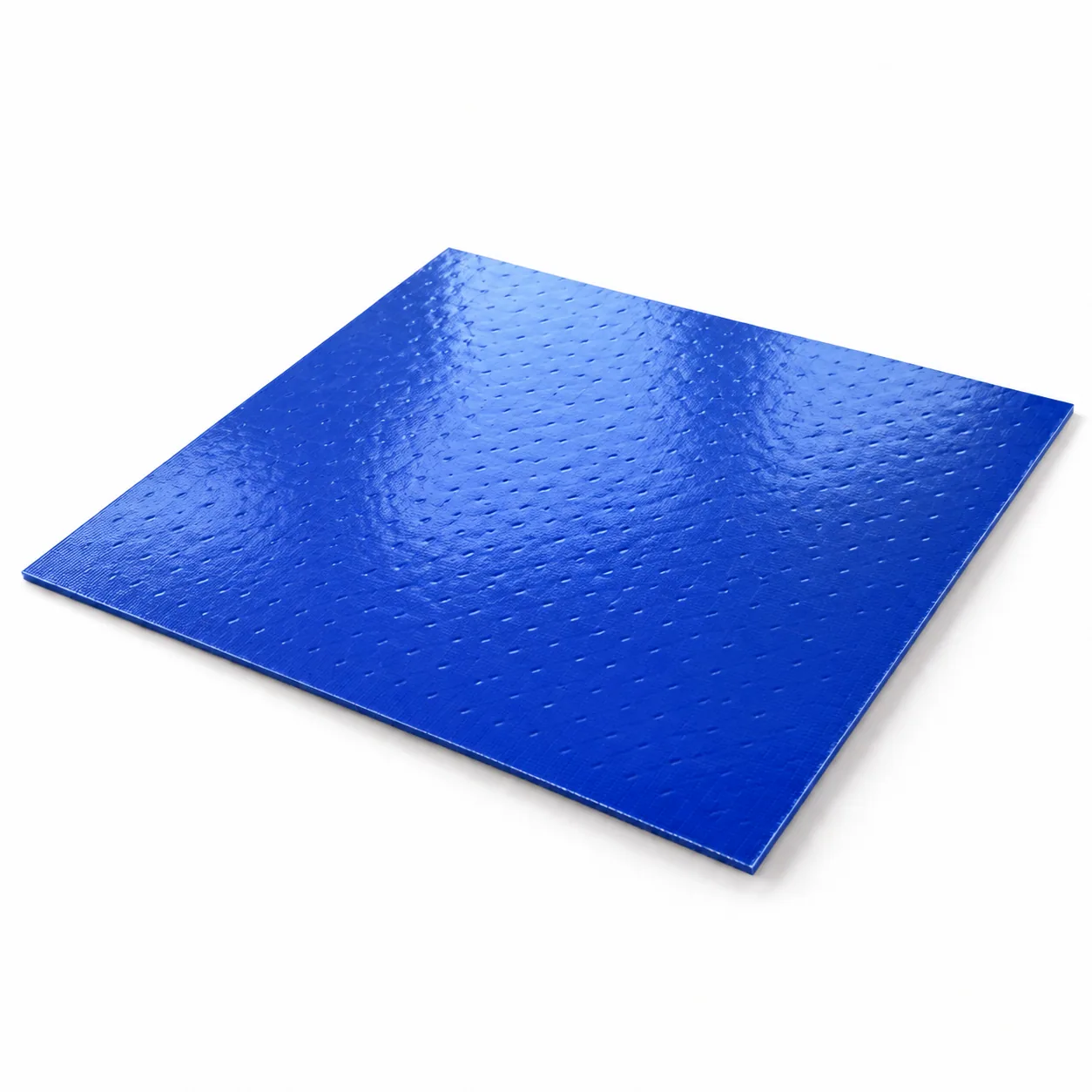

0.8 mm PVC-Coated Fabric

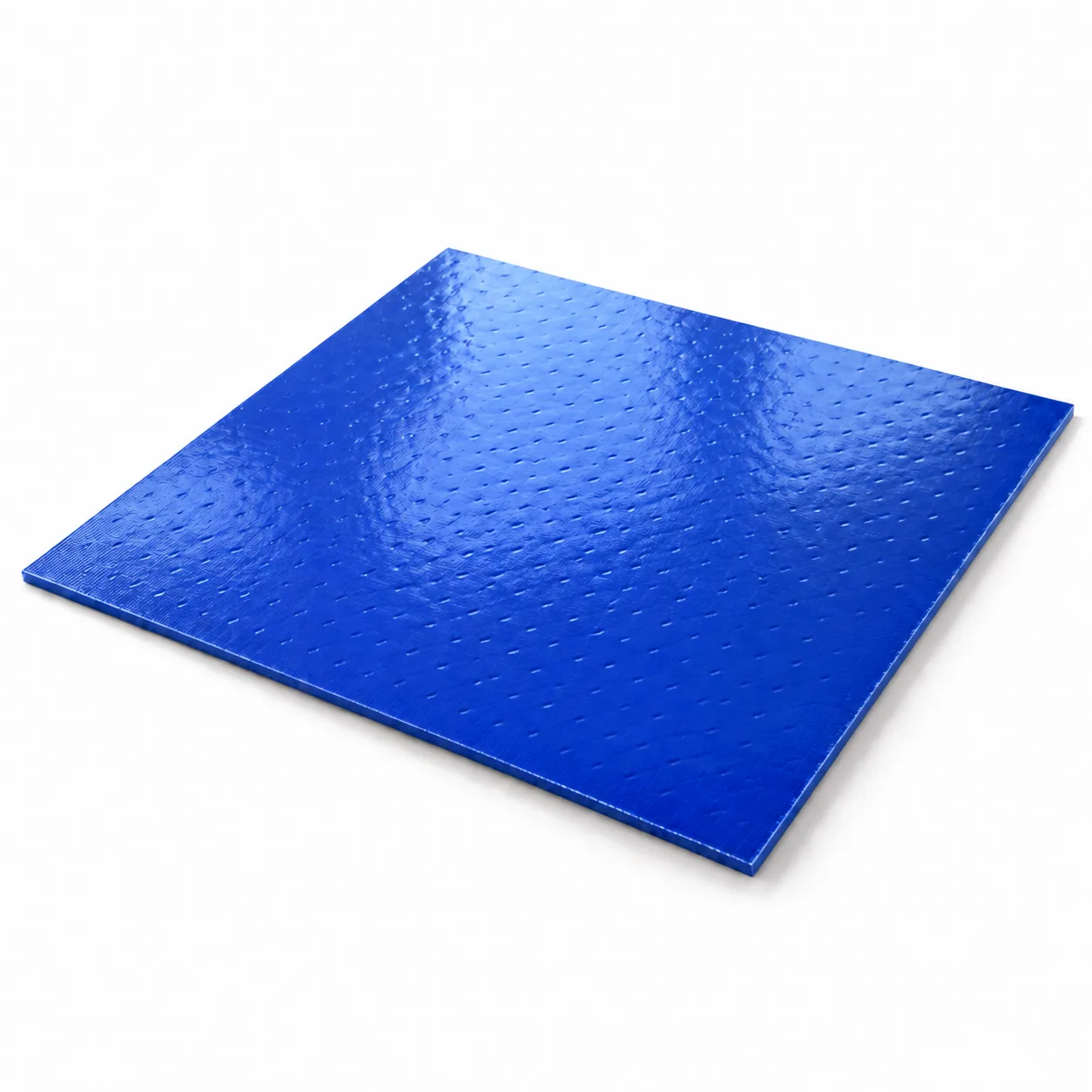

1.0 mm PVC-Coated Fabric
1.2 mm PVC-Coated Fabric
Servo Motors
Full specifications in the table below.
A0 PE101
0.55 kW · cable 3 m
A0 PE201
0.75 kW · cable 4 m
A0 PE302
1.1 kW · cable 5 m
A0 PE502
1.5 kW · cable 5 m
A1 PE111
0.55 kW · cable 3 m
A1 PE210
0.75 kW · cable 4 m
A1 PE510
1.5 kW · cable 5 m
A1 PE715
2.2 kW · cable 8 m
A1 PE915
3.8 kW · cable 15 m
A2 PE200
0.75 kW · cable 4 m
A2 PE500
cable 5 m
A4 PE200
0.75 kW · cable 4 m
A4 PE500
1.5 kW · cable 5 m / 8 m / 11 m
A4 PE700B
2.2 kW · cable 8 m
Servo Control System Options
A0 PE 101/201/302/502
One control-box design for A0 PE 101/201/302/502; LCD display (Chinese/English).
A1 PE 111/210/510
One control-box design for A1 PE 111/210/510; LCD display (Chinese/English).
A1 PE 715/915
One control-box design for A1 PE 715/915; LCD display (Chinese/English).
A2 PE 200/500
One control-box design for A2 PE 200/500; LCD display (Chinese/English).
A4 PE 200/500/700B
One control-box design for A4 PE 200/500/700B; LCD display (Chinese/English).
Other Options

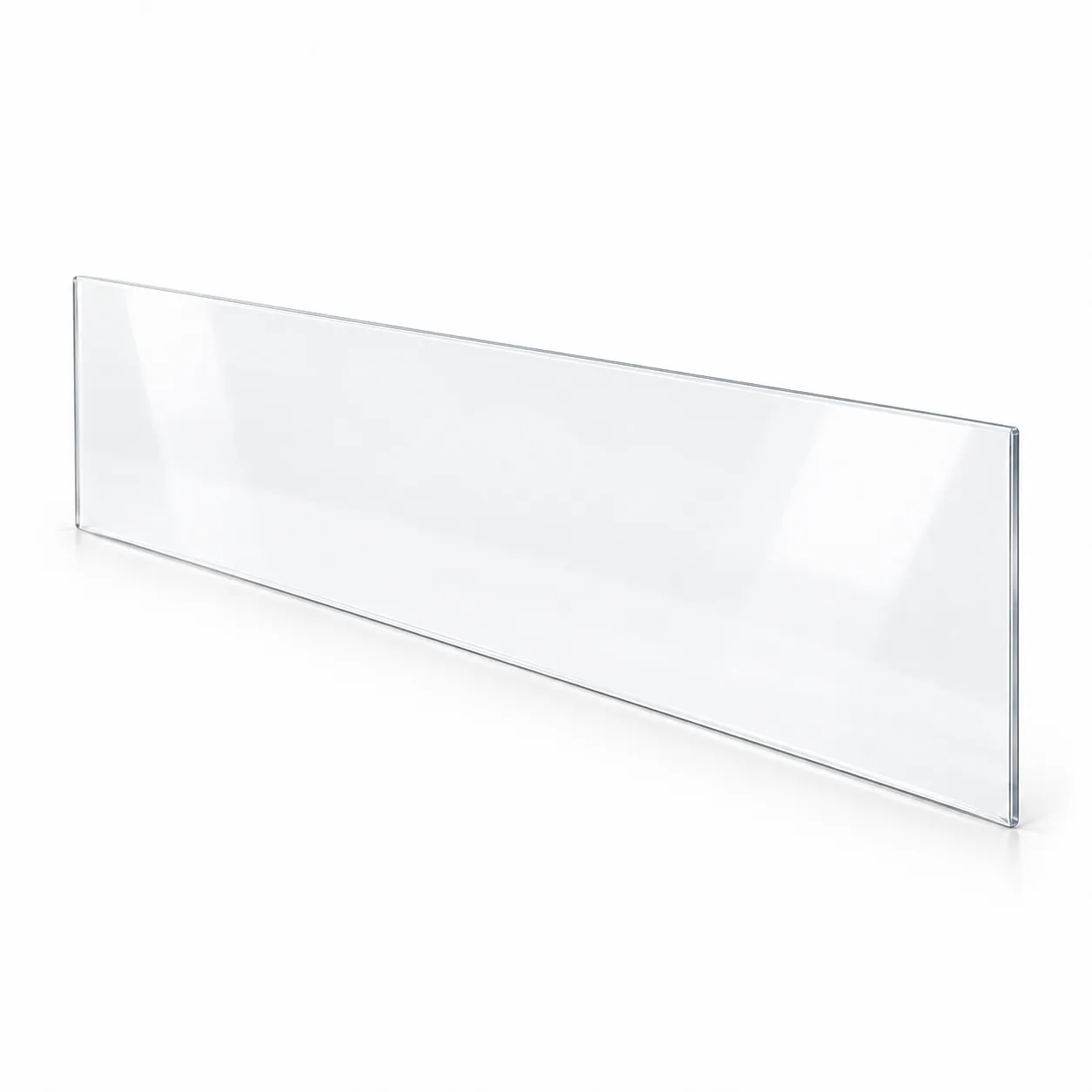

0.8 mm High-Transparency PVC Vision Panel

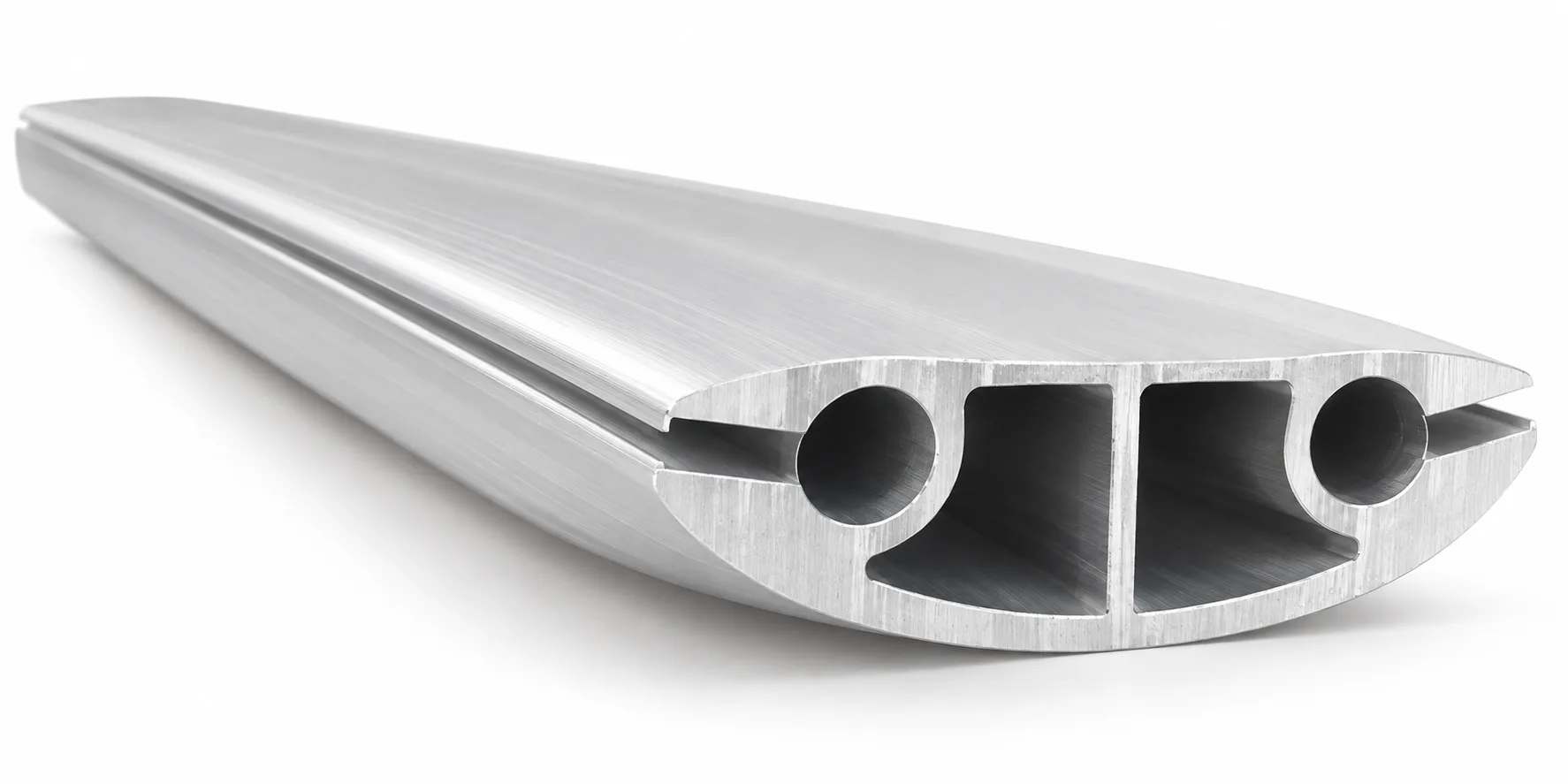

Aluminum Alloy Wind-Resistant Rib
Frequently Asked Questions
- How fast does the PVC high speed door open and close?
- Opening speed is 0.8–2.0 m/s and closing speed is 0.6–0.8 m/s, driven by a servo motor and servo control system with soft start and stop.
- What is the maximum size and design service life?
- Up to 6,000 mm wide and 6,000 mm high (side mount), with a design service life of at least 800,000 cycles.
- Which control methods are available?
- Radar control, geomagnetic loop, remote control and push button, among others.
- What curtain thicknesses are offered?
- PVC-coated fabric curtains in 0.8 mm, 1.0 mm and 1.2 mm. A 0.8 mm high-transparency PVC vision panel and aluminum alloy wind-resistant ribs are optional.
