High Speed Spiral Door

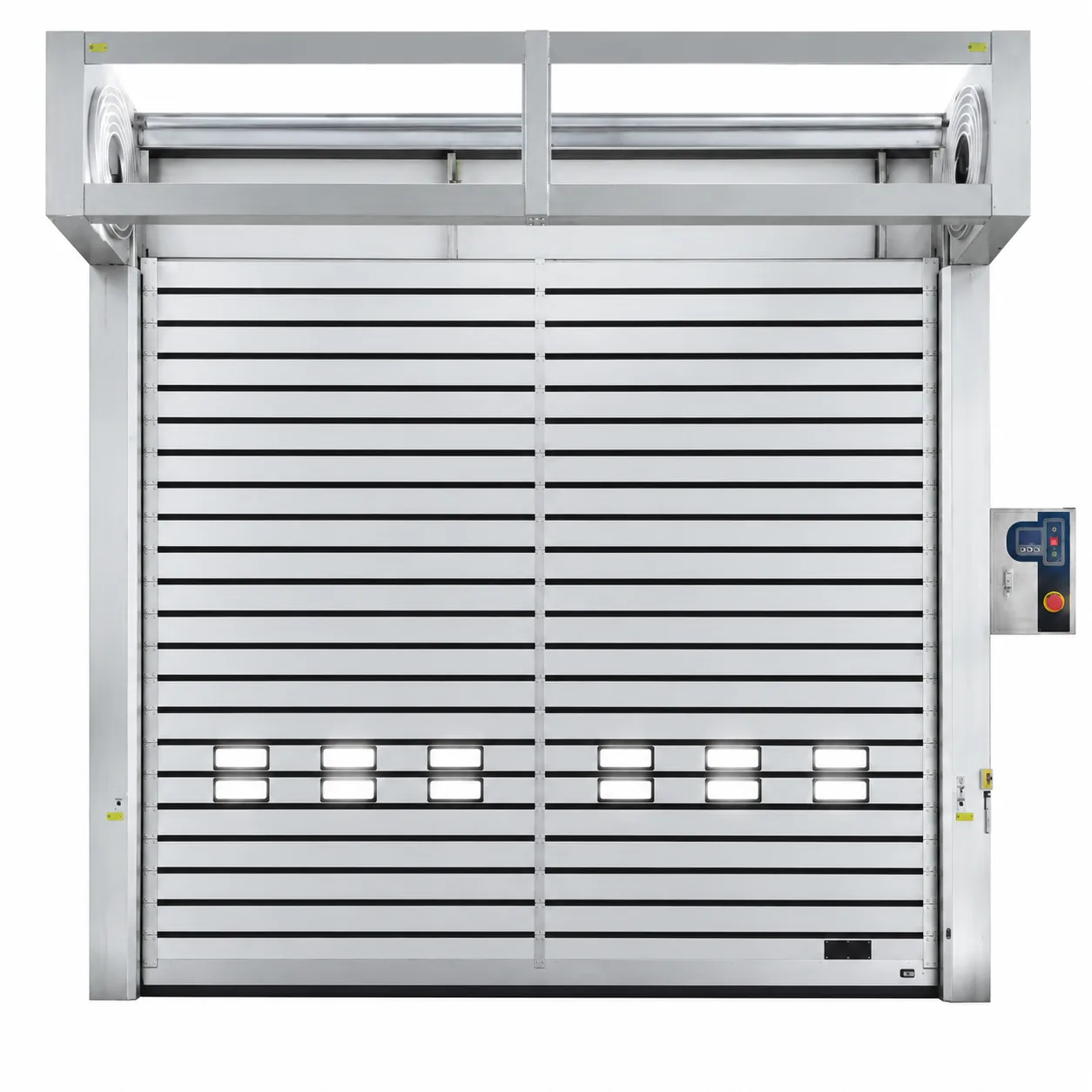

Aluminum high speed spiral door up to 8,000 × 10,000 mm with PU-filled aluminum slats, 0.8–2.0 m/s opening speed and 1.0–3.5 kPa design wind load, for warehouses, logistics centers, workshops and underground garages.
Key specifications
- Opening Speed: 0.8–2.0 m/s
- Closing Speed: 0.6–0.8 m/s
- Design Wind Load: 1.0–3.5 kPa
- Thermal Transmittance: 1–1.5 W/(m²·K)
- Watertightness: Class 2–3
- Max. door size (W × H)
- 8,000 × 10,000mm
- Opening speed
- 0.8–2.0m/s
- Thermal transmittance
- 1–1.5W/(m²·K)
- Design service life
- ≥ 800,000cycles
Product details
The high speed spiral door has PU-filled aluminum alloy slats guided in a non-contact spiral track. It opens at 0.8–2.0 m/s and is designed for wind loads of 1.0–3.5 kPa, for busy openings that also need wind resistance and insulation. Typical applications include warehouses, logistics centers, manufacturing workshops, automotive facilities, underground garages, and commercial buildings.
Key features
Telescopic Transmission Shaft
Telescopic splined transmission shaft designed to be maintenance-free.
Double-spiral Turbo Guide Rails
Adopting a double-spiral structural design, the non-contact guide rails minimize resistance and friction between the curtain slats and the rails.
High-strength Curtain Slats
Featuring double-sided aluminum alloy with polyurethane foam filling, the curtain slats are available in thicknesses up to 80 mm, offering excellent wind resistance, thermal insulation, and noise reduction.
Safety Devices
Wireless safety edge and photoelectric safety sensor protect people and vehicles during operation.
Servo Control System
An integrated system delivering fast, smooth, and precise door operation. Soft start and stop reduce mechanical impact and extend service life.
Servo Motor
The servo motor gives precise, smooth control at 0.8–2.0 m/s opening speed.
Specifications
| Installation Options | Inside Mount / Side Mount |
|---|---|
| Maximum Door Width | 8,000 mm |
| Maximum Door Height | 10,000 mm |
| Opening Speed | 0.8–2.0 m/s |
| Closing Speed | 0.6–0.8 m/s |
| Design Wind Load | 1.0–3.5 kPa |
| Thermal Transmittance | 1–1.5 W/(m²·K) |
| Watertightness | Class 2–3 |
| Air Permeability | Class 2–3 |
| Operating Noise | ≤ 65 dB(A) |
| Design Service Life | ≥ 800,000 cycles |
| Operating Temperature | −20 °C to +50 °C (door, per catalogue). Servo drives: A1 −10 °C to +50 °C; A4 −10 °C to +40 °C, or −20 °C to +50 °C at half load. Confirm the site temperature range per project. |
| Safety Devices | Wireless Safety Edge / Photoelectric Safety Sensor / Infrared Safety Light Curtain (Optional) |
| Control Methods | Push Button / Remote Control / Radar Control / Inductive Loop / etc. |
Servo motor options
| Series | Model | Motor power | Shielded cable length | Control box |
|---|---|---|---|---|
| A1 | PE215 | 0.75 kW | 4 m | A1 PE 215/515/715/915 |
| A1 | PE515 | 1.5 kW | 5 m | A1 PE 215/515/715/915 |
| A1 | PE715 | 2.2 kW | 8 m (standard cable) | A1 PE 215/515/715/915 |
| A1 | PE915 | 3.8 kW | 15 m | A1 PE 215/515/715/915 |
| A4 | PE200 | 0.75 kW | 4 m | A4 PE 200/500/700B |
| A4 | PE500 | 1.5 kW | 5 m / 8 m / 11 m | A4 PE 200/500/700B |
| A4 | PE700B | 2.2 kW | 8 m | A4 PE 200/500/700B |
All models: AC220V ±10%, LCD display (Chinese/English). Transcribed from the image captions in the CUBIXY catalogue.
Options & configuration
Control Options

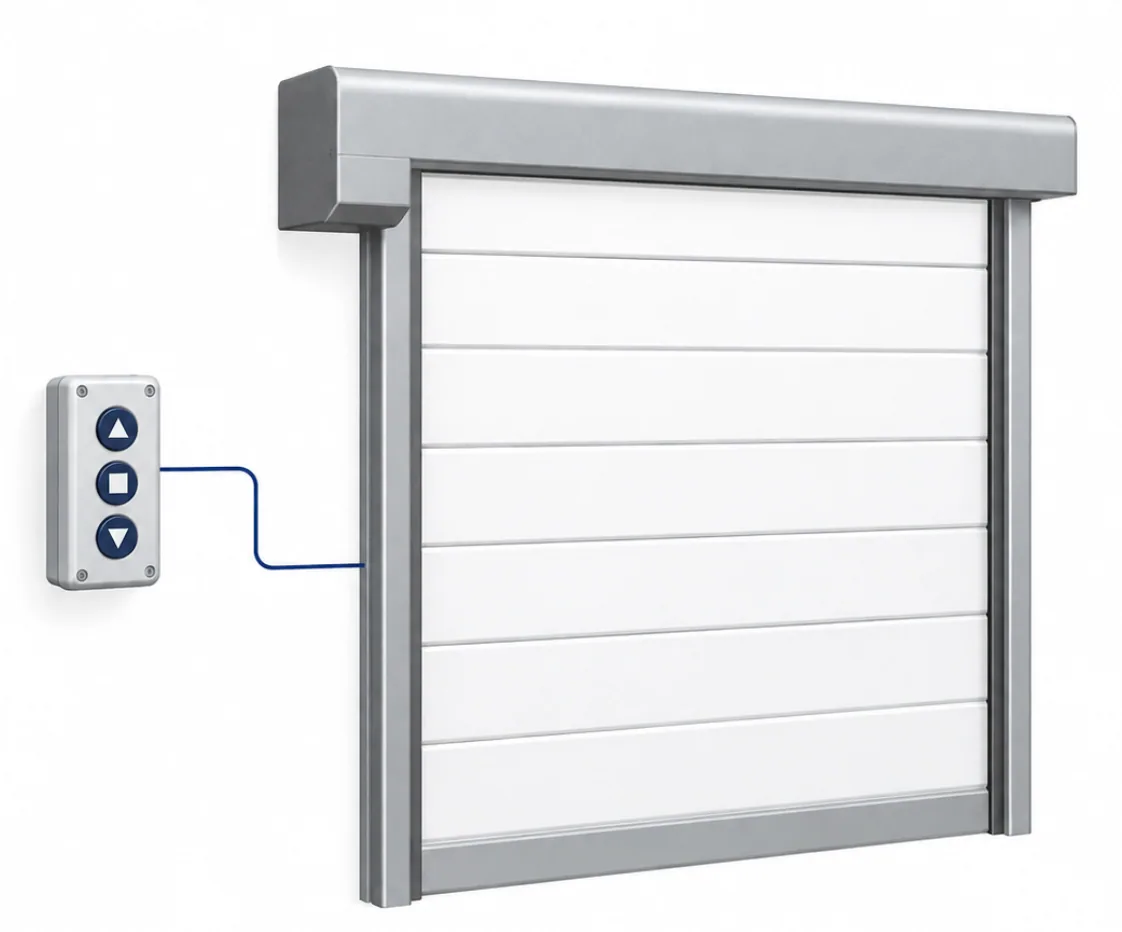

Push Button

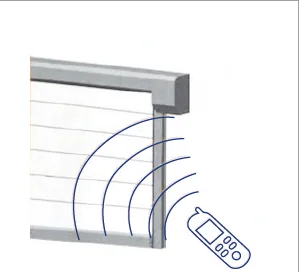

Remote Control
Radar Control

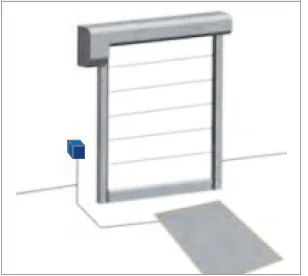

Inductive Loop
Lift Options

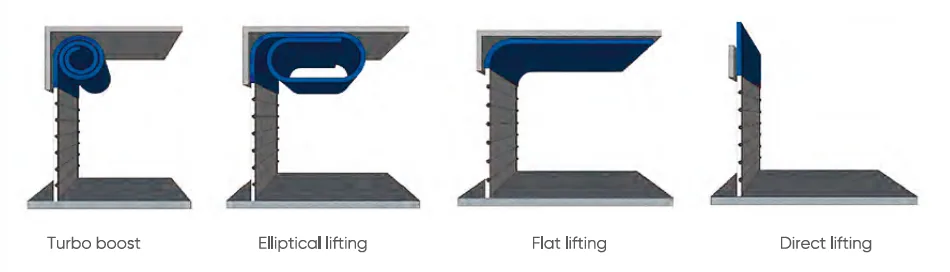

Left to right in the diagram: turbo lift, elliptical lift, flat lift, vertical lift.
Curtain Slat Options
| ADI 25 | 100 mm height; 1.2 mm aluminum alloy + PU foam |
|---|---|
| ADI 40 | 120 mm height; 1.2 mm aluminum alloy + PU foam |
| ADI 40 | 220 mm height; 0.7 mm aluminum alloy + PU foam |
| ADI 60 | 220 mm height; 0.7 mm aluminum alloy + PU foam |
| ADI 80 | 220 mm height; 0.7 mm aluminum alloy + PU foam |
Servo Motors
Full specifications in the table below.
A1 PE215
0.75 kW · cable 4 m
A1 PE515
1.5 kW · cable 5 m
A1 PE715
2.2 kW · cable 8 m (standard cable)
A1 PE915
3.8 kW · cable 15 m
A4 PE200
0.75 kW · cable 4 m
A4 PE500
1.5 kW · cable 5 m / 8 m / 11 m
A4 PE700B
2.2 kW · cable 8 m
Servo Control System Options

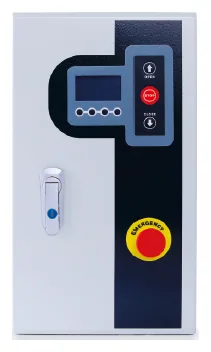

A1 PE 215/515/715/915
One control-box design for A1 PE 215/515/715/915; LCD display (Chinese/English).
A4 PE 200/500/700B
One control-box design for A4 PE 200/500/700B; LCD display (Chinese/English).
Other Options

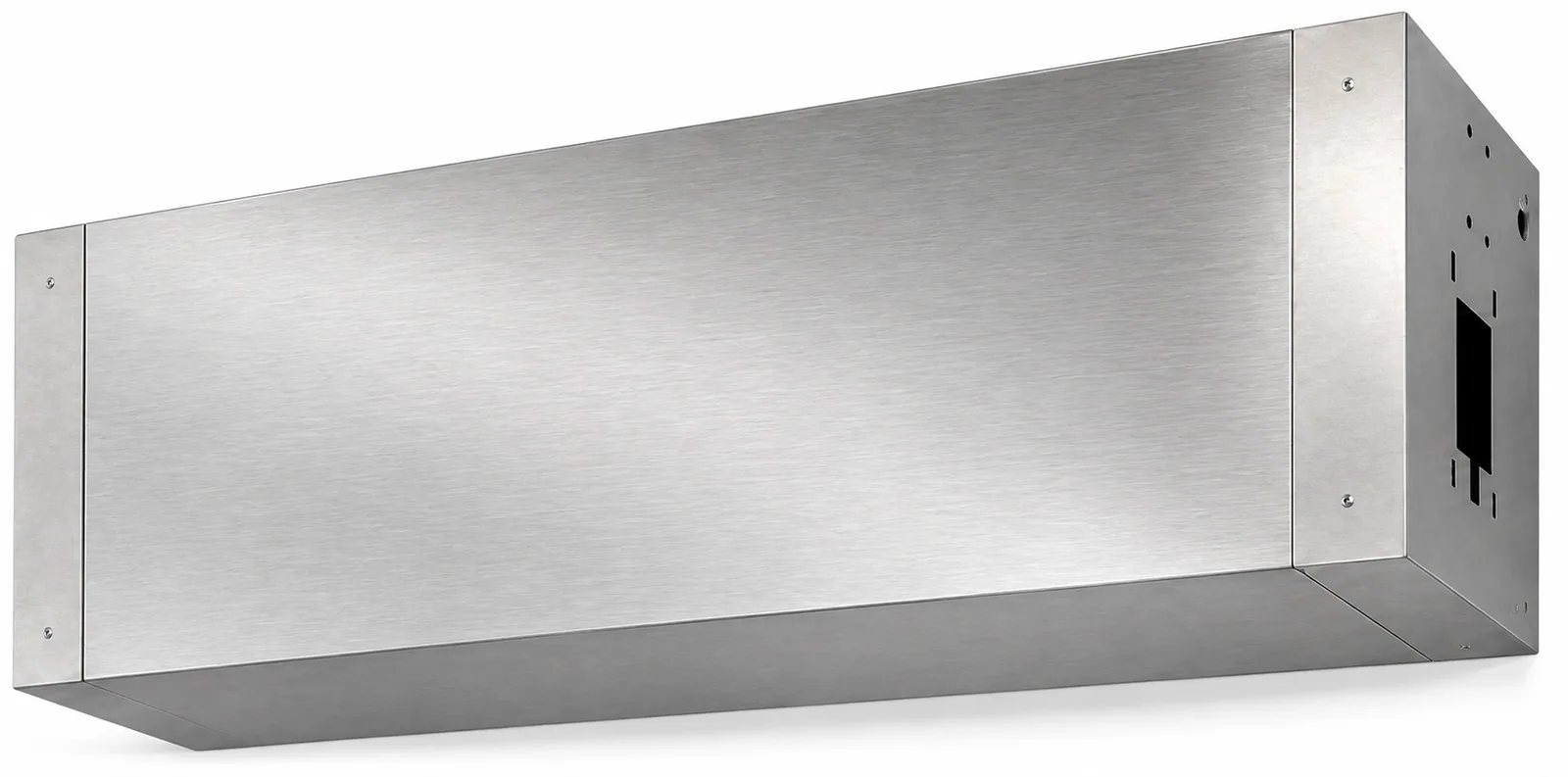

0.8/1.0 mm Galvanized Steel Hood

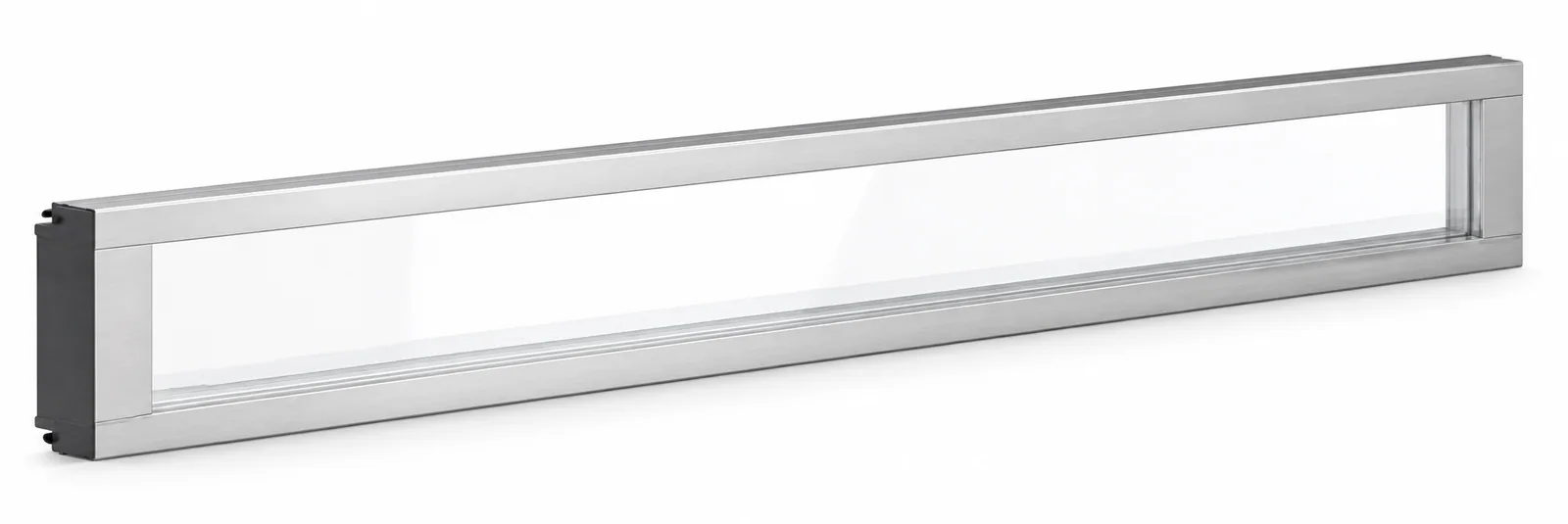

Double-layer Polycarbonate Vision Panel
Frequently Asked Questions
- What is the maximum size of the high speed spiral door?
- Up to 8,000 mm wide and 10,000 mm high, inside-mounted or side-mounted.
- What are the operating speeds and design wind load?
- Opening speed is 0.8–2.0 m/s and closing speed 0.6–0.8 m/s; the design wind load is 1.0–3.5 kPa.
- How well does it insulate?
- The double-sided aluminum alloy slats are filled with polyurethane foam; thermal transmittance is 1–1.5 W/(m²·K), with watertightness and air permeability of class 2–3.
- Which lift options are available?
- Turbo lift, elliptical lift, flat lift and vertical lift.
Ask about High Speed Spiral Door
Tell us the opening size (W × H), door type, application, performance requirements (fire, wind, insulation), control method, quantity and project location. We reply by email with a specification and quotation.
