EN Steel Insulated Fire Roller Shutter
Steel insulated fire roller shutter rated to EN 1634-1 (EI 120 or EI 240) for fire compartmentation in industrial, commercial and public buildings.
Key specifications
- Fire Resistance Rating: ≥120 min / 240 min
- Opening Speed: 0.1 m/s
- Closing Speed: 0.1 m/s
- Safety Devices: Thermal Release Device / Smoke & Heat Detector (Optional)
- Control Methods: Push Button / Fire Alarm Interlock
- Integrity and insulation, rated to EN 1634-1 (EI 120 / EI 240)
- 120 / 240min
- EI 120 slat steel, with fireproof filler
- 0.7mm
- Curtain slats for EI 120
- GDI / SDI 60
- Curtain slats for EI 240
- GDI / SDI 100
Product details
The EN steel insulated fire roller shutter door is rated to EN 1634-1:2014+A1:2018, with fire-resistance and thermal-insulation ratings of 120 or 240 minutes. It is used for fire compartmentation in industrial, commercial and public buildings.
Specifications
| Fire Resistance Rating | ≥120 min / 240 min |
|---|---|
| Installation Options | Inside Mount / Side Mount |
| Opening Speed | 0.1 m/s |
| Closing Speed | 0.1 m/s |
| Safety Devices | Thermal Release Device / Smoke & Heat Detector (Optional) |
| Control Methods | Push Button / Fire Alarm Interlock |
Standards & ratings
Rating as stated in the CUBIXY product catalogue. The certificates are held by our partner manufacturer.
- EN 1634-1EI 120 / EI 240
Fire resistance and thermal insulation
Rated to EN 1634-1:2014+A1:2018, the European fire-resistance test for door and shutter assemblies: integrity and insulation (EI) for 120 or 240 minutes.
Standard: EN 1634-1:2014+A1:2018
Certificate
Certificate documents pending
Options & configuration
Curtain Slat Options: EI 120

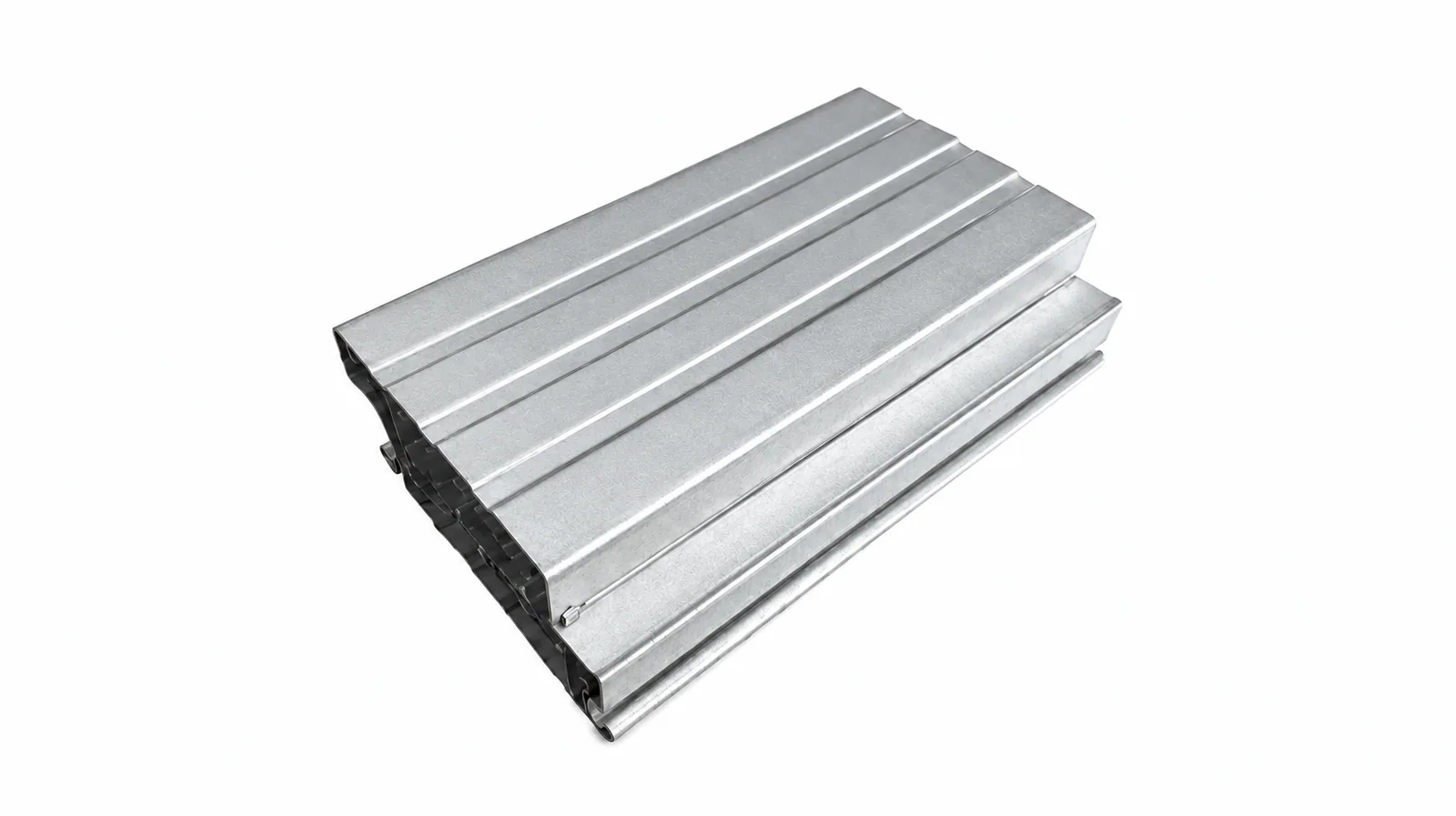

GDI 60
0.7 mm + Fireproof Filler

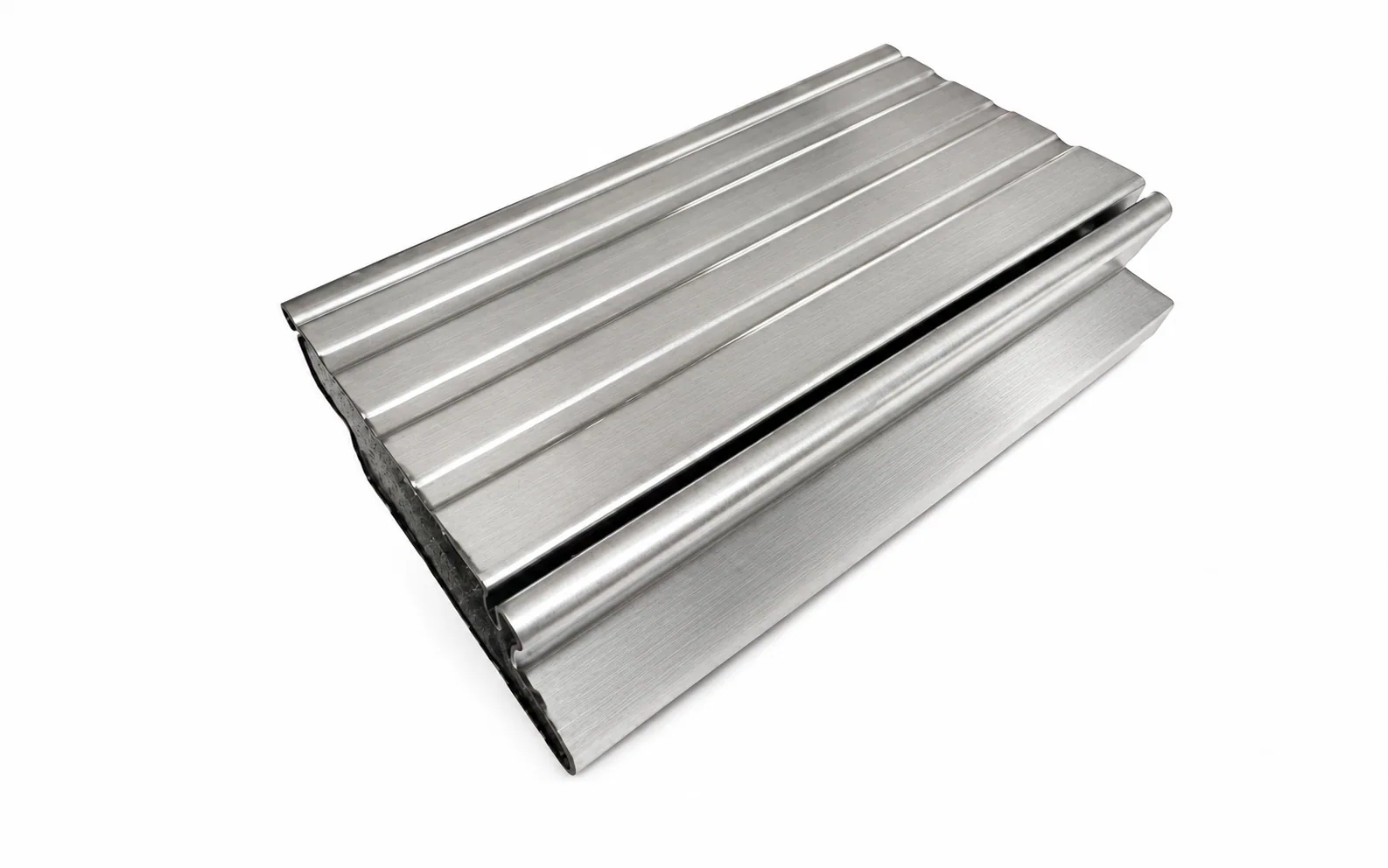

SDI 60
0.7 mm + Fireproof Filler
Curtain Slat Options: EI 240

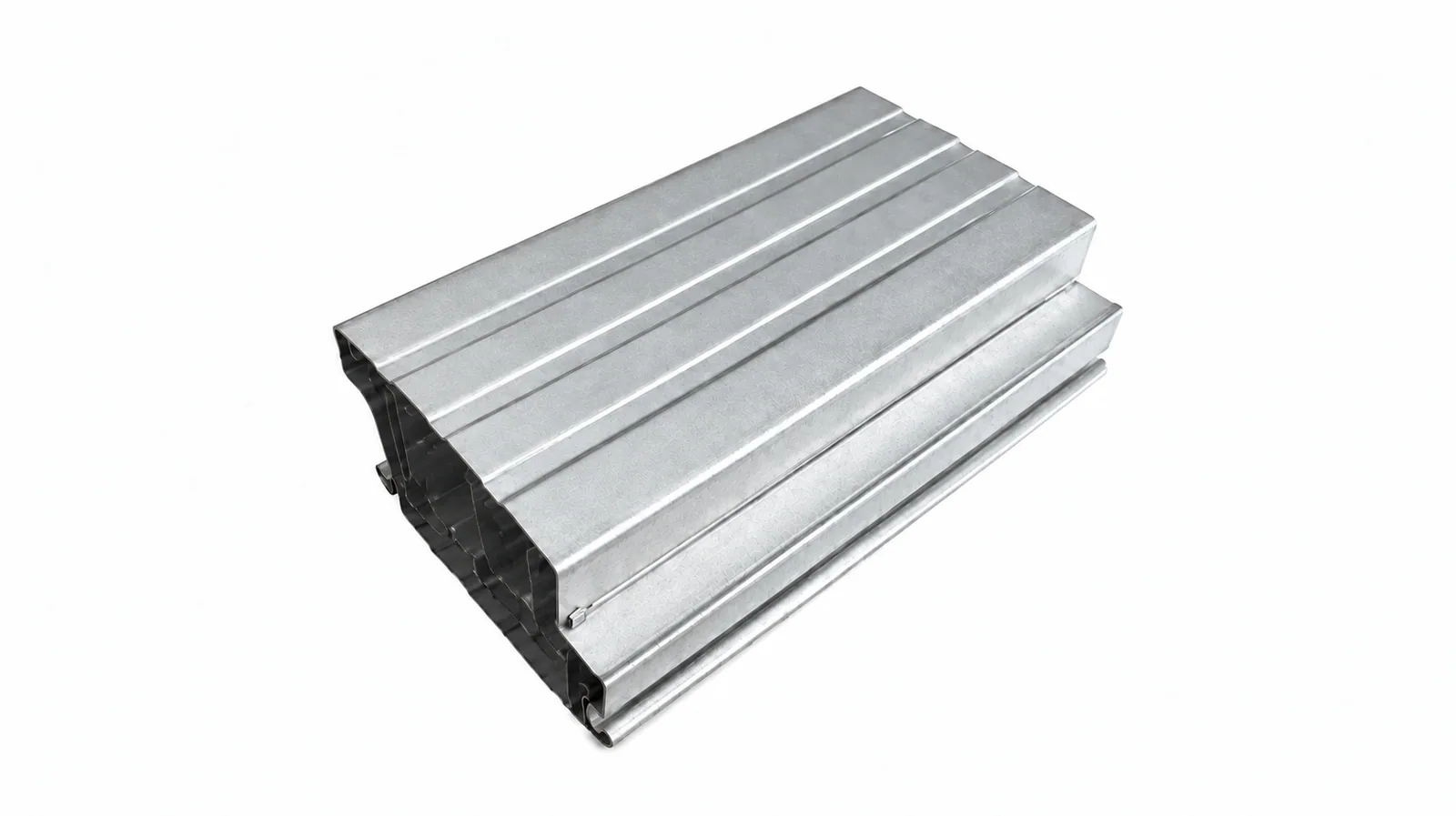

GDI 100
Fireproof Filler

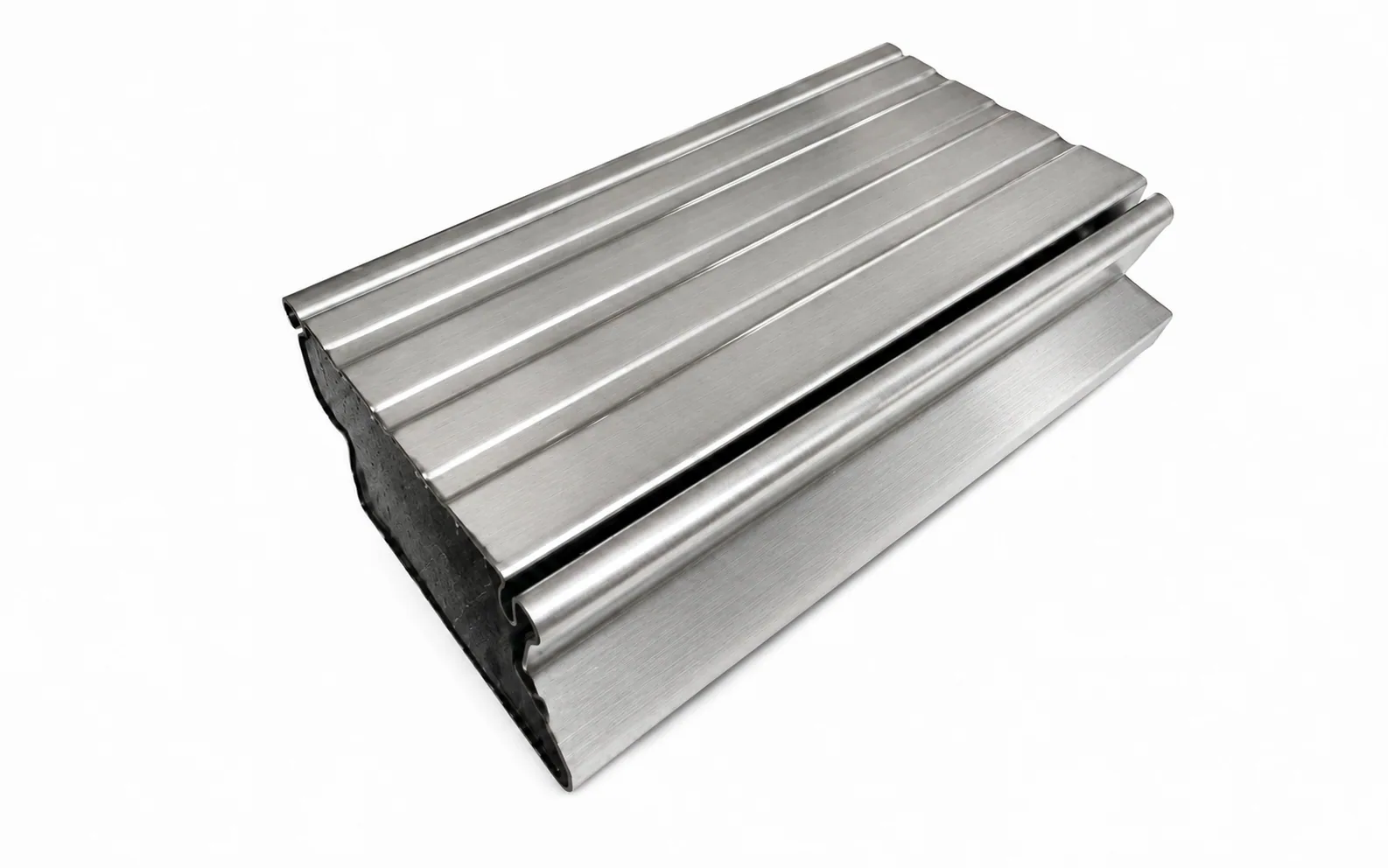

SDI 100
Fireproof Filler
Frequently Asked Questions
- Which fire standard and rating is the EN fire shutter rated to?
- It is rated to EN 1634-1:2014+A1:2018, with fire-resistance and thermal-insulation ratings of 120 minutes (EI 120) or 240 minutes (EI 240).
- Which curtain slats are used for EI 120 and EI 240?
- EI 120 uses GDI 60 or SDI 60 slats of 0.7 mm steel with fireproof filler; EI 240 uses GDI 100 or SDI 100 slats with fireproof filler.
- How is the shutter controlled and released in a fire?
- Control is by push button or fire alarm interlock. A thermal release device is fitted, and smoke and heat detectors are optional. Opening and closing speed is 0.1 m/s.
Ask about EN Steel Insulated Fire Roller Shutter
Tell us the opening size (W × H), door type, application, performance requirements (fire, wind, insulation), control method, quantity and project location. We reply by email with a specification and quotation.
