UL Steel Fire Shutter Door
Steel fire shutter door rated to UL 10B with a 180-minute fire-resistance rating, for fire compartmentation in industrial, commercial and public buildings.
Key specifications
- Fire Resistance Rating: 180 min (3 h)
- Opening Speed: 0.1 m/s
- Closing Speed: 0.1 m/s
- Safety Devices: Thermal Release Device / Smoke & Heat Detector (Optional)
- Control Methods: Push Button / Fire Alarm Interlock
- Fire resistance, rated to UL 10B
- 180 min (3h)
- Opening and closing speed
- 0.1m/s
- PPS 100 curtain slat (standard)
- 1.5mm
- Aluminum-zinc coated steel guide rail (standard)
- 2.0mm
Product details
The UL steel fire roller shutter door is rated to UL 10B, with a fire-resistance rating of 180 minutes. It is used for fire compartmentation in industrial, commercial and public buildings.
Specifications
| Fire Resistance Rating | 180 min (3 h) |
|---|---|
| Installation Options | Inside Mount / Side Mount |
| Opening Speed | 0.1 m/s |
| Closing Speed | 0.1 m/s |
| Safety Devices | Thermal Release Device / Smoke & Heat Detector (Optional) |
| Control Methods | Push Button / Fire Alarm Interlock |
Standards & ratings
Rating as stated in the CUBIXY product catalogue. The certificates are held by our partner manufacturer.
- UL 10B180 min
Fire resistance
Rated to UL 10B, the UL fire test for door assemblies, with a fire-resistance rating of 180 minutes (3 hours).
Certificate
Certificate documents pending
Options & configuration
Standard configuration

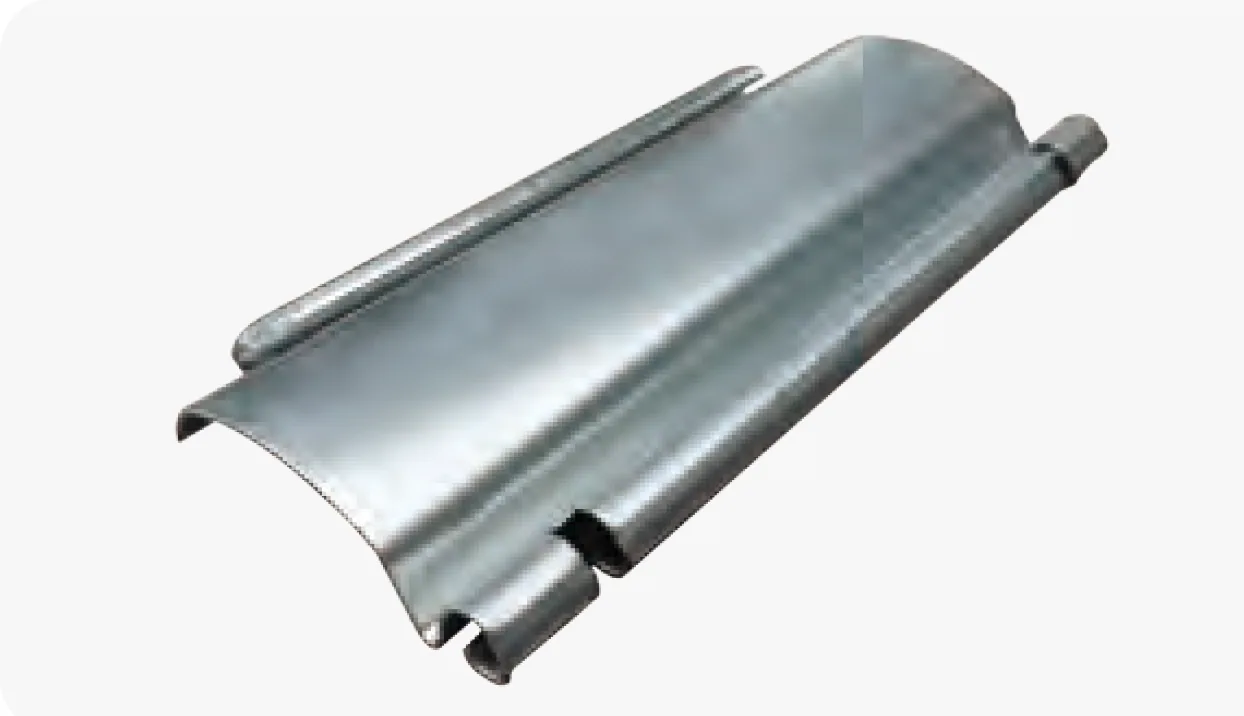

Curtain Slat: PPS 100 1.5 mm
Guide Rail: 2.0 mm Aluminum-Zinc Coated Steel
Frequently Asked Questions
- What fire rating does the UL steel fire shutter have?
- It is rated to UL 10B with a fire-resistance rating of 180 minutes.
- What is the standard configuration?
- A PPS 100 curtain slat in 1.5 mm and a 2.0 mm aluminum-zinc coated steel guide rail. It can be inside-mounted or side-mounted.
- How is the UL fire shutter operated?
- By push button or fire alarm interlock, at 0.1 m/s opening and closing speed, with a thermal release device and optional smoke and heat detectors.
Ask about UL Steel Fire Shutter Door
Tell us the opening size (W × H), door type, application, performance requirements (fire, wind, insulation), control method, quantity and project location. We reply by email with a specification and quotation.
