Industrial Sectional Door
Insulated industrial sectional door up to 8,000 × 10,000 mm with standard, high or vertical lift and 0.5–1.2 W/(m²·K) thermal transmittance, for factories, logistics warehouses and specialized garages that need energy efficiency and airtightness.
Key specifications
- Opening Speed: 0.2 m/s
- Closing Speed: 0.2 m/s
- Design Wind Load: 0.7–2.2 kPa
- Thermal Transmittance: 0.5–1.2 W/(m²·K)
- Watertightness: Class 2–3
- Max. door size (W × H)
- 8,000 × 10,000mm
- Thermal transmittance
- 0.5–1.2W/(m²·K)
- Design wind load
- 0.7–2.2kPa
- Design service life, door system
- ≥ 100,000cycles
Product details
Industrial sectional doors can be customized with various lifting methods to accommodate different overhead spaces and pipeline layouts in factories and warehouses, maximizing the use of available space. Featuring smooth operation, excellent thermal insulation and reliable sealing performance, they are used in factories, logistics warehouses and specialized garages with high requirements for energy efficiency, airtightness and appearance.
Key features
High-strength Torsion Spring
Manufactured from 82B high-carbon steel with a hot-dip galvanized coating, the torsion spring offers excellent fatigue and corrosion resistance for reliable long-term operation.
Wear-resistant Sealing Strip
EPDM rubber sealing strips are fitted along the top and sides, while EPDM air seals and sealing fins at the bottom ensure reliable sealing between the door leaf and the building structure.
High-strength Door Panels
Featuring double-sided aluminum alloy / PPGI with polyurethane foam filling, the door panels are available in thicknesses up to 80 mm, offering excellent wind resistance, thermal insulation, and noise reduction.
Safety Devices
Wireless safety edge and cable break safety device protect people and vehicles during operation.
Drive and control
Opening and closing speeds are both 0.2 m/s; the control system uses soft start and stop to reduce mechanical impact.
Specifications
| Installation Option | Side Mount |
|---|---|
| Maximum Door Width | 8,000 mm |
| Maximum Door Height | 10,000 mm |
| Opening Speed | 0.2 m/s |
| Closing Speed | 0.2 m/s |
| Design Wind Load | 0.7–2.2 kPa |
| Thermal Transmittance | 0.5–1.2 W/(m²·K) |
| Watertightness | Class 2–3 |
| Air Permeability | Class 3–4 |
| Operating Noise | ≤ 65 dB(A) |
| Design Service Life (Door System) | ≥ 100,000 cycles |
| Design Service Life (Torsion Springs) | ≥ 30,000 cycles |
| Operating Temperature | −20 °C to +50 °C |
| Safety Devices | Wireless Safety Edge / Cable Break Safety Device |
| Control Methods | Push Button / Remote Control / Pull Switch / Radar Control / Inductive Loop / etc. |
Door operator options
| Model | Torque | Standard cable length |
|---|---|---|
| C25 | 25 N·m | 3 m |
| C40 | 40 N·m | 5 m |
| C60 | 60 N·m | 6 m |
| C90 | 90 N·m | 9 m |
| C120 | 120 N·m | 9 m |
| C500 | 500 N·m | 9 m |
Industrial door operators, AC220V ±10%, LCD display (Chinese/English). One control box covers all six models. Transcribed from the image captions in the CUBIXY catalogue.
Options & configuration

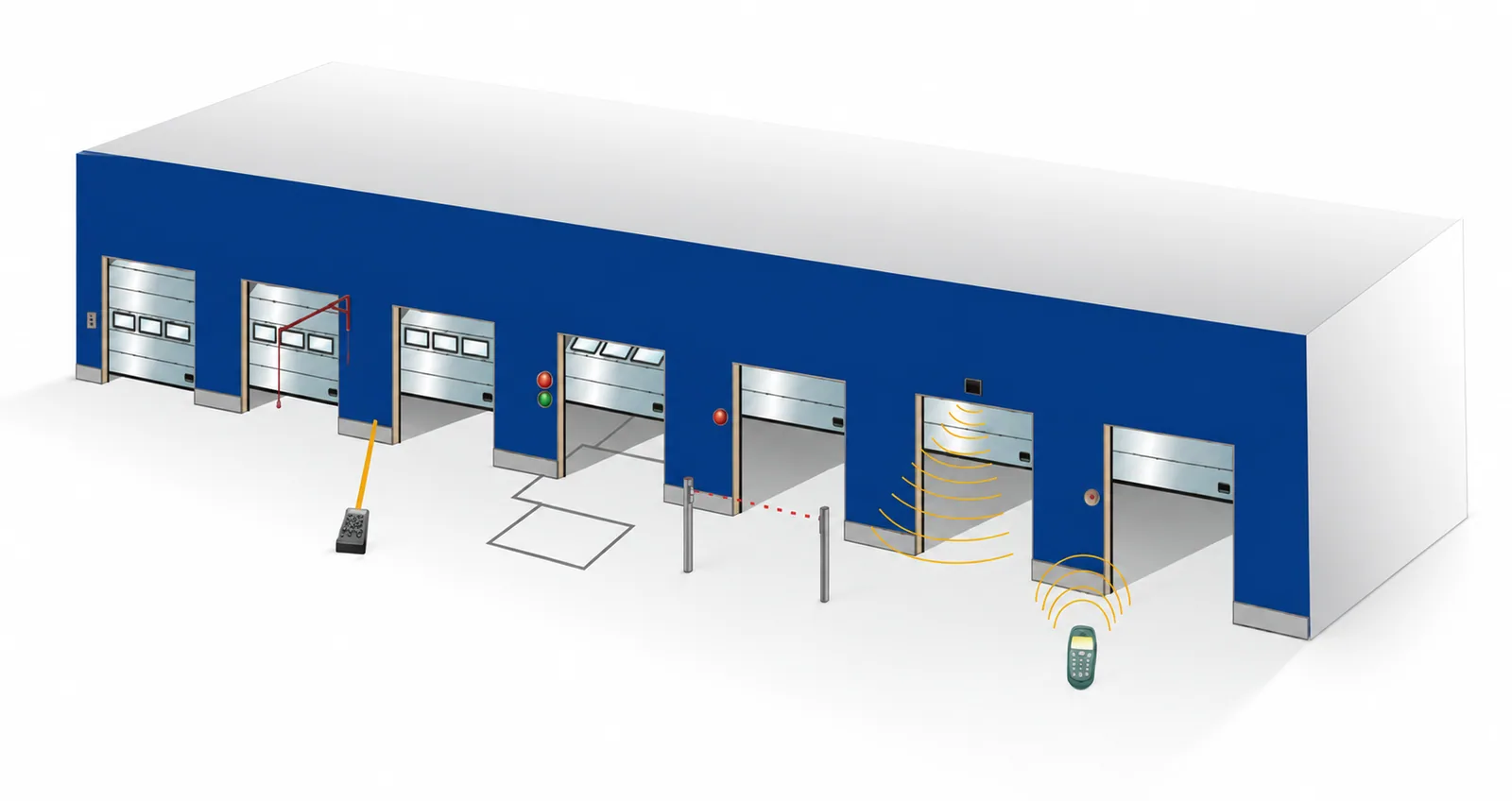

Control Options
| Push-button Control | Local control for opening and closing, usually installed beside the doorway. |
|---|---|
| Remote Control | Supports flexible wireless operation with one-to-one, one-to-many, and many-to-one configurations. |
| Pull-switch Control | Allows vehicle operators to open the door without leaving the vehicle for convenient access. |
| Radar Control | Detects approaching moving objects and automatically activates door opening. |
| Inductive Loop Control | Detects vehicles and other metal objects while minimizing activation by pedestrians and unnecessary door cycles. |
| Centralized Control | Integrates multiple doors with a centralized control box or remote system for coordinated management. |
Access & Vision Options
Vision panels: polycarbonate.

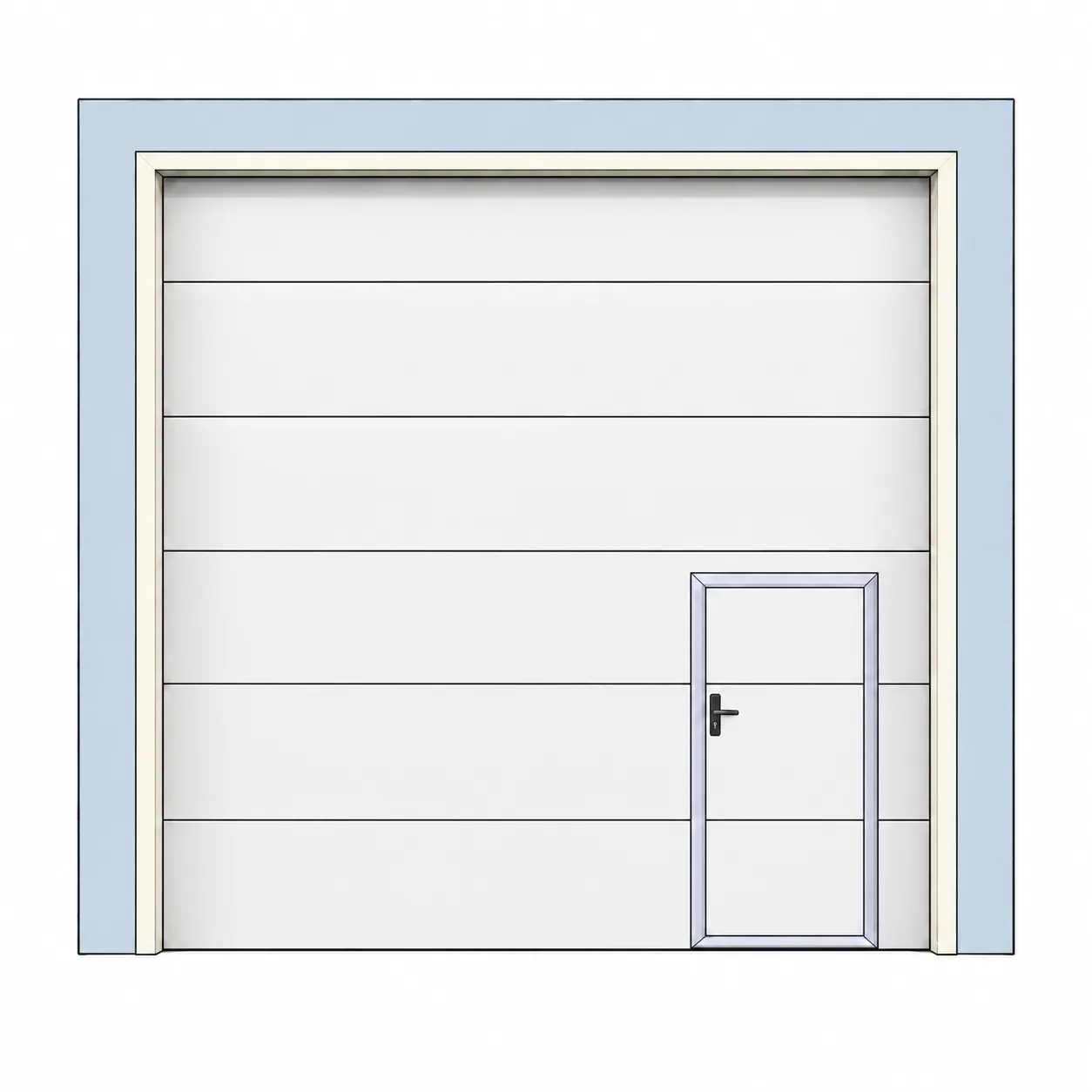

Door with Wicket Door

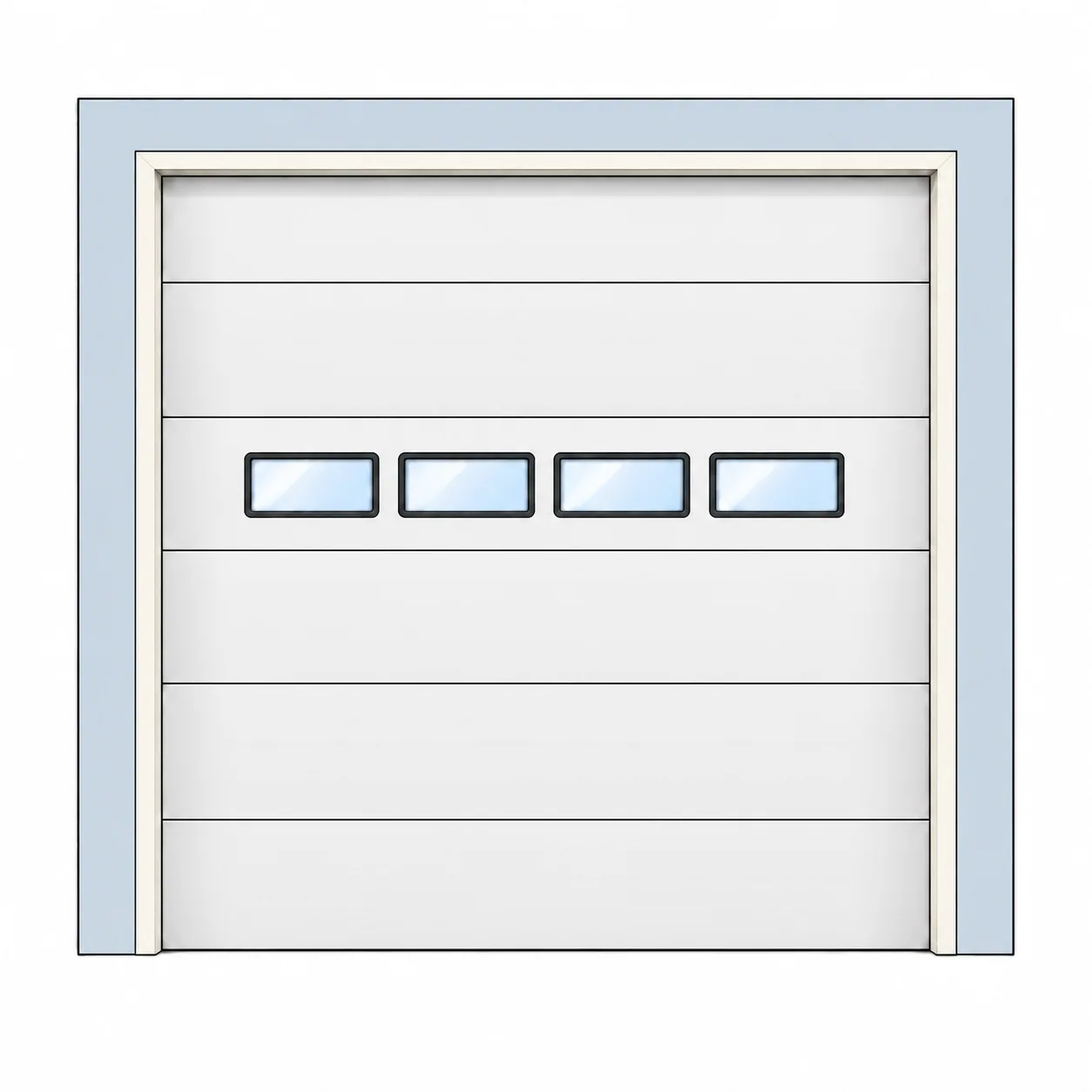

Door with Vision Panel

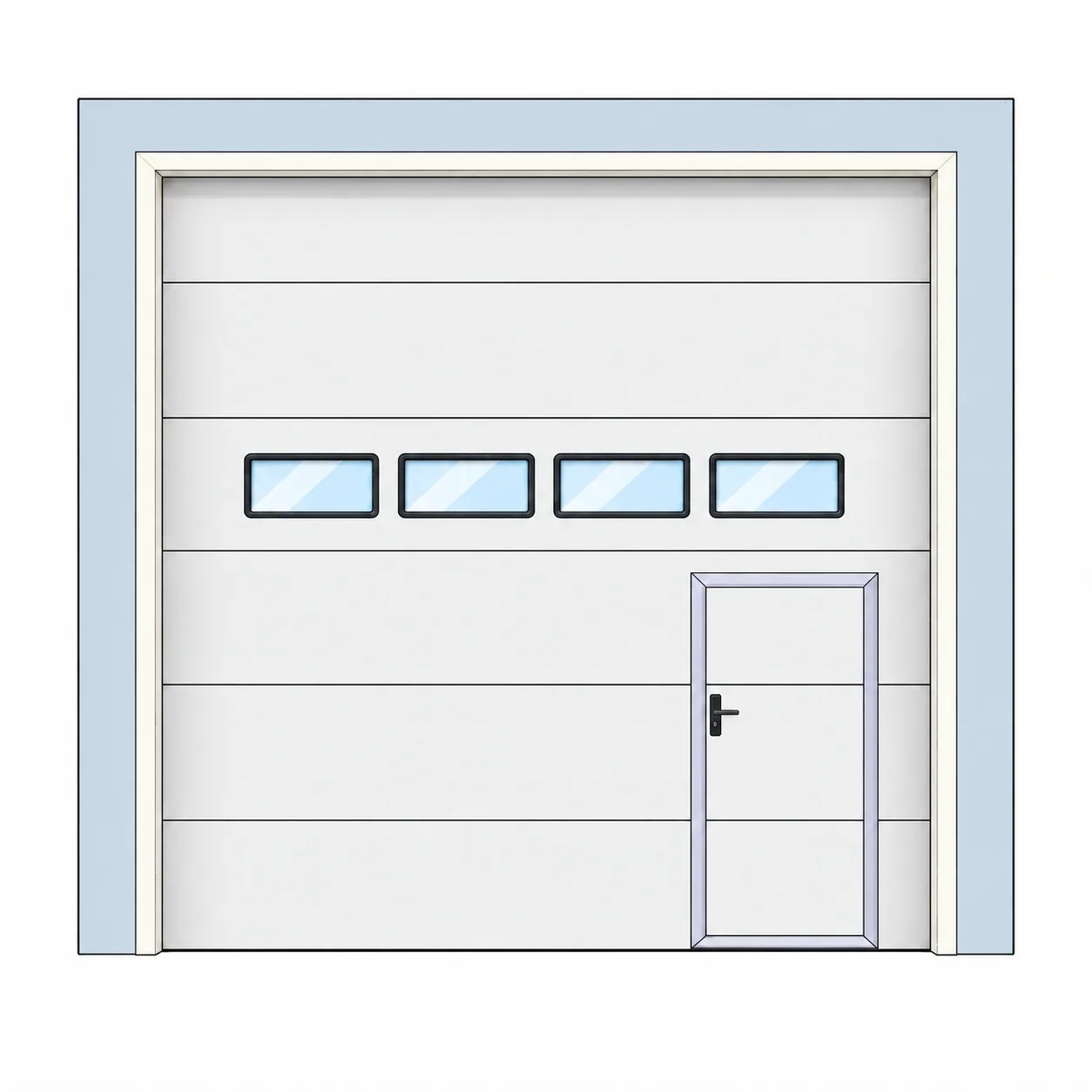

Door with Wicket Door & Vision Panel
Panel Options

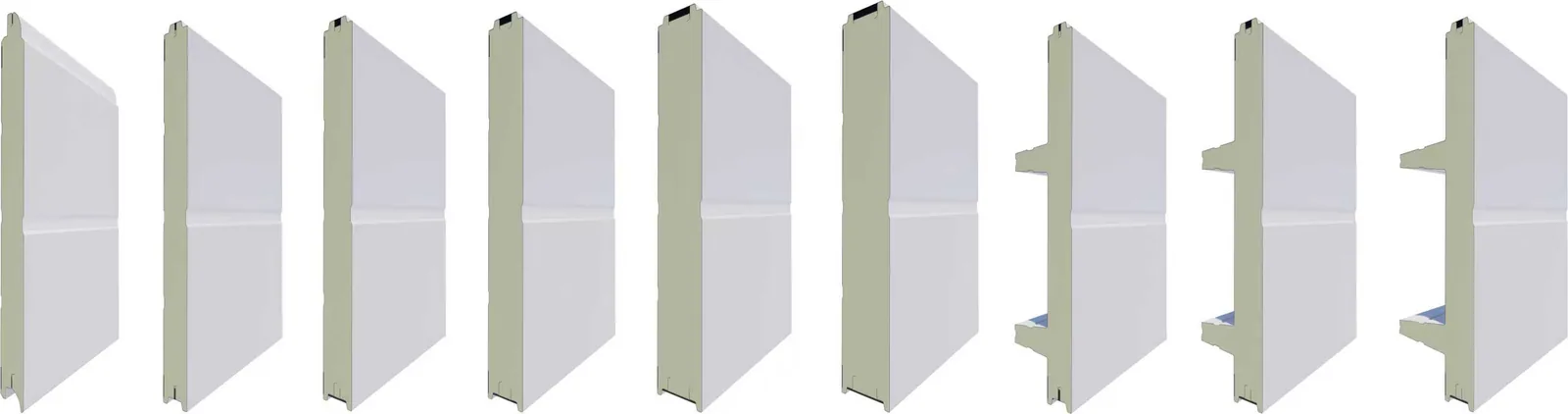

| 0.43 mm PPGI + PU Foam | Profiles 40 / 42 / 50 / 60 / 75 / 80 / 4365 / 5065 / 5095 |
|---|---|
| 0.6 mm Aluminum Alloy + PU Foam | Profiles 40 / 42 / 50 / 60 / 75 / 80 / 4365 / 5065 / 5095 |
Door Operators
Full specifications in the table below.
C25
25 N·m · cable 3 m
C40
40 N·m · cable 5 m
C60
60 N·m · cable 6 m
C90
90 N·m · cable 9 m
C120
120 N·m · cable 9 m
C500
500 N·m · cable 9 m
Control System Options
C25/40/60/90/120/500
One control-box design covers the C25/40/60/90/120/500 operators.
Safety Device Options
Photoelectric Safety Sensor
Infrared Safety Light Curtain

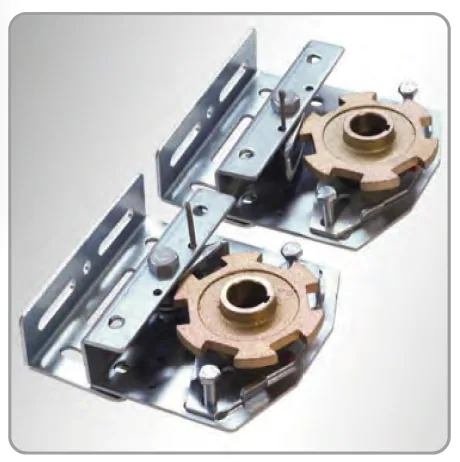

Torsion Spring Break Protection Device
Standard configuration

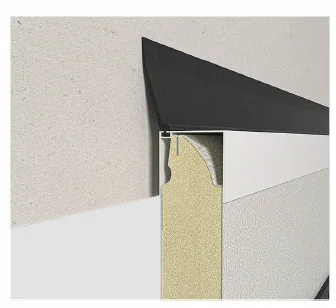

Top Seal

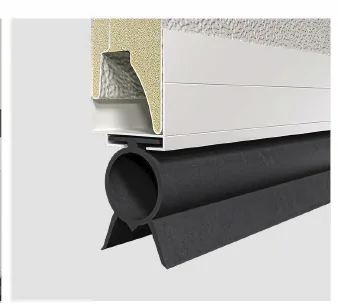

Bottom Seal

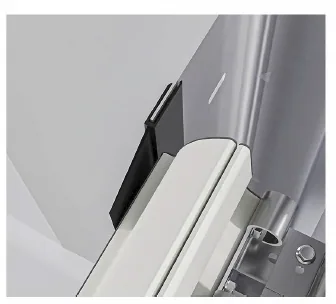

Side Seal

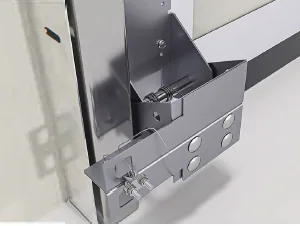

Cable Break Safety Device
Galvanized Hinge
Reinforced Shaft Bracket
Aluminum Alloy Cable Drum
Reinforced Roller Bracket
Wireless Safety Edge
Frequently Asked Questions
- What is the maximum size of the industrial sectional door?
- Up to 8,000 mm wide and 10,000 mm high (side mount).
- Which lift types can be chosen?

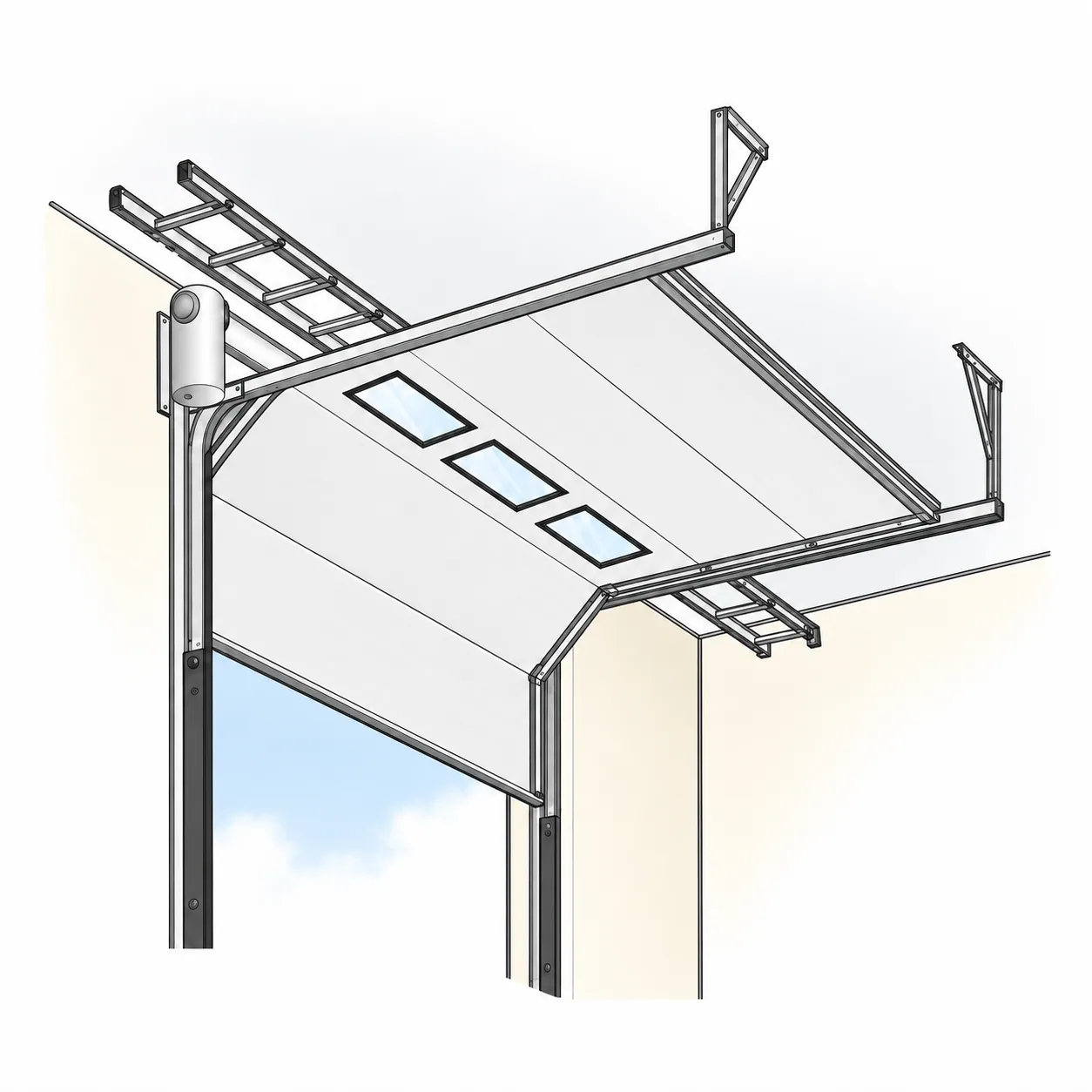

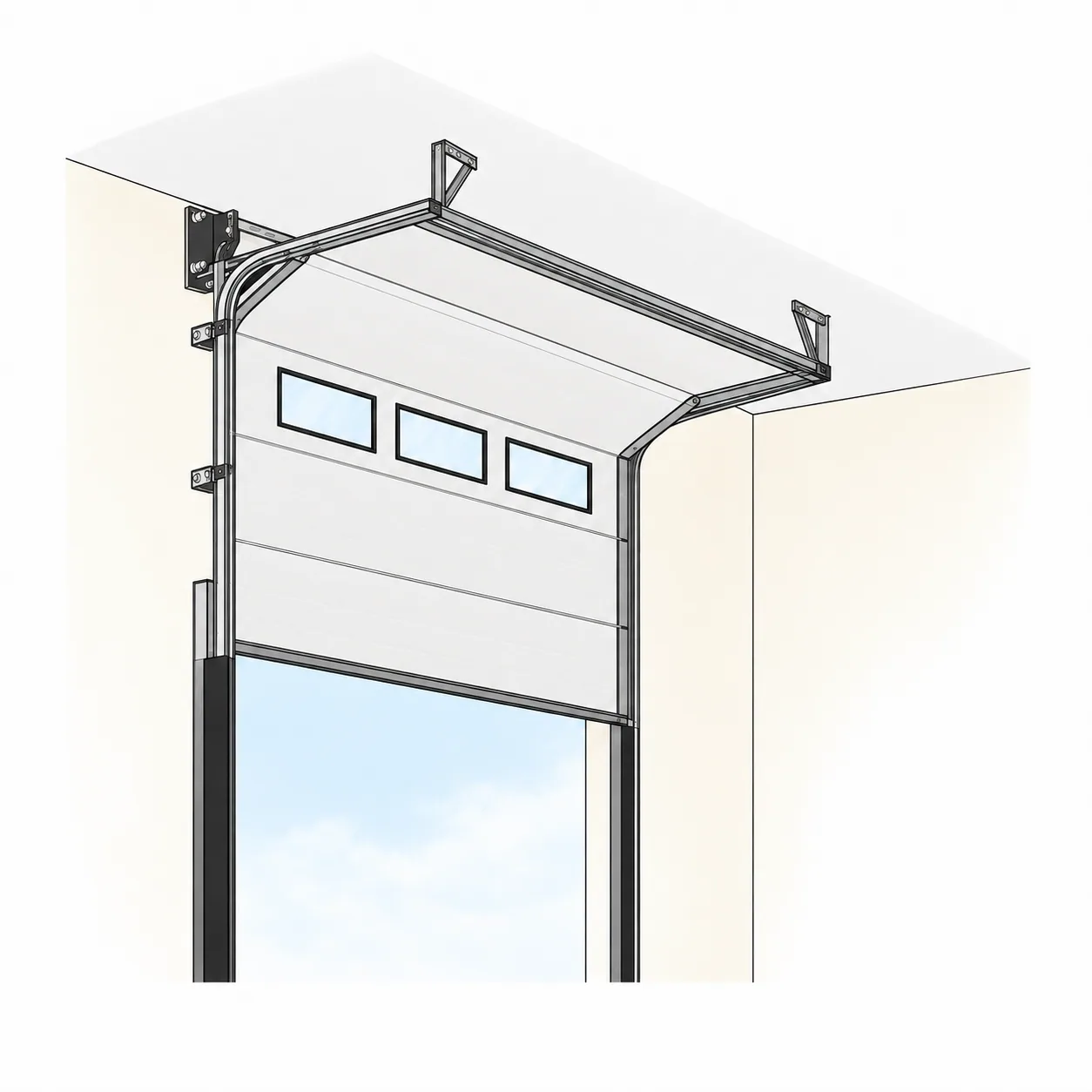

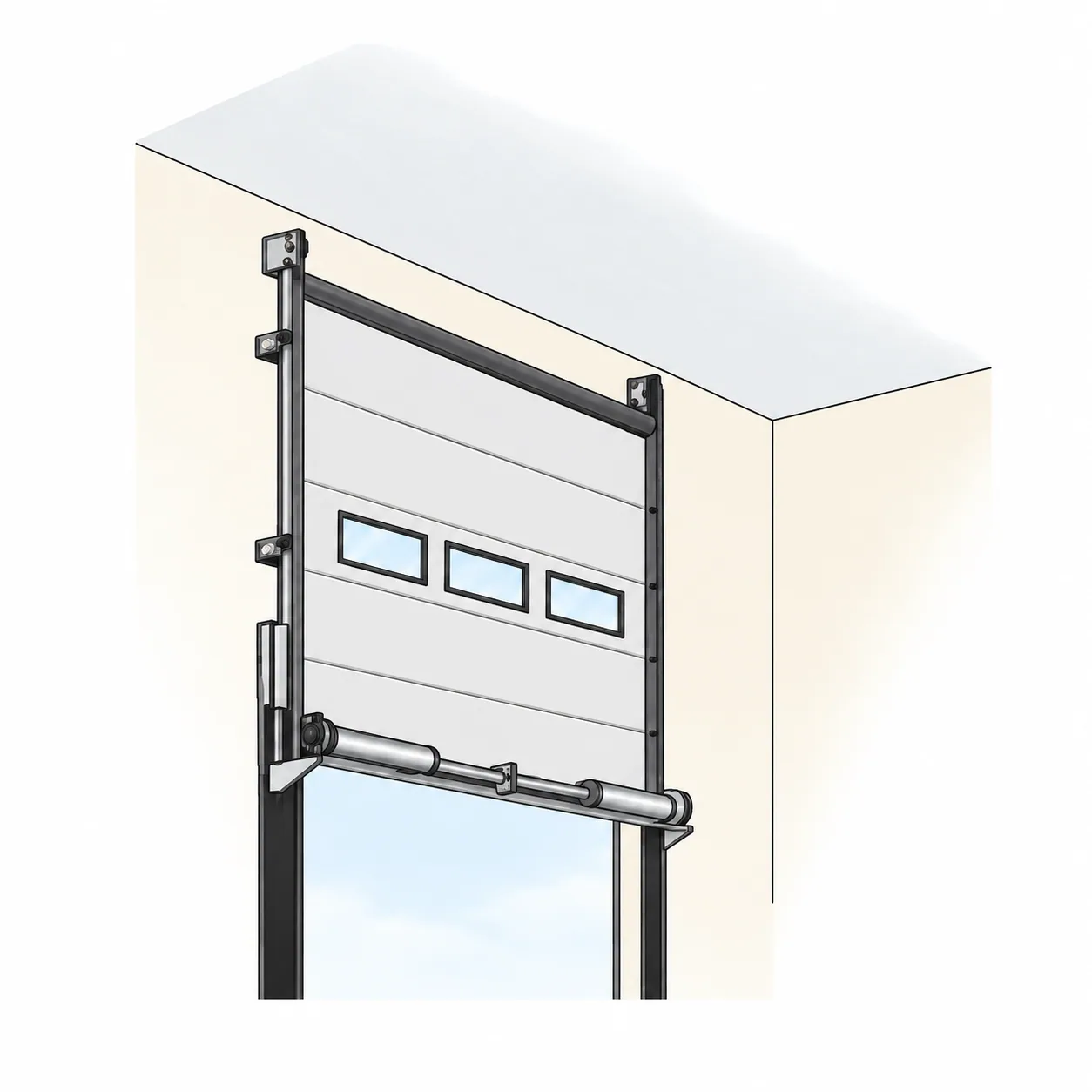

- Standard lift, high lift and vertical lift, selected according to the headroom and pipeline layout of the building.
- How energy-efficient and airtight is the door?
- Panels are filled with polyurethane foam; thermal transmittance is 0.5–1.2 W/(m²·K), air permeability class 3–4 and watertightness class 2–3, with EPDM seals at the top, sides and bottom.
- What is the design service life of the door system and torsion springs?
- Design service life is at least 100,000 cycles for the door system and at least 30,000 cycles for the torsion springs, which are made of 82B high-carbon steel with hot-dip galvanizing.
